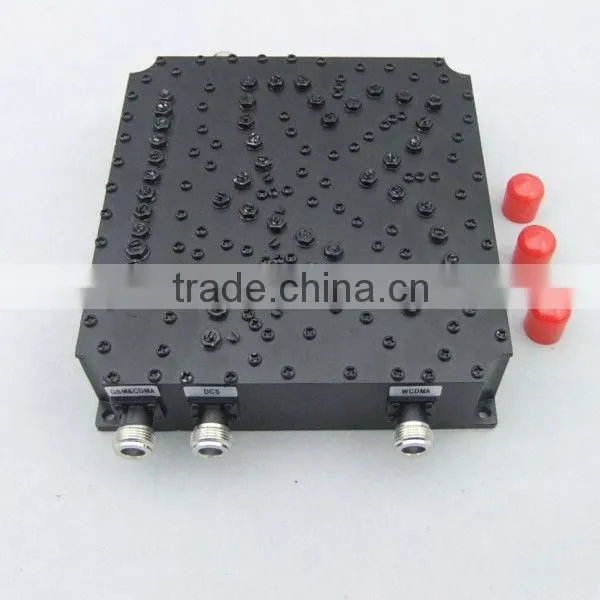

(GSM/CDMA890-960 DCS/3G 1710-2170 LTE 2525-2690) LTE Combiner Triplexer

Name: (GSM/CDMA890-960 DCS/3G 1710-2170 LTE 2525-2690) LTE Combiner Triplexer
Brand: SETSAIL
SKU: 132977015
Availability: InStock

US$ 1 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

SETSAIL

Model Number:

YFTX-RF-01-NF

Hefei Setsail Telecom Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name SETSAIL

Model Number YFTX-RF-01-NF

Specifications

We are manufacturer and OEM
1.Low Insertion Loss
2.Low VSWR
3.Short Lead Time and Fast Delievery
4.Competitive Price

Applications: (GSM/CDMA890-960 DCS/3G 1710-2170 LTE 2525-2690) LTE Combiner Triplexer

1. Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems.

Technical Specifications

Product Name	Triplexer		Code	90040019
Product Type	YFTX-RF-01-NF
Port Name	GSM	DCS	UMTS
Frequency(MHz)	885-960	1710-2170	2525-2690
Insertion loss(dB)	≤ 0.3dB	≤ 0.55dB	≤ 0.55dB
Ripple in-band(dB)	≤0.2dB	≤0.4dB	≤ 0.4dB
Stop-band Attenuation(dB)	≥80@1710-1880MHZ ≥80@1920-2170MHZ	≥80@885-960MHZ ≥80@1920-2170MHZ	≥80@885-960MHZ ≥80@1920-2170MHZ
VSWR	≤1.3
Impedance(ohm)	50 Ω
Third-order intermodulation(dBc)	≤-120dBc 2×43dBm
Power Rating(w)	100W
Connector	N female
Temperature	-40deg ~ +85deg
Color	Black paint
Size(mm)	224mm×146mm×40mm(Without tuning screws,connector)
