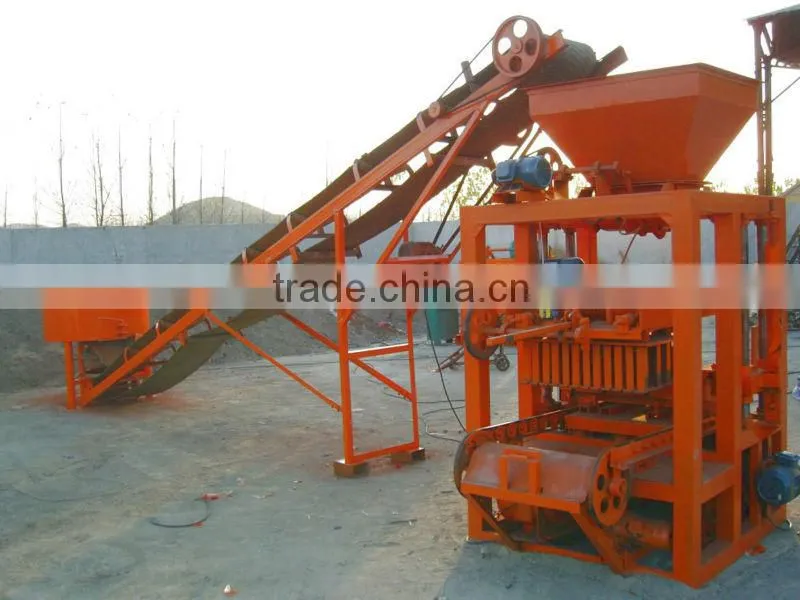

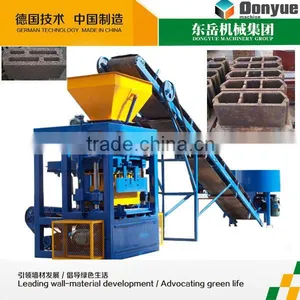

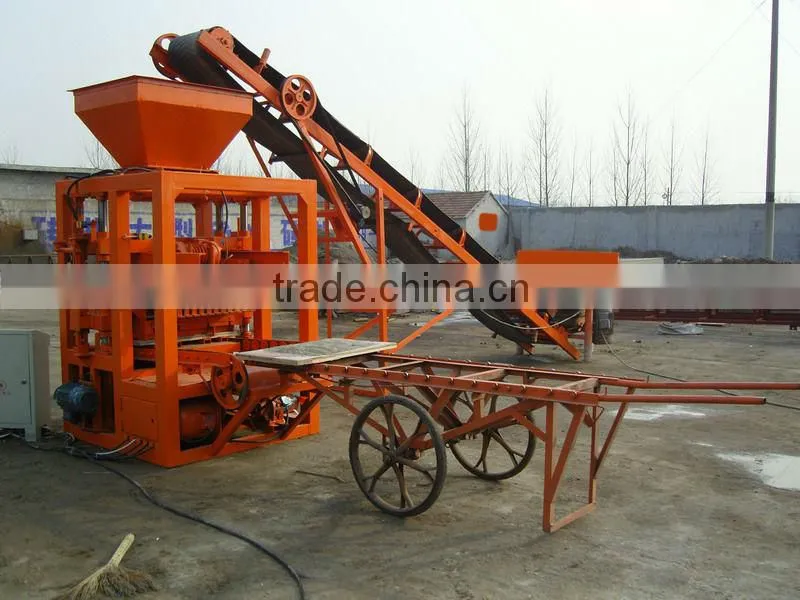

brick machine fired clay brick making machine
- 300 Set / Sets per Month
- Qingdao
- T/T
- Hand press block making machine QTJ4-50
- QTY10-15 ecological concrete bricks making machine
- QTJ5-20 hollow bricks machine indian price
- QTJ5-20 hollow brick machine,interlocking brick machine price
- QTY10-15 hydraulic full automatic brick making machine for India
- QTJ5-20 hollow brick machine,eco brick making machine
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Other, concrete or fly ash |
Processing: | Brick Molding Machine | Method: | Other, electricity pressure | Automatic: | No |
Capacity: | 3000-7000 blocks/ 8 hours | Place of Origin: | Shandong, China | Brand Name: | dongyue |
Model Number: | QT4-24 | Voltage: | 220V 380V 415V, 220/240/380/440V | Power: | 13.4KW |
Dimension(L*W*H): | 2060*1730*2580mm | Certification: | ISO9001 CE SGS | Warranty: | oneyear |
After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.ISO9001,good quality2.table & mold vibration
3.PLC-Germany Siemens
4.hydraulic-high pressure
5.various high density
(1) brick machine fired clay brick making machine advantages
1.Low cost:The whole line price is 7500USD.
2.Easy operation:QT4-24 does not need engineer to install the machine,After assembling belt conveyor and connectin with power,you can use it direclty
3.Labor saving:QT4-24 needs one person to operate mixer,one peron to operate brick machine,two person to transport the block.
4.Space saving:QT4-24 occupy 60m2 workshop only.It does not have requests for brick storage area.

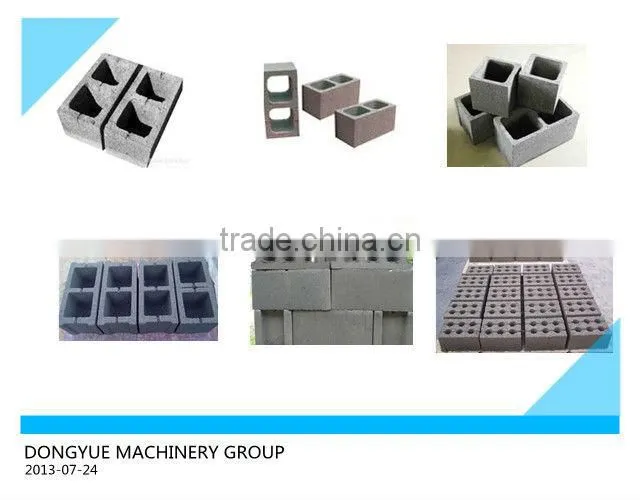

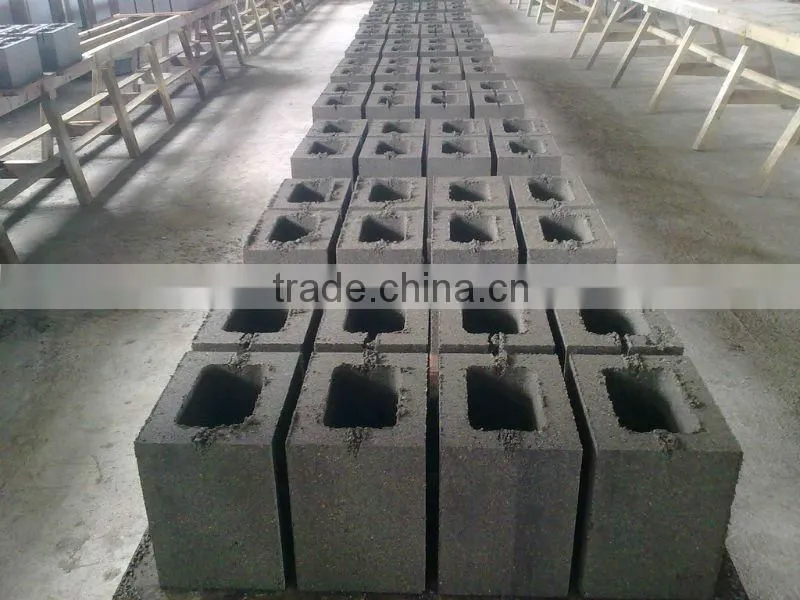

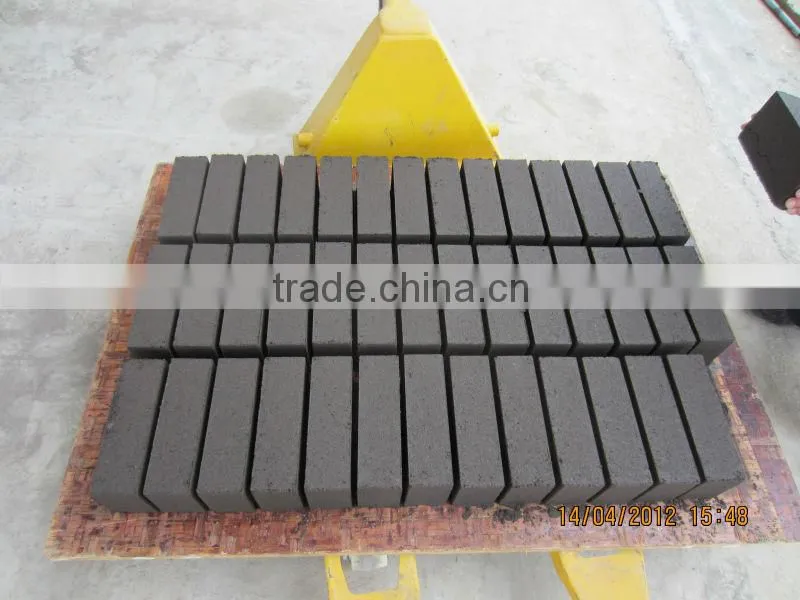

5.Muti function:QT4-24 can make hollow block,solid brick by changing molds.The block brick sizes are customzied.
1. brick machine fired clay brick making machine for sale
Overall size | 2060×1730×1850mm | Host machine power | 13.45KW |
Molding period | 30S | Vibration force | 35.5KN |
Pallet Size | 850×550×25mm | Pallet quantity | 600pcs |
Weight | 3T | Mixer model | JD350 |
Voltage | According to local condition |
Theoretical workshop area : 60m2 , need about 3-4workers .the office , curing area and stacking area to arrange according your fact status.
2. The production of brick machine fired clay brick making machine
QT4-24 Production capacity | |||
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 7 | 630-840 | 5040-6720 |
400X150X200 | 5 | 450-600 | 3600-4800 |
400X200X200 | 4 | 360-450 | 2880-3600 |
400X250X200 | 3 | 270-360 | 2160-2880 |
240x115x53 | 24 | 2160 | 17280 |
225x112.5x60 | 10 | 900 | 7200 |
we can design molds according to your requests |
Capacity Mentioned is indicative only actual capacity varies with operator efficiency and material quality etc

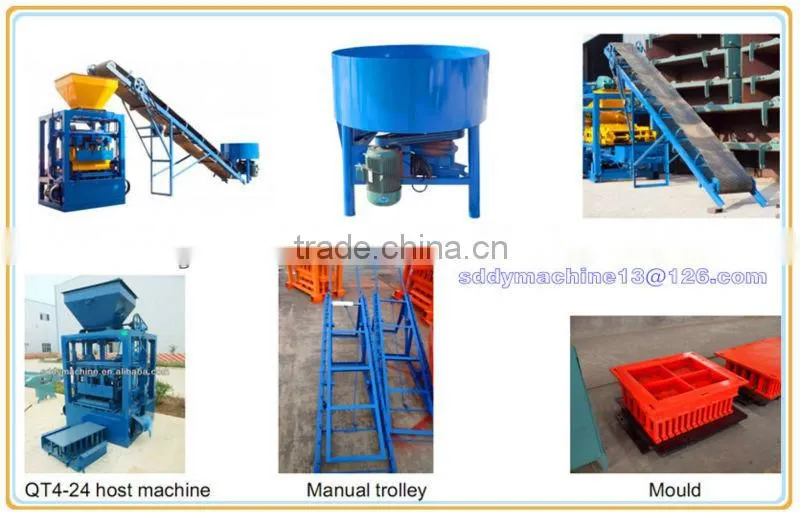

3. brick machine fired clay brick making machine equipment list
No. | Item
| Quantity | |
Batching system | |||
01 | JD350 Mixer(Φ1.2M) | 1set | |
02 | Belt conveyor | 1set | |
Block machine parts | |||
01 | QT4-24 Block making machine | 1set | |
02 | Electrical control unit | 1set | |
03 | Block mold | 1set | |
04 | Manuel trolley | 2sets | |
05 | Some spares and tools | 1set |
4. brick machine fired clay brick making machine power list
No. | Item | Power(KW) | |
1 | JD350 Mixer | 7.5 | |
2 | Belt conveyor | 1.1 | |
3 | QT4-24 Host machine | Feeding motor | 0.75 |
|
| Pallet conveyor motor | 0.75 |
|
| Upper mould vibration motor | 2.2 |
|
| Down mould vibration motors(2sets) | 3*2 |
|
| Push&Pull mould motor | 0.75 |
|
| Elevation motor | 3 |
Total power consumption | 22.05KW |
5 fly ash bricks machine manufacturing in india
A) Client needs build a 50--60m3 workshop.Height:3.5M at least
B) Client needs arrange 600--700pcs pallets.Wooden pallet/bamboo pallet/rubber pallet are all accepted.If wooden or bamboo pallet,20mm thickness is enough.

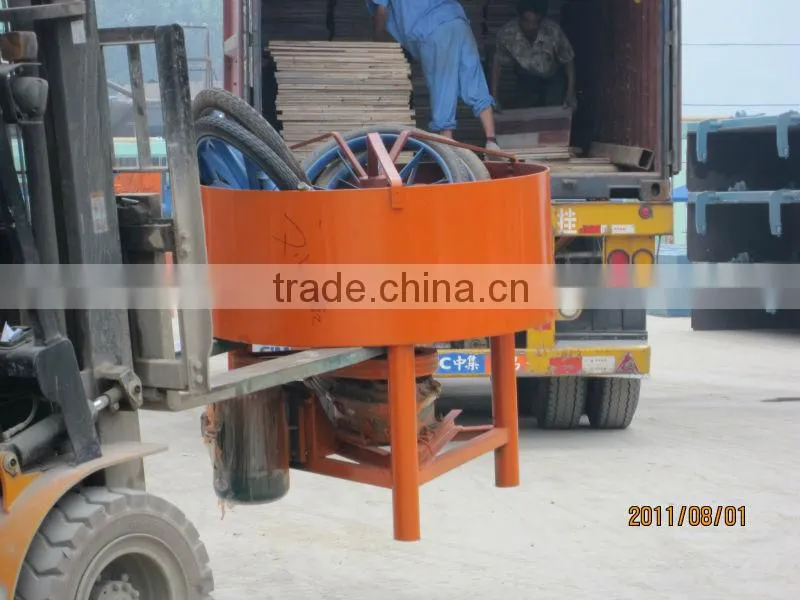

Transport of brick machine fired clay brick making machine
