block stone and paving stone making machine qt4-15 dongyue machinery group

Specifications

Germany technology made in China
Full auotmatic line
High efficiency
CE,SGS,ISO,BV
SIEMENSor ABB motor ,SCHNEIDER switch

block stone and paving stone making machine qt4-15 dongyue machinery group



1.Techinical Parameter of block stone and paving stone making machine qt4-15 dongyue machinery group :



Dimension of host machine	3500×2220×2850mm	Host machine power	45.38KW
Moulding area	1025×810mm	Vibration force	100KN
Moulding period	15-25S	Mixer model	JS750
The size of the pallet	1350×900×30mm	General water Consumption	12T/every day
Weight of the host machine	14T
Voltage	Adapt to your local voltage



2. production Capacity of block stone and paving stone making machine qt4-15 dongyue machinery group :

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	20	3000-3600	24000-28800
400X150X200	14	2100-2520	16800-20160
400X200X200	10	1500-1800	12000-14400
400X250X200	8	1200	9600
Paver:200X100X60	35	5250	42000
Paver:200X165X60	20	3000	24000

3.Material proportion of block stone and paving stone making machine qt4-15 dongyue machinery group :

1. 8-10% cement, 30-40 % sand , 50-60% crushed stone.

 2. 8-10% cement, 30% flyash, 60% sand or stone powder

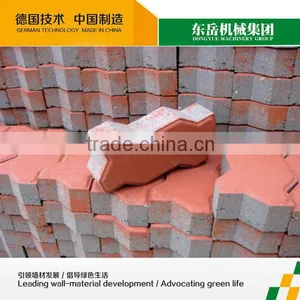

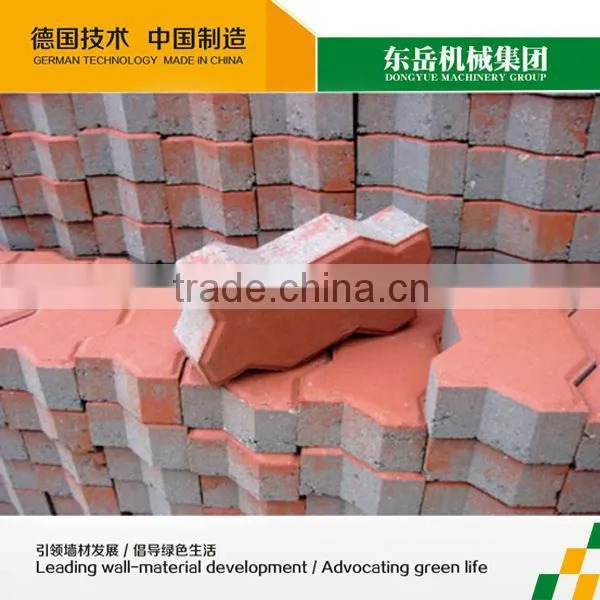

4. Block catalogue of block stone and paving stone making machine qt4-15 dongyue machinery group :



















































































5.Mchine photo of block stone and paving stone making machine qt4-15 dongyue machinery group :





6.Certificates of block stone and paving stone making machine qt4-15 dongyue machinery group :





 7. company views:





....
