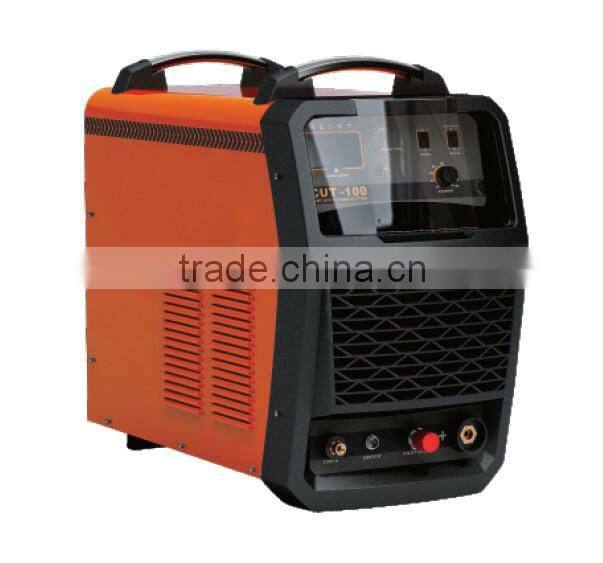

CE ! Hot Sale IGBT Inverter DC Air Plasma Cutter 100amp Air Plasma Cutting Machine Manufacturer

FOB Price

US$ 98 - 310.5 / Set

1 Set(Min. Order)

Port Ningbo/Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	ANDELI Or OEM	Model Number	CUT 100*
Arc Current	30-100A	Pulse Frequency	50/60HZ
Pilot Arc Current	23A	Rated Duty Cycle	60%
Motor Type	DC Motor	Dimensions	645x335x576MM
Usage	DC Air Plasma for Aluminum,Copper and etc	Voltage	three phase AC380 ±15%
Power(W)	15KVA	Certification	CE,CCC,ISO9001
Warranty	2 Years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CE ! Hot Sale IGBT Inverter DC Air Plasma Cutter 100amp air plasma cutting machine Manufacturer

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……

Application:

1. IGBT soft-switch technology,more stable performance

2. High duty cycle result in less power consumption

3. More economical and effcient than the traditional cutting machine due to the high speed,high temperature and high energy plasma draught

4. Adjustable output current to satisfy the cutting demands based on different kinds of material and thickness of working plate

5. Small and smooth cutting seam,little transmutation

6. Built-in over-heat protection,over-voltage protection,under voltage protection and lack of compressed air pressure protection

Specification:

Inverter DC Air Plasma Cutter
Model	CUT-100	CUT-120	CUT-160	CUT-200
Type	IGBT Module
Rated input voltage (V)	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input capacity (KVA)	15	18	30	41
Rated input current (A)	23	27	45	62
No-load voltage (V)	380	280	380	380
Output current (A)	30-100	30-120	40-160	40-200
Rated working voltage (V)	120	128	144	160
Duty cycle (%)	60	60	60	60
No-load loss (W)	100	100	100	100
Efficiency (%)	85	85	85	85
Power factor	0.93	0.93	0.93	0.93
Net weight (KG)	40.3	40.3	56.9	59
Gross weight (KG)	48.2	48.6	74	77
Packing	carton	carton	wooden	wooden
Dimension of machine (mm)	645×335×576	645×335×576	700×360×638	700×360×638
Dimension of packing (mm)	700×390×660	700×390×660	760×450×735	760×450×735
Method of arc start	uncontact	uncontact	uncontact	uncontact
	steel: 1-30	steel: 1-35	steel: 1-40	steel: 1-60
Optimum thickness of work piece (mm)	steel: 1-25	steel: 1-30	steel: 1-35	steel: 1-50
Optimum thickness of work piece (mm)	aluminum/copper: 1-12	aluminum/copper: 1-15	aluminum/copper: 1-17	aluminum/copper: 1-25
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, gas hose×0.6meter, hose hoop×2pcs, cutting torch×1pcs

Using Process:

Achievements:

* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 24 MONTHS WARRANTY.

The data in the above table is only for reference. Please subject to the nameplate on the device..
