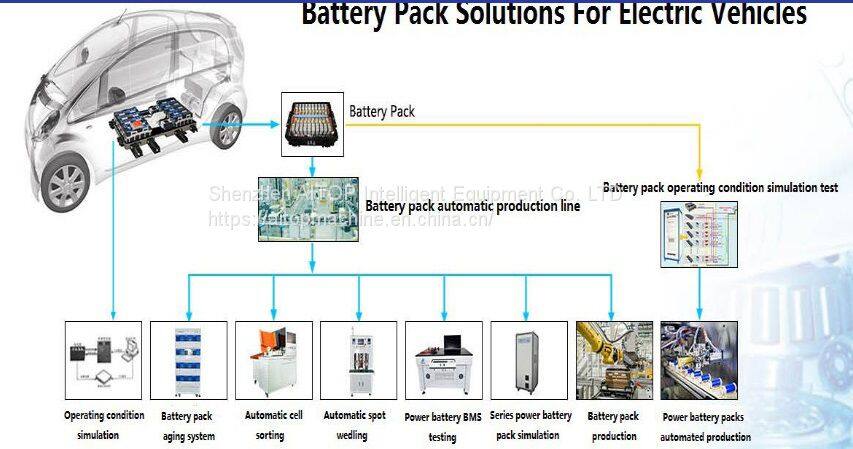

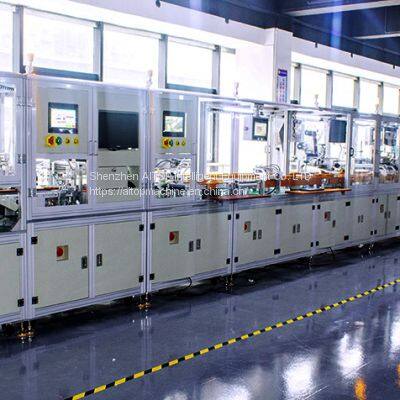

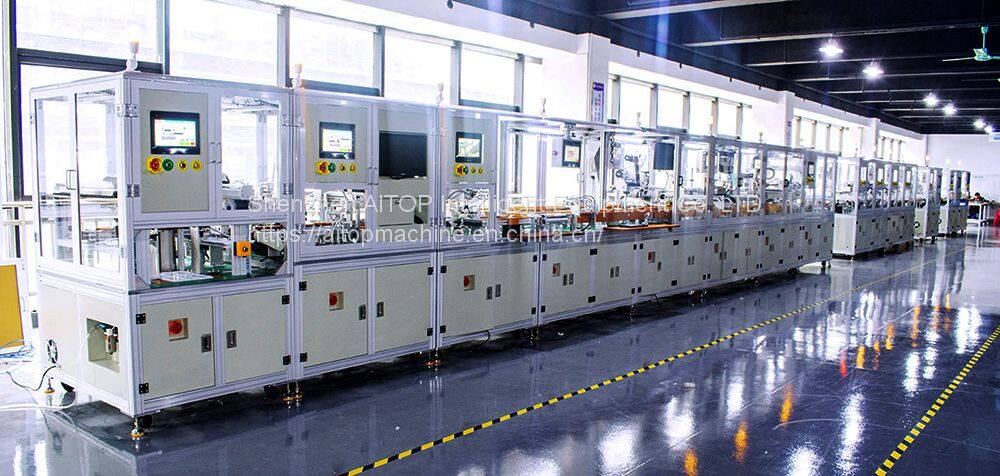

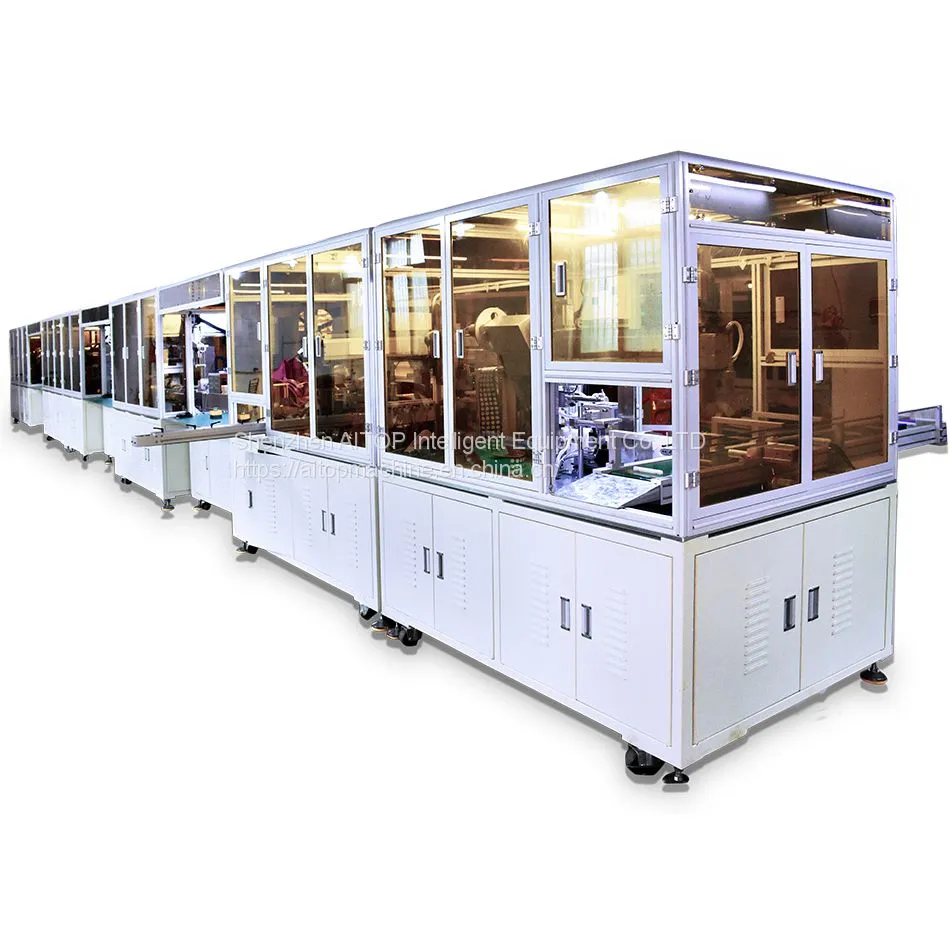

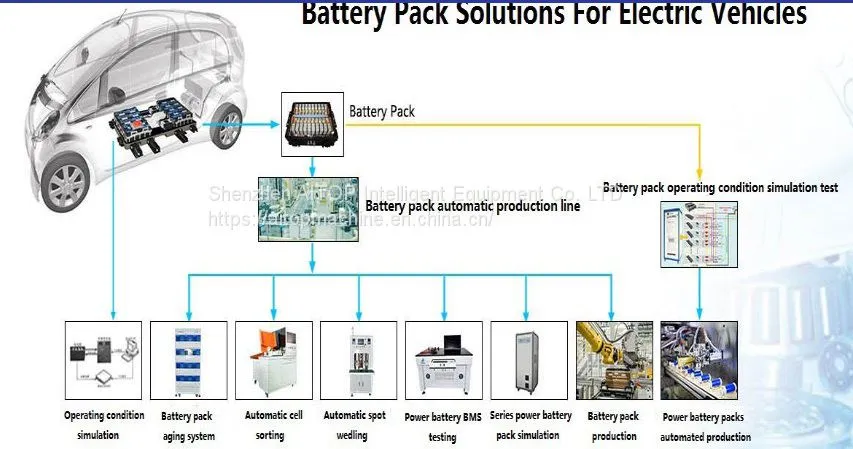

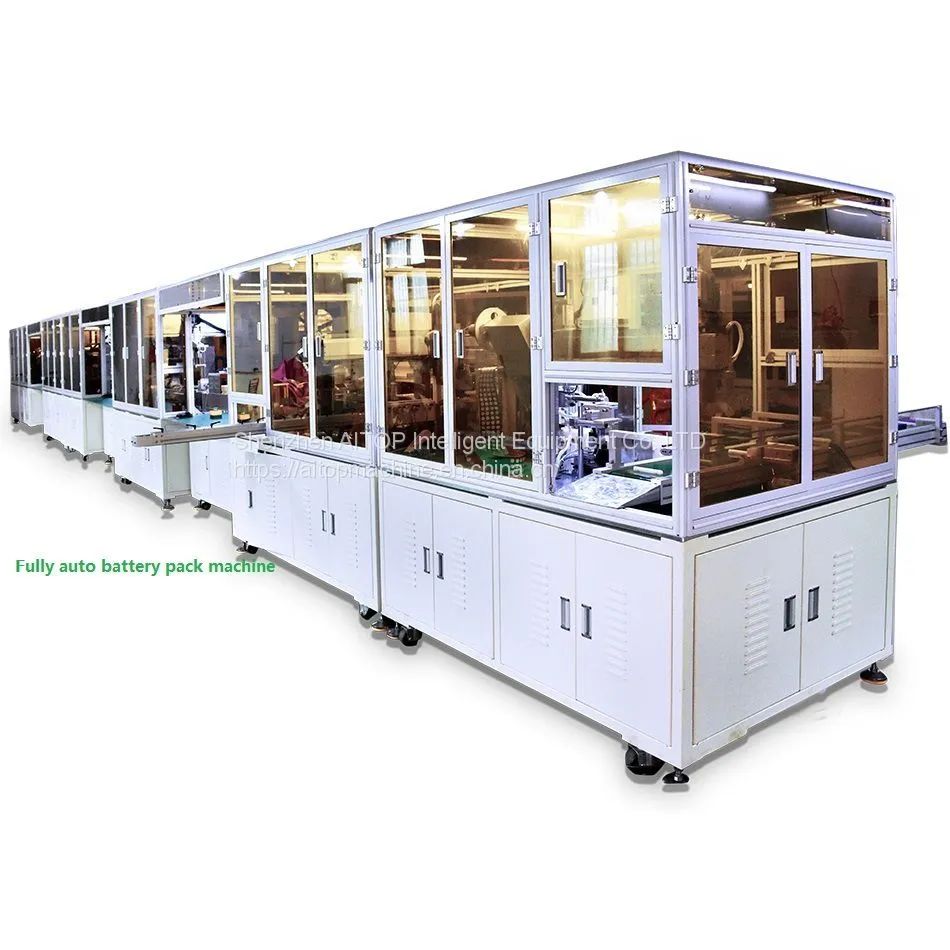

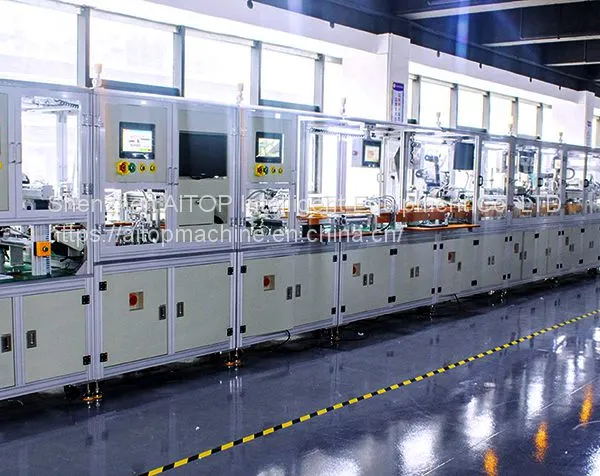

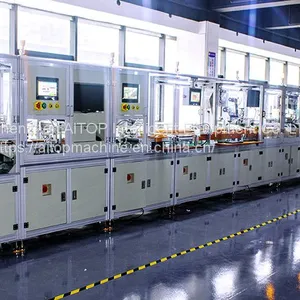

Battery pack full automation production line for 18650/26650/21700/32650 Electric vehicle/tools battery
Applied to automobile battery.
Electric vehicle batteries,
Energy storage battery,
Electric tool batteries,
Digital 3C batteries and other fields
| Basic parameters | |
| Power supply : | 220V/380V 50HZ |
| Power consumption: | 45KW |
| Air pressure: | 0.5-0.6 Mpa |
| Utilization Rate: | 85% |
| Capecity: | 5000--5500PCS/Hour |
| Ambient Temperature: | －10℃～35℃,Relative Humidity 30%～95 |
Important parts & brands
| No. | Standard parts category | Function and brand restriction description | Note | No. | Standard parts category | Function and brand restriction description | Note |
| 1 | Frame | Surface paint treatment | 12 | Stepper motor | LEADSHINE | ||
| 2 | Slabs | 45# steel material surface electroplating treatment, 18mm thickness is required | 13 | servo motor | Panasonic/Inovance | ||
| 3 | Machining parts | Sandblasting and oxidation treatment on the surface of aluminum parts, electroplating treatment on iron parts | 14 | Pneumatic components | AirTAC | ||
| 4 | Man-machine | Weinview 10 inch (with network port) | 15 | Electromagnetic valve | AirTAC | ||
| 5 | PLC | Omron reserves 10% port (support Ethernet port) | 16 | Air source treatment combination | AirTAC | ||
| 6 | Power supply | MEAN WELL | 17 | Bearing or linear bearing | HIWIN | ||
| 7 | Sensor | Panasonic, Omron | 18 | Slideway | HIWIN,THK BRAND | ||
| 8 | Electric control accessories | CHNT/DELIXI | 19 | Structural standard parts | Yiheda | ||
| 9 | Contactor | CHNT/DELIXI | 21 | Testing instrument | Japan Hioki 3561 | ||
| 10 | Button | YIJIA,APT | 22 | Welder | Miyachi/Union | ||
| 11 | Ordinary motor | JSCC | 23 | Scan code gun | Honeywell/KEYENCE |
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Current | 4000A | 5000A | 8000A |
Input Power | AC 220V±10% , 50Hz±2Hz | AC 380V±10%, 50Hz±2Hz | AC 380V±10% , 50Hz±2Hz |
Rated capacity | 20KVA | 25KVA | 35KVA |
Maximum output short circuit current | 4000A | 5000A | 8000A |
Output current range | 800-4000A | 800-5000A | 500-8000A |
Output voltage | 12V | 10V | 10V |
Inverter frequency | 4KHz | 4KHz | 4KHz |
Welding time | 1.0ms—99.0ms adjustable,accuracy:0.1ms | 1.0ms—99.0ms adjustable,accuracy:0.1ms | 1.0ms—99.0ms adjustable,accuracy: 0.1ms |
Welding pulse section | 2 | 2 | 3 |
Welding cycle period | 1 | 1 | 11 |
Working table size | 600mm*800mm | 600mm*800mm | 600mm*800mm |
Welding range | 580mm*580mm | 580mm*580mm | 580mm*580mm |
Adjustable height range of welding head | 10-150mm | 10-150mm | 10-150mm |
Welding needle specification | 1.5mm-3mm/6mm optional | 1.5mm-3mm/6mm optional | 1.5mm-3mm/6mm optional |
Adjustable distance between welding needles | 0-10mm | 0-10mm | 0-10mm |
Adjustable stroke of cylinder | 5-30mm | 5-30mm | 5-30mm |
Specification of secondary discharge cable | 95mm² | 95mm² | 95mm² |
Cable length | 500mm | 500mm | 500mm |
Adjustable range of welding head pressure | 1-5kg | 1-5kg | 1-5kg |
Welding speed | 0.5-0.8/point | 0.5-0.8s/point | 0.5-0.8s/point |
Plane double needle welding thickness | 0.08-0.2mm plated nickel/pure nickel | 0.08-0.25mm plated nickel/pure nickel | 0.08-0.3mm plated nickel/pure nickel |
Welding thickness of convex point and flat needle | 0.15-0.25mm plated nickel/pure nickel | 0.15-0.3mm plated nickel/pure nickel | 0.2-0.5mm plated nickel/pure nickel |
Number of settable specifications | 8 | 8 | 99 |
Display | LED | LED | TFT 800X480 Capacitive touch screen |
Over limit alarm setting mode | Current setting | Current setting | Current setting + current wave monitoring |
Welding mode | Single welding | Single welding | Single or double welding |
control mode | PWM | PWM | PWM |
Control way | 1200V 200A IGBT | 1200V 200A IGBT | 1200V 300A IGBT |
Control mode | Constant current | Constant current | Constant current and constant voltage |
Cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Weight | 35KG | 35KG | 40KG |
Weight of main machine | 430L*185W*280H mm | 430L*185W*280H mm | 455L*205W*315H mm |
Transformer size | 265L*180W*255H mm | 265L*180W*255H mm | 475L*200W*290H mm |
Whole main size | 800Lx600Wx1200H mm | 800Lx600Wx1200H mm | 800Lx600Wx1200H mm |
Welding application | Battery connection piece, hardware sheet, wire harness, terminal block, etc | Battery connection piece, hardware sheet, wire harness, terminal block, etc | Battery connection piece, hardware sheet, wire harness, terminal block, etc |
