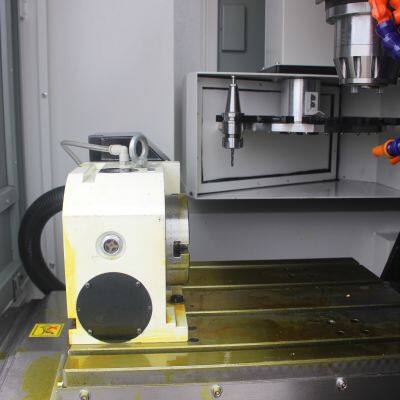

MX400 Small Drilling & Milling Center Small CNC Milling | CNC Milling Machine of 4-axis | Small CNC Machines For Workshop
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yornew
Place of Origin:
China
Model Number:
MX400
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MX400 Small Drilling & Milling CenterNegotiableMOQ: 1 Set -
Education CNC Machine Small CNC Machine Center Mini CNC Machining Center, Desktop Center, CNC Milling Machine With ATCNegotiableMOQ: 1 Set
-
Education CNC Machine Small CNC Machine Center Mini CNC Machining Center, Desktop Center, CNC Milling Machine With ATCNegotiableMOQ: 1 Set
-
MX400 Small Machine Center Small CNC Milling | CNC Milling Machine of 4-axis | Small CNC Machines For WorkshopNegotiableMOQ: 1 Set
-
Metal Working CNC, MX400 Small Machine Center, | CNC Milling Machine of 4-axis | Small CNC Machines For WorkshopNegotiableMOQ: 1 Set
Brand Name
Yornew
Place of Origin
China
Model Number
MX400
Type
Vertical
After-sales Service Provided
No overseas service provided
Weight
2000kg
Dimension(L*W*H)
1550*1350*2200mm
Voltage
3 Phase 380V
Condition
New
Spindle type | Mechanical | High-speed | ||
Max Spindle Speed | rpm | 6000 | 24000 | |
Spindle Power | Kw | 2.6 | 3 | 4.5 |
Spindle Taper | BT30 | |||
Repeat positioning accuracy | mm | ±0.01 | ||
X Axis Travel | mm | 400 | ||
Y Axis Travel | mm | 500 | ||
Z Axis Travel | mm | 200 | ||
Motor Power(X/Y) | Kw | 0.75 AC Servo | ||
Motor Power(Z) | Kw | 1.2 AC Servo | ||
Rapid feed rate(X/Y) | Mm/min | 35000 | ||
Rapid feed rate(Z) | Mm/min | 25000 | ||
Cutting feed rate | Mm/min | 10000 | ||
ATC tool number | 8 | |||
Pneumatic supply | MPa | 0.6 | ||
Collet chuck | ER25 | |||
Tool DIA. range | mm | 1-16 | ||
Transmission | Taiwan P grade Ball Screw | |||
Guide rail | Taiwan High-precision C3 linear guide rail | |||
Table size | mm | 400*500 | ||
Max. Load | Kg | 200 | ||
Power supply | 3 phase 380V | |||
Weight | kg | 2000/2100 | ||
Machine Size | Mm | 1400*1100*2000 | ||
Packing Size | Mm | 1550*1350*2250 | ||
4th axis (optional) | Mm | Φ125 | Φ170 | |
