Specifications
igbt pulse ac/dc tig welder1. AC DC Tig welder
2. Digital welding machine
3. IGBT control welding machine

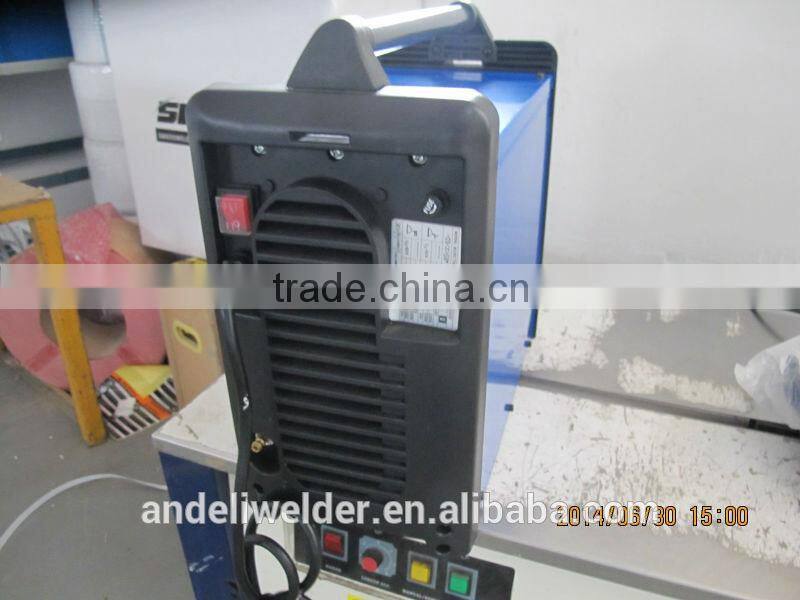

ANDELI AC/DC Pulse TIG Welder for sale
IGBT INVERTER AC/DC TIG+MMA 1PH 220V
1.IGBT advanced double inverter technology
2. Single phase power supply
3. Light Weight
4.HF arc start for TIG ,ARC force for MMA
5.2T/4T and pulse control function for TIG
6.AC/DC pulse TIG suitable for steel ,stainless steel ,aluminum
7.Digital display and current preset adjusting
8.Can be with foot pedal
9. 9 Memory deposit
10. low sound fan ,no interference to the home applyance
| Model | AC/DC 170 | AC/DC TIG 200 | AC/DC TIG 210 | |||
| Power Supply Voltage | 1x220/230/240V | |||||
| Frequency | 50/60 | |||||
| TIG | MMA | TIG | MMA | TIG | MMA | |
| Rated Input Power(kw) | 3.3 | 5.4 | 4.5 | 7 | 5 | 7.2 |
| Rated input Current(A) | 22 | 35.3 | 30.1 | 46.8 | 5-200A | 5-210A |
| Duty cycle (40°C,10min) | AC35% 170A | DC 35% 160A | AC 35% 200A | DC 35% 160A | AC35% 210A | DC 35% 160 |
| AC 60% 150A | DC 60% 110A | AC 60% 150A | DC 60% 110A | AC 60% 150A | DC 60% 110A | |
| AC 100% 120A | DC 100% 90A | AC 100% 120A | DC 100% 90A | AC 100% 120A | DC 100% 90A | |
| No load voltage (V) | 66 | |||||
| Start/welding/crater current Range (A) | AC 10-170 ;DC 5-170 | AC 10-200 ;DC 5-200 | AC 10-210 ;DC 5-210 | |||
| Up Slope/down Slope Flow(S) | 0-10S | |||||
| Pre/post Flow(S) | 0.1-9.9/0.5-25 | |||||
| Power factor | 0.75 | |||||
| Clearance Effect(AC TIG) % | -35/+35 | |||||
| Pulse Frequency(hz) | 0.5-250 | |||||
| AC frequency (Hz) | 0.5-200 | |||||
| Pulse width Range(%) | 20-80 | |||||
| Net Weight (Kg) | 17 | 17 | 17 | |||
| Dimension(mm) | 500x230x450 | |||||
| Protection Class | IP 23 | |||||
| Insulation Class | F | |||||
Why not try one sample first?Choosing our products,give yourself maximum profit. Inquires are typically answered within 24 hours.
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
Package&Shiping

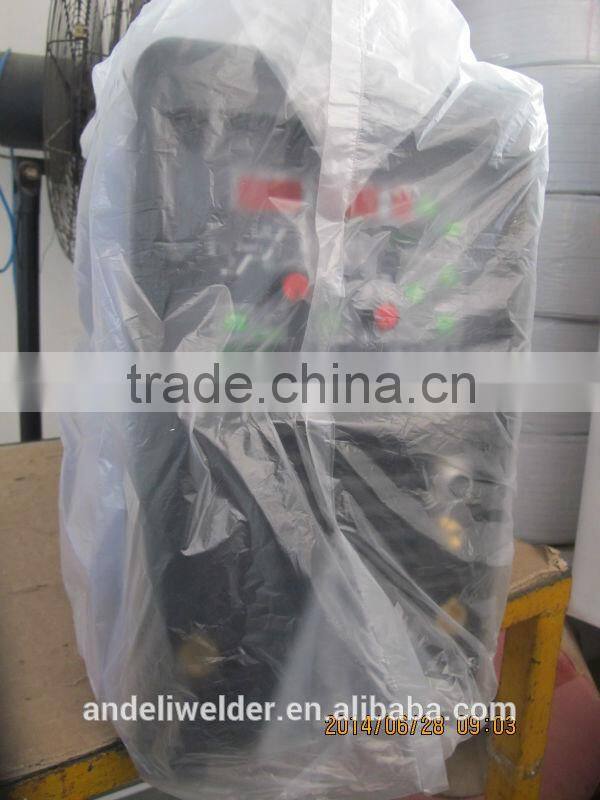

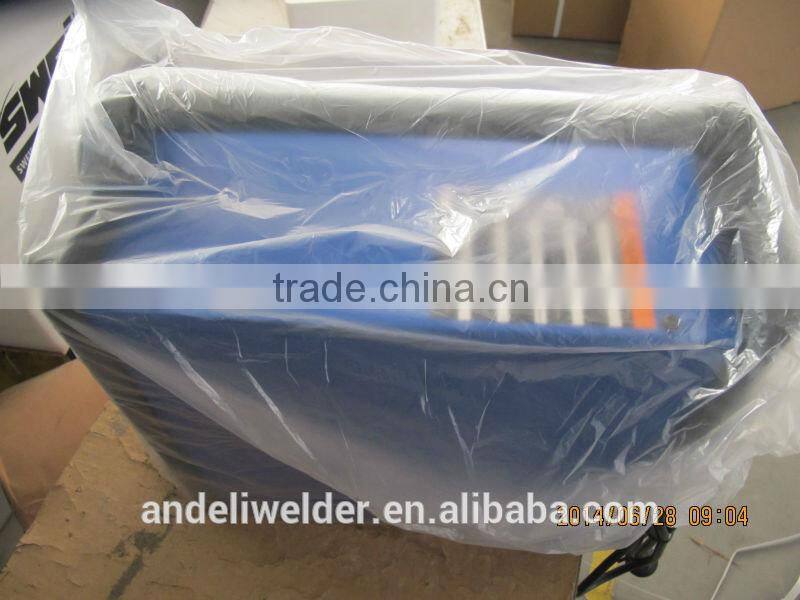

Usually the machines are packed by carton.Big welding machines are packed in wooden box .
- OEM is available
- Deliver time:If there have stock,we will delivery the goods 3-7 work days after received payment. Otherwise,we will delivery it 25-30 work days after received payment.
- Payment:we can accept T/T,Western Union,L/C,Aliexpress Escrow
- Gurantee and aftersale servieces:
- 1 years warranty for all items
- 1%-2% Free spare parts will be provided for repairment.

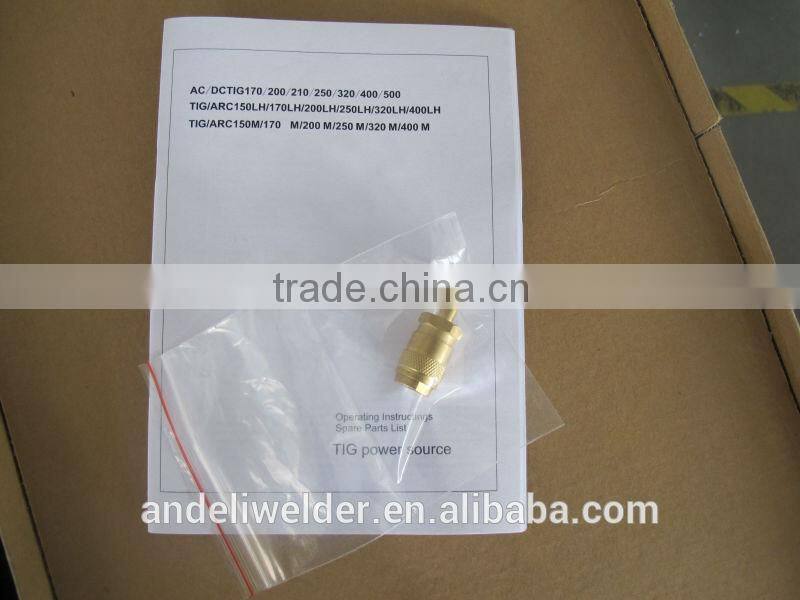

- Maintenance manual
- 24 hours support by e-mail
- For Large Order,Engineer can be sent to your country for on-site maintenance instructions
