Corrugated Paper Box Carton Folding Gluing Machine Automatic Printing Slotting
US$ 180000 - 350000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Land River
Place of Origin:
China
Model Number:
SYKM Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Corrugated Paper Box Carton Folding Gluing Machine Automatic Printing SlottingUS$ 180000 - 350000MOQ: 1 Set -
Auto Paper Box Making Machine Corrugated Carton Box Making MachineUS$ 180000 - 350000MOQ: 1 Set
-
China High Quality In-line Automatic Carton Box Making MachineUS$ 180000 - 350000MOQ: 1 Set
-
Automatic Flexo Printing Slotting Die-Cutting Folder Gluer Strapping Inline MachineUS$ 180000 - 350000MOQ: 1 Set
-
Automatic Flexo Printing Slotting Die-Cutting Folder Gluer Strapping Inline MachineUS$ 52000 - 185000MOQ: 1 Set
Brand Name
Land River
Place of Origin
China
Model Number
SYKM Series
Certification
ISO9001
Type
Other, Printing slotting machine
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
One Year
Weight
Customized
Dimension(L*W*H)
Customized
Condition
New
Voltage
Customized
Power(W)
Customized
Computerized
Yes
__________________________________________________________________
§ Native Advantage §
__________________________________________________________________
__________________________________________________________________
High precision, High efficiency and High speed carton manufacturing era has come,so HOW to make it come true?Through the efforts of all workers,we succeeded in finding a new direction------High Efficient Automatic Carton Box Production Line.

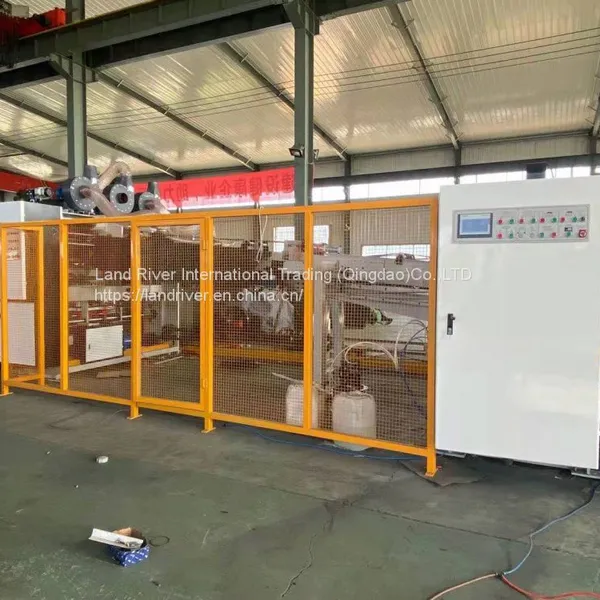

This production line includes three units:Printing Slotting Die-cutting Unit, Folding Gluing Unit,Stacking Unit(optional).
It is a complete carton box production line,and this high efficient line also can absolutely make your carton manufacturing process more automated and intelligent, and have the advantages of high efficiency, economy, environmental protection, etc.
This production line includes three units:Printing Slotting Die-cutting Unit, Folding Gluing Unit,Stacking Unit(optional).
It is a complete carton box production line,and this high efficient line also can absolutely make your carton manufacturing process more automated and intelligent, and have the advantages of high efficiency, economy, environmental protection, etc.
____________________________________________________________
§ The Line Features §
____________________________________________________________
1.This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.§ The Line Features §
____________________________________________________________
2.Computerized control,order setting in touch screen.
3.The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality
4.The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system
5.The correction device in the Countering Section can conquer the fish-tail,makes the carton even
6.The quantity of bundle come out from the Counter Ejector can be set in touch screen
7.All electronic and pneumatic components are with European standards
_______________________________________________________________
§Detailed Description§
_______________________________________________________________

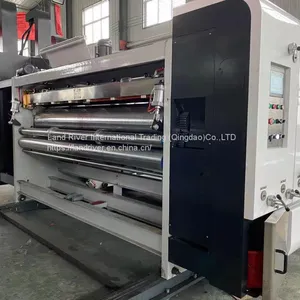

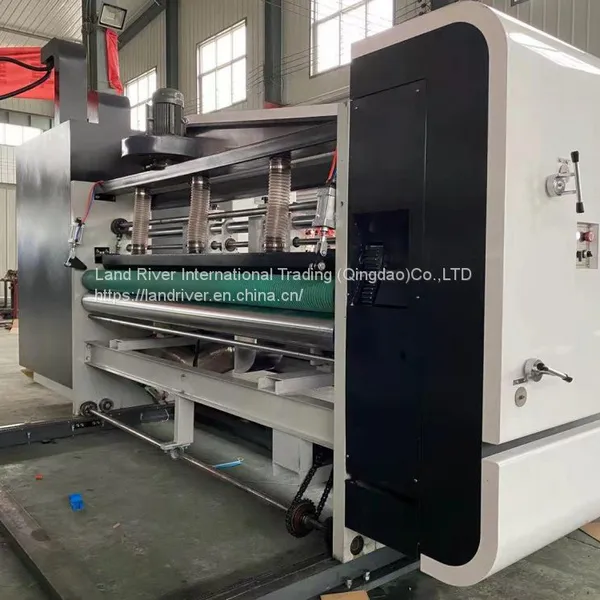

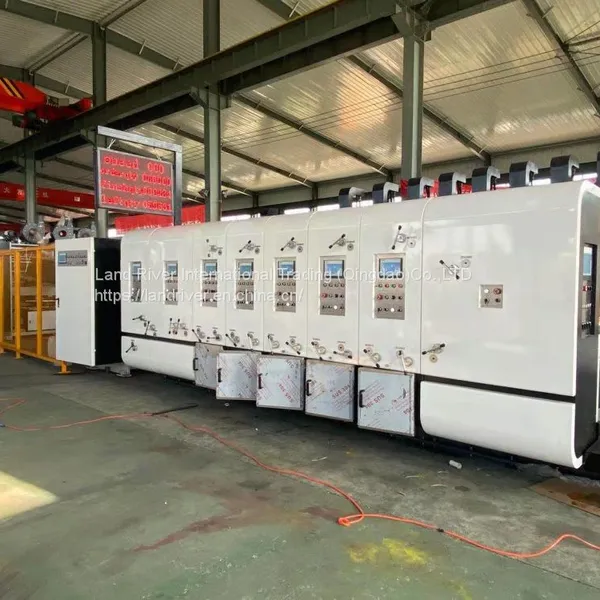

№1 Printing Slotting Die-cutting Unit
@Description
1.Computer order storage and adjustment,faster order update and convenient operation.
2.Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digi-controlled grinder.
3.All the transmission axle and rollers are made of high-quanlity steel with high-precision gynamic balance,plated with figid chrome and grinded surface.
4.The transmission gear adopts the high-quality steel,which is grinded after heat-treatment,after long use,it still maintains the high topping precision.
5.The main machine transmission part adopts the hand-free connection ring to eliminate the interval,suitable for long-term high speed printing.
6.The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.
7.It possesses the print,die-cutting,slotting memory function,which could return to Zero and Re-set automatically.
8.PCLINK control network,MCGS software,Siemens low voltage electric appliance and host frequency conversion control,30% electricity saving.
9.Double axle slotting to configure whole machine production management computer control system.
10.Customer can choose to use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be choosed according to the customer's use.
@Technical parameters
| Model | 410 | 480 | 530 |
| Color Group | AS customized | ||
| Printing Paper | A,B,C,A/B,B/C,A/B/C | ||
| Production Speed | 150pcs/min | 150pcs/min | 120pcs/min |
| Economy Speed | 0-120pcs/min | 0-120pcs/min | 0-100pcs/min |
| Max. Paper Sizes |
900~1200 ×2600mm |
1200~1450 ×3000mm |
1400~1600 ×2600mm |
| Min. Paper Sizes | 350×680mm | 380×680mm | 380×680mm |
| Max. Printing Sizes | 1200×2400mm | 1450×2700mm | 1600×2200mm |
| Max. Die-cutting Size | 1200×2550mm | 1400×2950mm | 1600×2550mm |
| Standard Printing Plate Thickness | 4~9mm | 4~9mm | 4~9mm |
| Slotting Width | 2~12mm | 2~12mm | 2~12mm |
| Max. Slotting Depth | 320mm | 320mm | 380mm |
| Min. Slotting Space |
160×160×160×160mm 300×60×300×60mm |
160×160×160×160mm 300×60×300×60mm |
160×160×160×160mm 300×60×300×60mm
|
| Printing roller Dia. | 300mm | 408mm | 408mm |
@Feeding Unit Configuration
1.Edge-leader feeding system:adopt smaller press edge-leader feeding system,friction between paperboard and the platform.Chinese advanced technology,with character of protecting original strength of paperboard, avioding damaging the corrugate and avoiding pressing to thin.It is good to transport smoothly after pressing line,with stable system,feeding quickly and precisely,suitable for all kinds of corrugated paperboard.
2.Vacuum absorption to assist feeding,the air volume and air press can be adjusted as the paperboard size.
3.Electrically adjust the left block and back box,with pneumatic patting equippment,to make the paperboard position more precisely.
4.10.4inch colorful touch screen control feeding part,printing part,slotting part,die cutting part ,can return zero once.

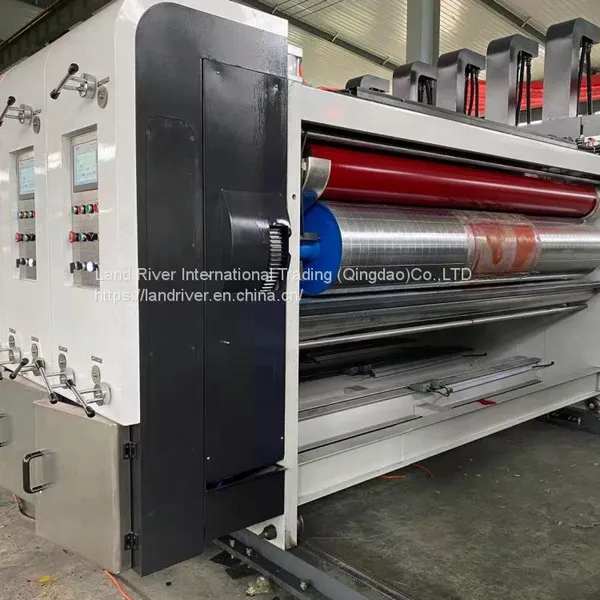

@Printing Unit Configuration
1.Printing roller and driving roller adopt good quality steel,computer dynamic balance,dliminate the off-center force,grinded face and chrome plated.
2.Printing roller adopt holding groove ,foot step electric control positive and negative rotate,install and uninstall the plate quickly and conveniently.
3.Whole sealed double scrape blade system,no dust,back ink quickly,scraping ink effect is very good.
4.Ink anilox roller:Ceramic anilox,laser carved,can choose 300-800line.
5.Printing phase and axial direction adjusting:phase adjusting adopts planet type gear configuration,PLC touch screen and electrical digital in 360 degree(can adjust both run and stop),converter motor drive,change rotating speed of roller as requirement,precision is 0.1mm,quick and convenient,printing roller moving axially adopt PLC touch screen and electrical digital to adjust,adjusting arrange is 10mm.
6.Through ink roller gap,pringting pressing roller,paper-leading roller gap adopt double wrm wheel box to adjust,gravimetric show digital,(0-10mm)convenient to adjust and with self-lock funtion.
7.Option:Drying system, to insure the printing quality.
2.Printing roller adopt holding groove ,foot step electric control positive and negative rotate,install and uninstall the plate quickly and conveniently.
3.Whole sealed double scrape blade system,no dust,back ink quickly,scraping ink effect is very good.
4.Ink anilox roller:Ceramic anilox,laser carved,can choose 300-800line.
5.Printing phase and axial direction adjusting:phase adjusting adopts planet type gear configuration,PLC touch screen and electrical digital in 360 degree(can adjust both run and stop),converter motor drive,change rotating speed of roller as requirement,precision is 0.1mm,quick and convenient,printing roller moving axially adopt PLC touch screen and electrical digital to adjust,adjusting arrange is 10mm.
6.Through ink roller gap,pringting pressing roller,paper-leading roller gap adopt double wrm wheel box to adjust,gravimetric show digital,(0-10mm)convenient to adjust and with self-lock funtion.
7.Option:Drying system, to insure the printing quality.
