We are professional leading factory in Guangzhou,China.
More than 10 years in manufacturing car paint spray booths.
We also sale automobile repair &maintenance equipments.
QX3000 CE Approved Good Quality Big Bus Spray Booth Oven Professional Factory
| Inside Dimension | 14850x4850x4550(mm)(L×W×H) |
| OutsideDimension | 15000x6500x5000(mm)(L×W×H) |

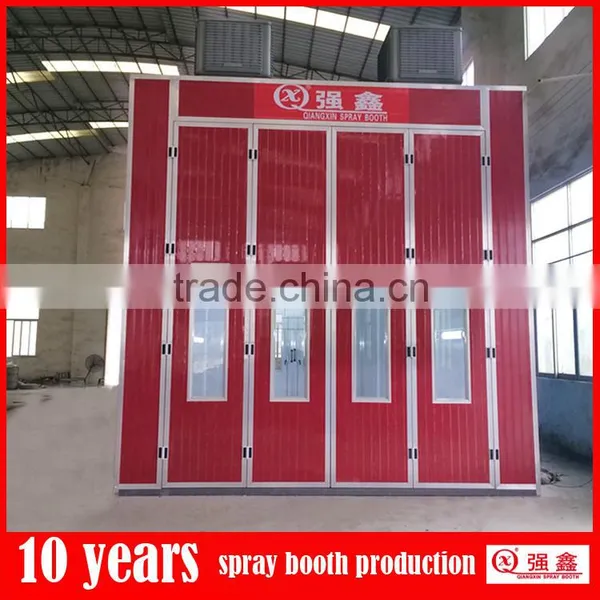

| Entrance Door |
Aluminum alloy binding framework(thickness: 1.2mm), 1 set folding door size: 4000*4500(mm)(W*H) |
| Personal Door | 1 set side hung door:700*1700mm(W*H) |
| Wallboard | 75mm EPS(epispastics polystyrene )insulation material with S=0.526 two side steel panel |
| Lighting System | Lamp boxes are 45° fixed on upper two side,with 16 groups*3pcs=48pcs 14w LED engergy saving light;with 36pcs side lights |
| Air Intake and Exhaust System |
With 4pcs centrifugal air blowers,Total parameter:YOW5.6m.4*5.5 kw.25000m3/h With 2pcs centrifugal air blower,Total parameter:TAE-710H.2*3 KW.18000m3/h |
| Cabinet Setting |
Intake air from upside,downside exhaust wind. Frame is made of tube 50*50mm, body plate is made of galvanized plate(thickness:0.8mm). |
| Air duct | Made of Galvanized plate(Thickness is 0.8mm),700*700*1000,2 sets air duct,each set with 3 pcs straight,1 pc elbow |
| HeatingSystem |
72 pcs of infrared carbon fiber heating lamps.1000w/pc. The operating temperature:50°C-75°C.Max. temperature:80°C
OR Gas/ diesel burner heating system for choice. |
| Filtration System |
Air inlet with prefilter. Ceiling equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles. With three layers of activated carbon, plus an Environmental protection cabinet.The Air filtration efficiency is more than or equal to 98,its Exhaust emission reaches the national standard. |
| Roof | Galvanized steel panel |

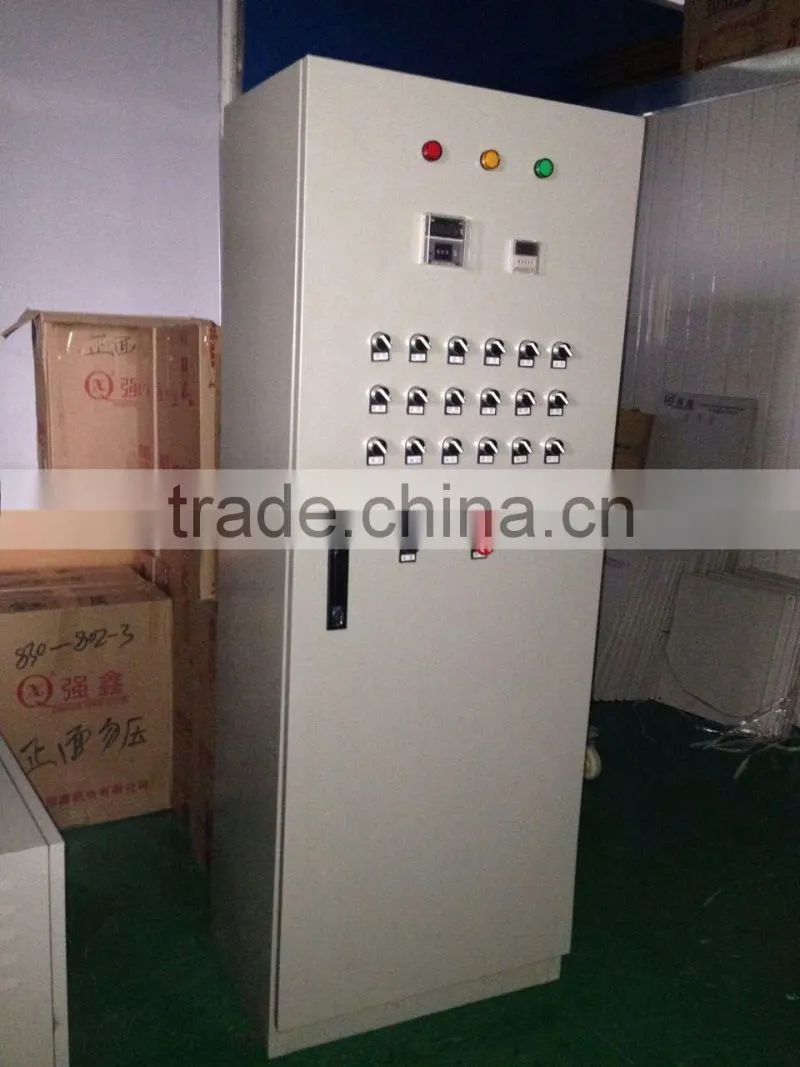

| Control System | Painting , Baking, Temperature Controller, Breakdown Indicator, Power Switch, Emergency Stop Switch, and Time Setting |
| Voltage Frequency | 380V 50HZ |
| Light Intensity | 1000luxes |
| Air Flow Speed | 0.25m/s-0.3m/s |
| Total Power | 108KW |

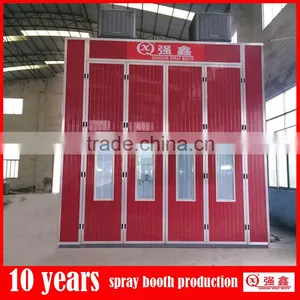

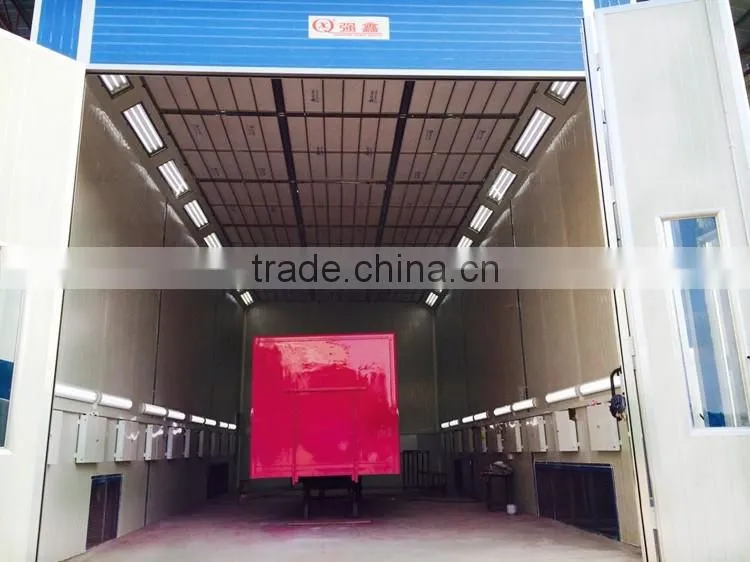

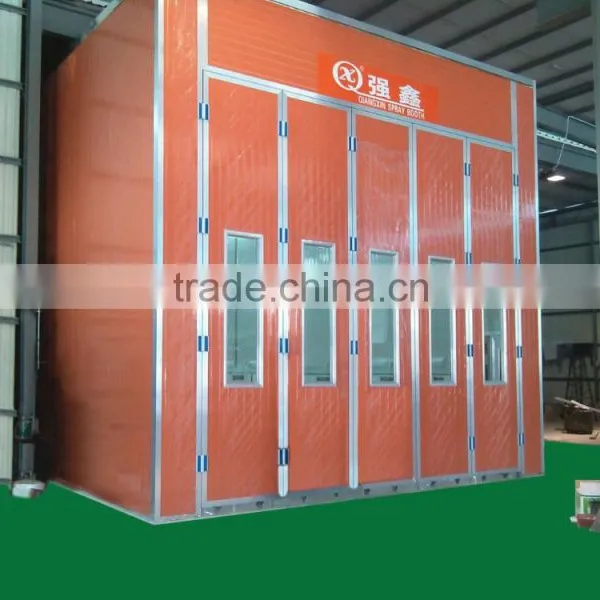

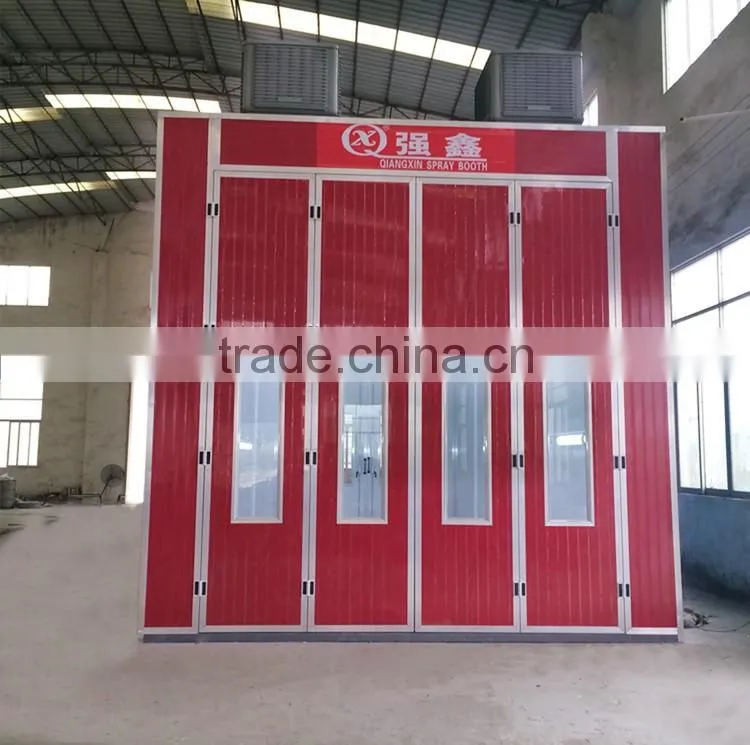

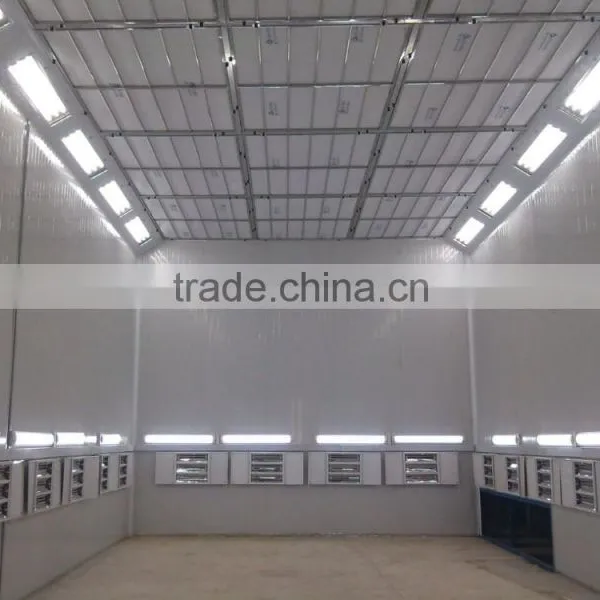

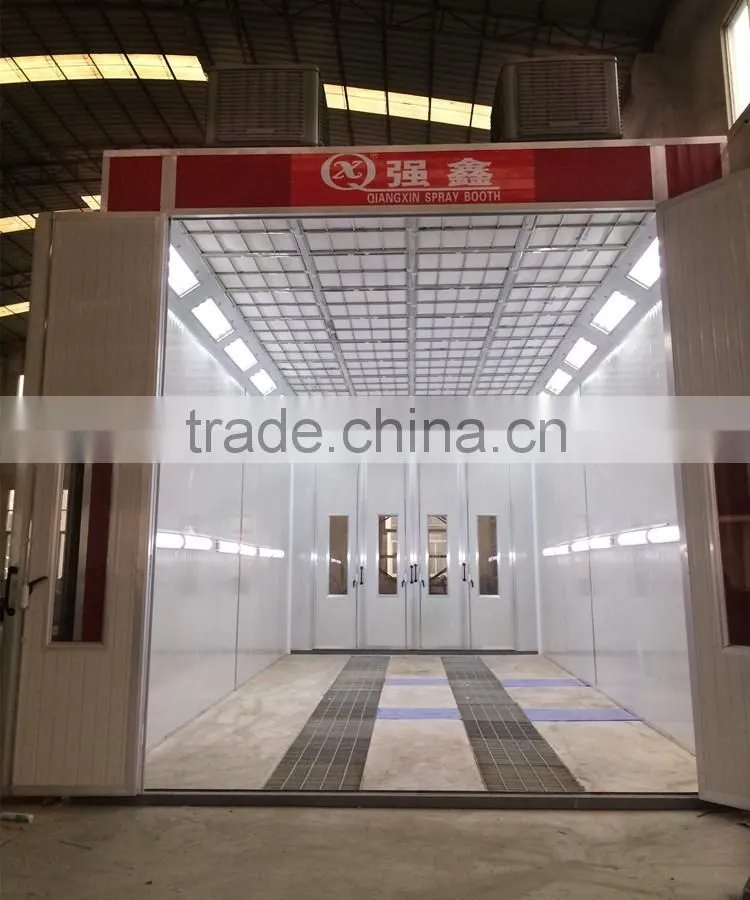

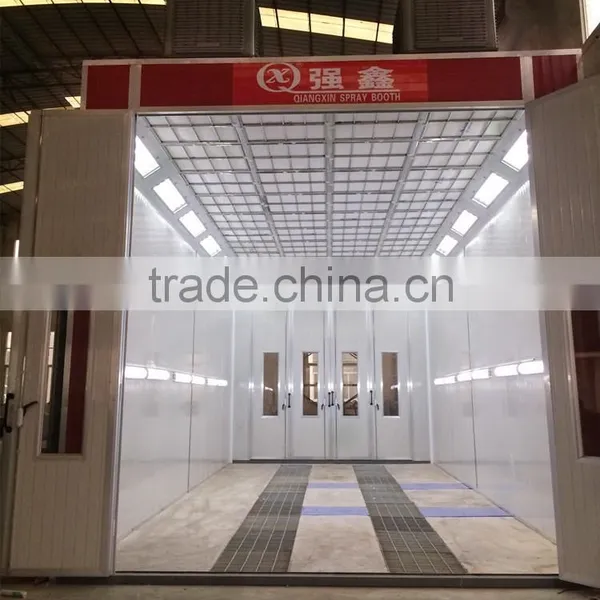

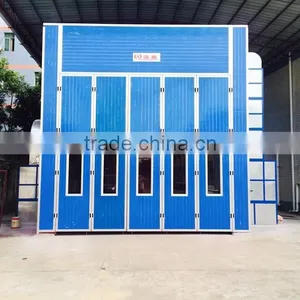

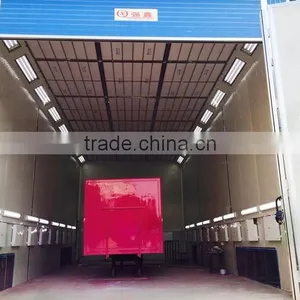

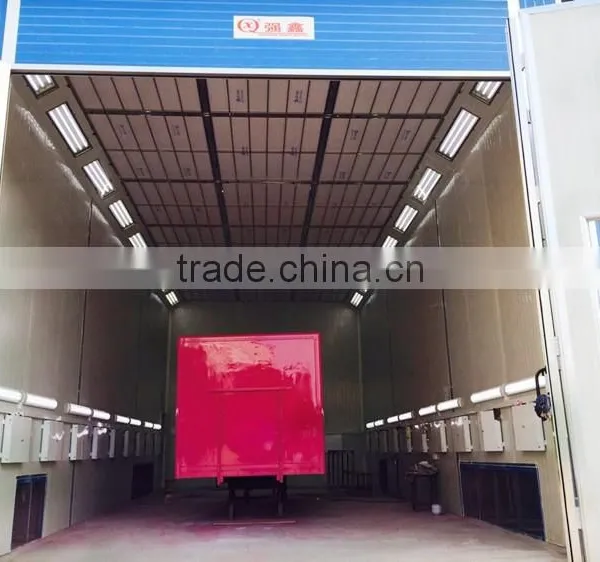

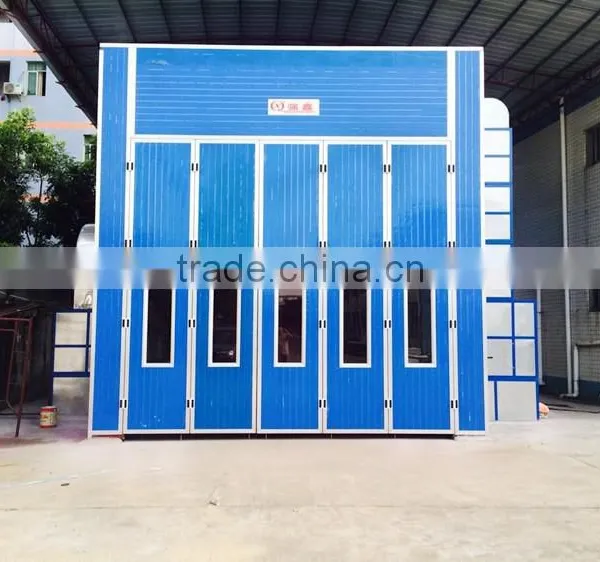

Our project photo for reference.Photo are all rights reserved.
With 10 years professional production experiences in this area.
We had exported our spray booth baking oven for more than 50 countries with good feedback.
We accept custom-made spray booth baking oven.
