Home > Instruments & Meters > Optical Lens & Instrument > Microscope > 2.0MP LCD Digital & Video 0.7X--4.5X Zoom Monocular Stereo Microscopes

2.0MP LCD Digital & Video 0.7X--4.5X Zoom Monocular Stereo Microscopes

Negotiable MOQ: 5 Cases (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

LCD745T

Contact Supplier Request Quote Chat Now

Hangzhou Future Optics Sci & Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number LCD745T

Theory Stereo Microscope

Drawtube Monocular

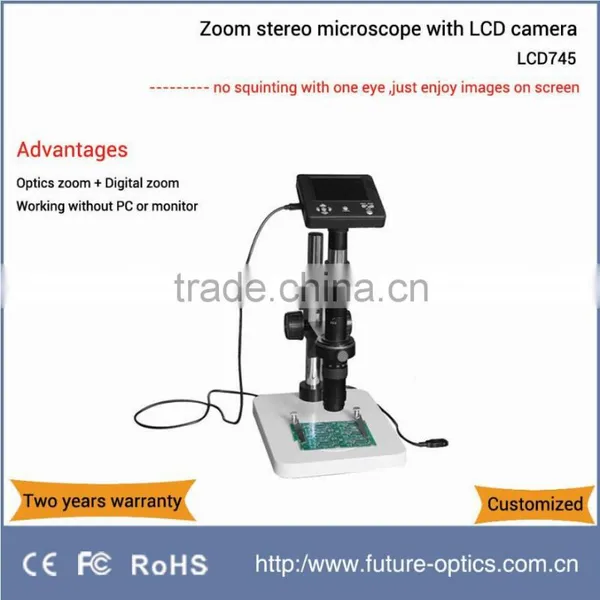

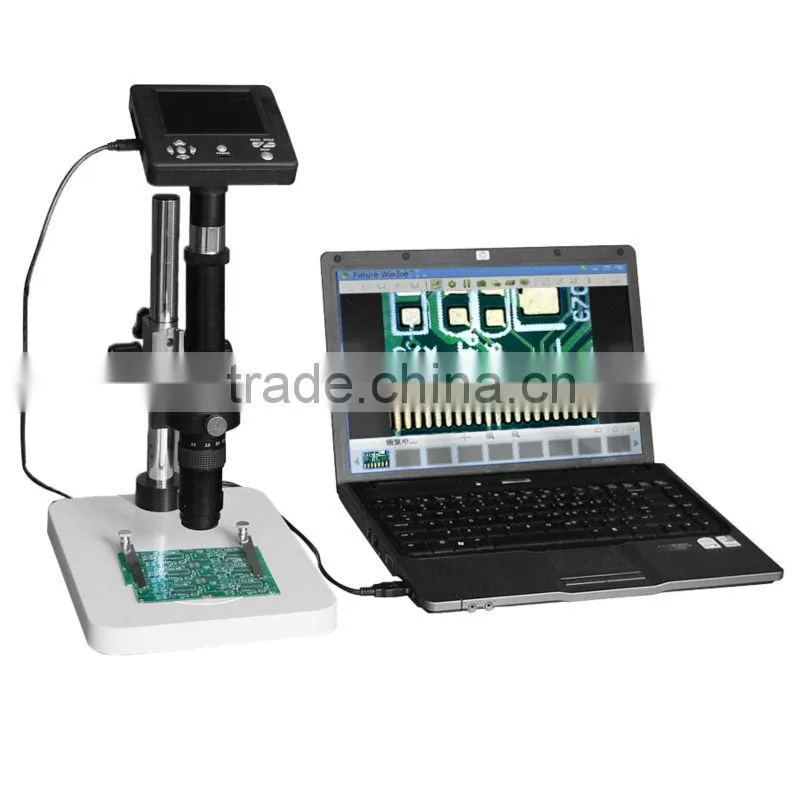

LCD745T LCD digital microscope incorporates analogue and digital camera technology to reveal microcosms.
To view microorganism slides and to view rock specimens with the same device.
Wide application in life science, industry, education and the amateur.

Certification:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M

Specifications:

Digital eyepiece	2.0 MP USB LCD camera
Active resolution of sensor	1600*1200
Sensitivity	1.0V/lux-sec
Dynamic rage	60 dB
Frame rate	10fps@1600*1200
Picture resolution	12.0MP/8.0MP/5.0MP/3.0MP/2.0MP/1.3MP/0.35MP
Equivalent magnification ofLCD eyepiece	60X
Total magnification ( LCD eyepiece loaded )	42X ~270X
Magnification of built-in relay lens of LCD eyepiece	0.489X
Zoom lens body	Parallel optical path rotated 360°
Zoom objective	0.7X ~ 4.5X
Extra objective	1X
Working distance	96.0mm
Viewing field	12mm –1.8mm
Micro ruler	0.1mm / 10 mm
Illumination	Reflected LED illumination with adjustable brightness
Working stage (base)	Pillar base 285mm X 238mm
Focusing adjustment range	49mm ( pillar vertical size 240mm)
CD of software	Future Win Joe imaging software with movable reticle
Packing	Carton size:25.5cm X 40.1cm X 41.5cm

Trade information

Trade terms

Payment:

100% prepaid for first order

For quantity order: T/T to our company account

For sample order or trial order: T/T to our company account, Western Union, Escrow

Delivery time and shipping:

Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.

Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.

OEM orders need an extra customization time. Generally customization will take 10 days.

Warranty:

We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.

Customization:

We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information

Free sample for clients to place repeat orders:

We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.

Pre-sales service

As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.

1. Provide basic knowledge to help our clients understand working principle of our products;

2. Provide key factors and skill to our clients when they choose our products;

3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;

4. Provide product design drawing and package drawing to help clients work out customization pattern.
