Home > Instruments & Meters > Optical Lens & Instrument > Microscope > 2.0MP LCD Digital & Video Trinocular Microscope With Camera

2.0MP LCD Digital & Video Trinocular Microscope With Camera

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

LCD745T

Contact Supplier Request Quote Chat Now

Hangzhou Future Optics Sci & Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number LCD745T

Theory Stereo Microscope

Drawtube Monocular

Specifications

A compound digital & videio stereomicroscope with LCD 3 in 1 camera and stereomicroscope, to show image on LCD or PC or TV set

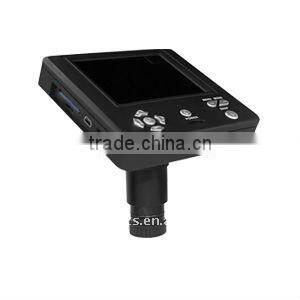

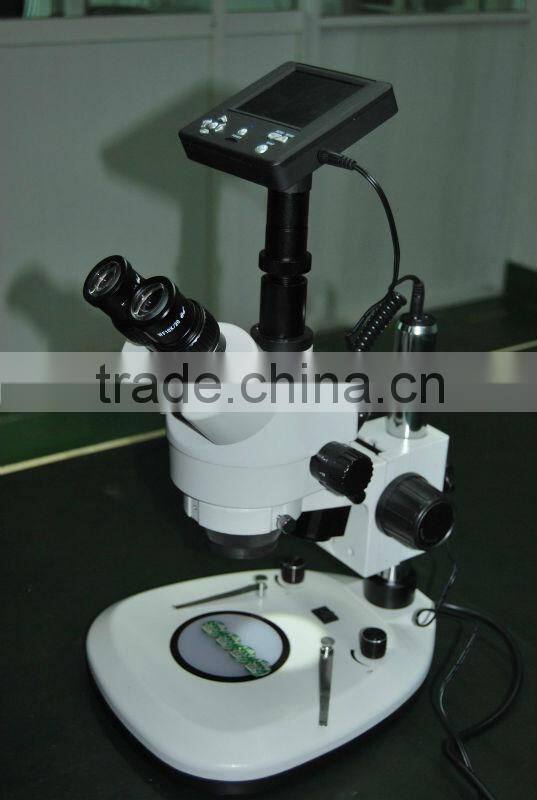

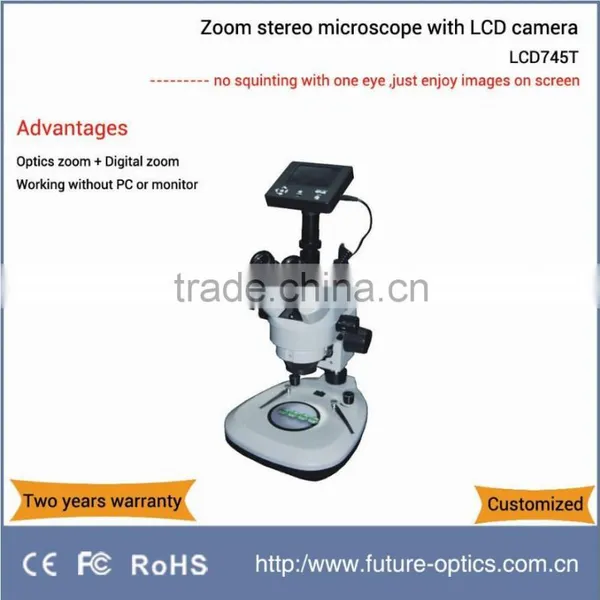

LCD745T is a compounding digital & video zoom trinocular stereomicroscope of a 3.6LCD 3 in 1 digital camera and a 0.7X to 4.5X zoom microscope. The LCD camera can be easy inserted ocular eyepiece tube or C-mount and to show images on LCD screen for view and to save pictures and video in the memory card under the controlling of keyboard.

When the LCD camera is connected with PC through USB port, the function of USB eyepiece is released, and the operation of images and video can be controlled by PC. When the LCD camera is linked to a TV set, the images captured by microscope will display on TV screen for public view.

Specifications:

Digital eyepiece	2.0 MP USB LCD camera
Active resolution of sensor	1600*1200
Sensitivity	1.0V/lux-sec
Dynamic rage	60 dB
Frame rate	10fps@1600*1200
Picture resolution	12.0MP/8.0MP/5.0MP/3.0MP/2.0MP/1.3MP/0.35MP
Total magnification (optical eyepiece loaded )	7X ~ 45X
Equivalent magnification of digital eyepiece	60X
Total magnification (digital eyepiece loaded )	42X ~ 270X
Optical eyepiece	WF10X20mm
Viewing head	Trinocular hand, 45°inclined, 55-75mm interpupillary distance adjustment range
Objective	0.7X ~ 4.5X
Working distance	100.0 mm
Optical viewing field	28.6mm (7X)
Micro ruler	0.1mm / 10 mm
Illumination	Reflected and transmitted LED illumination with adjustable brightness
Working stage (base)	Pillar LED base 285mm X 238mm
Focusing adjustment range	49mm ( pillar vertical size 240mm)
CD of software	Future Win Joe imaging software with movable reticle
Packing	Carton size: 37cm X 33cm X 38.5cm
