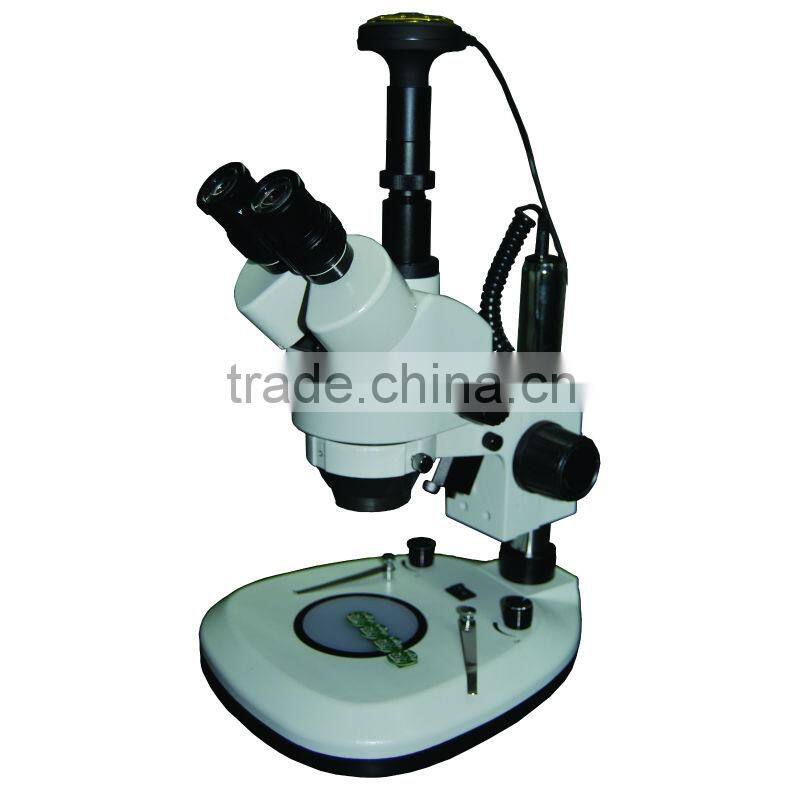

Help Center3.0MP USB M7045-3 Trinocular Stereo Microscope With Digital Camera
Related Products
-
5.0MP High Resolution Digital MicroscopeNegotiableMOQ: 20 Pieces -
Patent MDA2000R Digital Portable Zoom Measuring Microscope Equipped With Reticle Software and LED Ring LightNegotiableMOQ: 50 Pieces
-
3.0MP USB Digital Zoom Stereo MicroscopeNegotiableMOQ: 50 Pieces
-
Multifunction MDC2000-44R Wireless Remote Control Digital Microscope With Lcd ScreenNegotiableMOQ: 20 Pieces
-
Student Digital Microscope Equipped With Calibrating Micro Ruler for Measurement Function MDA1300RUS$ 1 - 199MOQ: 50 Pieces
Specifications
Active pixels 2048*1536built-in relay lens
CE, FCC, RoHS,
Copyright software of 8 languages
32 or 64 bit XP, Win8,Mac
- M7045-3 LCD digital microscope incorporates analogue and digital camera technology to reveal microcosms.
- To view microorganism slides and to view rock specimens with the same device.
- Wide application in life science, industry, education and the amateur.
Specifications:
Digital eyepiece |
3.0 MP USB digital camera equipped with built-in relay lens |
Active resolution of sensor |
2048*1536 |
Sensitivity |
1.4V/ lux-sec |
Dynamic rage |
70.1 dB |
Frame rate |
15fps@2048*1536 |
Total magnification (optical eyepiece loaded ) |
7X ~ 45X |
Equivalent magnification of digital eyepiece |
30X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) |
21X ~ 135X |
Optical eyepiece |
WF10X20mm |
Viewing head |
Trinocular hand, 45°inclined, 55-75mm interpupillary distance adjustment range |
Objective |
0.7X ~ 4.5X |
Working distance |
100.0 mm |
Optical viewing field |
28.6mm (7X) |
Micro ruler |
0.1mm / 10 mm |
Illumination |
Reflected and transmitted LED illumination with adjustable brightness |
Working stage (base) |
Pillar LED base 285mm X 238mm |
Focusing adjustment range |
49mm ( pillar vertical size 240mm) |
CD of software |
Future Win Joe imaging software with movable reticle |
Packing |
Carton size: 37cm X 33cm X 38.5cm |
