Home > Instruments & Meters > Optical Lens & Instrument > Microscope > Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light

Name: Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light
Brand: Future Optics / OEM
SKU: 132584749
Availability: InStock

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light thumbnail-1

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light thumbnail-2

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light thumbnail-3

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light thumbnail-4

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light thumbnail-5

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light thumbnail-6

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light photo-1

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light photo-2

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light photo-3

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light photo-4

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light photo-5

Patent 40~240X Magnification 1.3MP MDA1300 Handheld USB Digital Microscope With 8 Led Ring Light photo-6

US$ 1 - 199 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Future Optics / OEM

Model Number:

MDA1300

Contact Supplier Request Quote Chat Now

Hangzhou Future Optics Sci & Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hangzhou Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Future Optics / OEM

Model Number MDA1300

Theory Video Microscope

Drawtube Monocular

♦Features:

1. Digital imaging module: 1.3MP high performance CMOS imaging module;

2. Imaging software: Future Win Joe image & movie capturing and processing program

3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;

4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;

5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.

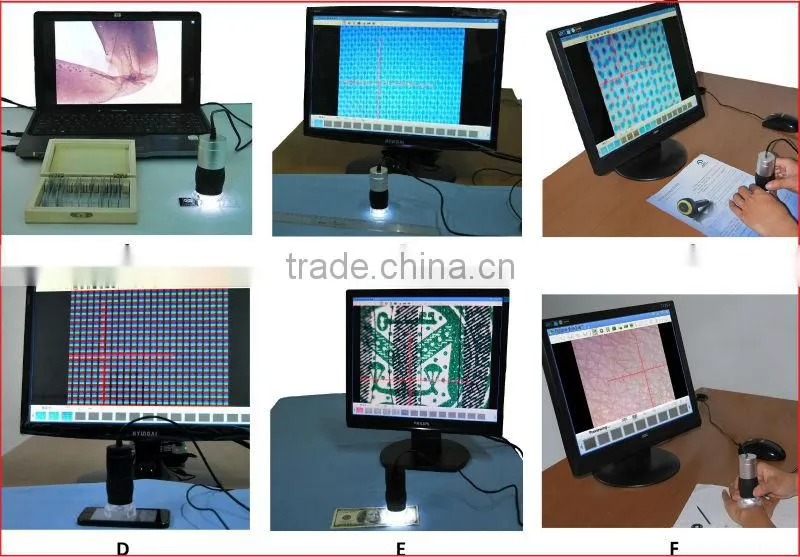

♦Applications:

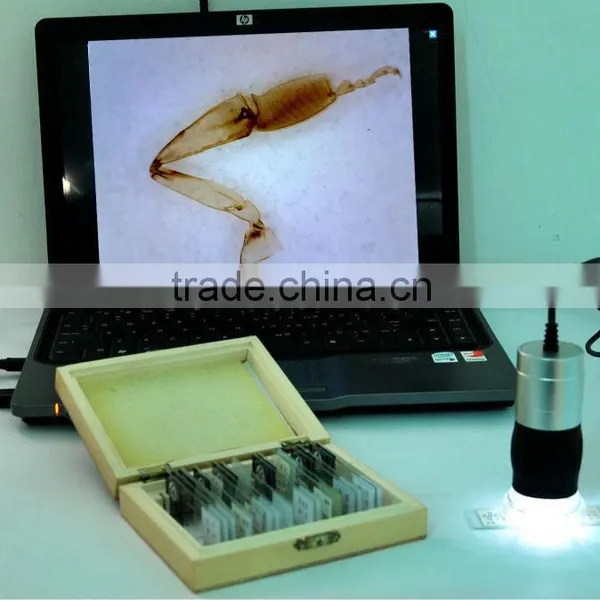

A: Inspection of insect specimens ---- picture of a honeybee foreleg at 240X

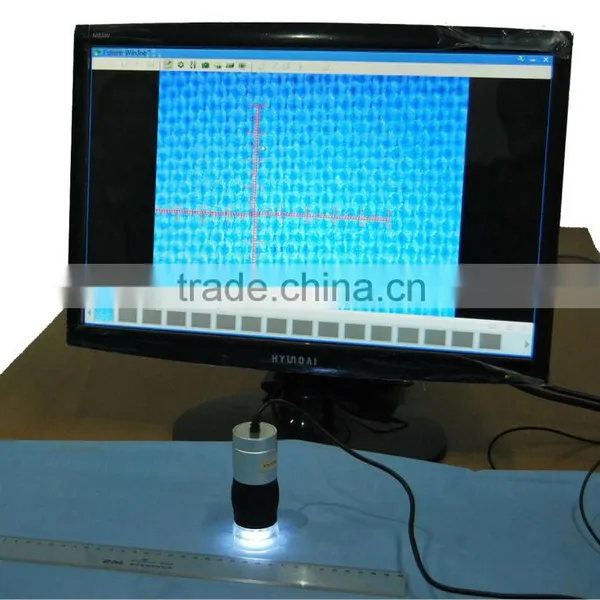

B: Inspection of textile quality -------picture of chemical fabric at 40X

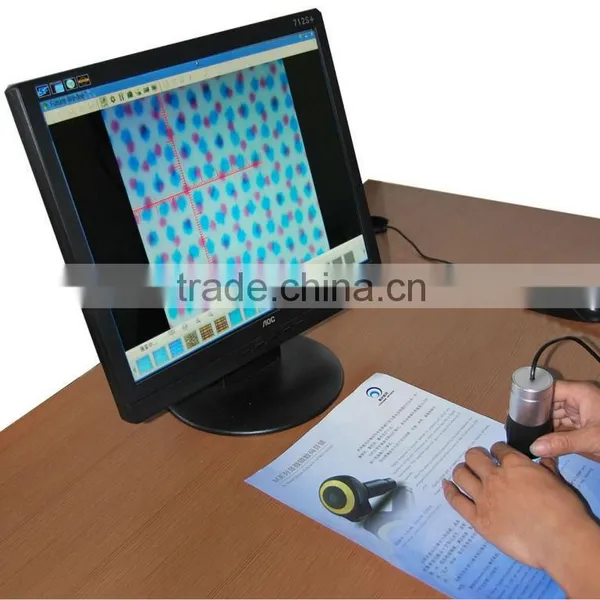

C: Inspection of printing quality----- picture of halftone dots at 240X

D: Inspection of electronic components----picture of “I phone 5”screen at 240X

E: Law enforcement-----picture of 2003 version USD bill at 40X

F: Beauty and skin care----picture of man skin at 240X

♦Quality control:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M

♦Detail Specifications:

Capture Mode	Picture and Video
Sensor Parameter	1/4” 1.3MP Color CMOS
Max. Resolution	1280*1024
Pixel Size	2.8µm*2.8µm
Sensitivity	1.0V / lux-sec
Dynamic Range	71.0 dB
S/N Ratio	44.0 dB
Working Distance	5.0MM ---∞
Magnification	1---40X; 240X
Spectral Range	400-650nm(with IR-filter)
Frame Rate	17fps@1280*1024
Preview Model	12801024; 640480; 320*240
Exposure	ERS or Manual
Power Consumption	170 mW
White Balance	Auto and manual
Out Interface	USB2.0
Device Weight	0.12kg
Device Size	Φ45mm*95mm
Function of Software	Image & video Capture, Edit and Management
System Compatibility	32bit and 64bit XP, Vista, Win7,Win8,MAC
Language of software	English, French, German, Spanish, Japanese, Chinese, Russian
PC Requirements	CPU: Inter Core2, 2.8GHz or Higher; Memory: 2GBor More; USB Port:USB2.0 High-speed Port

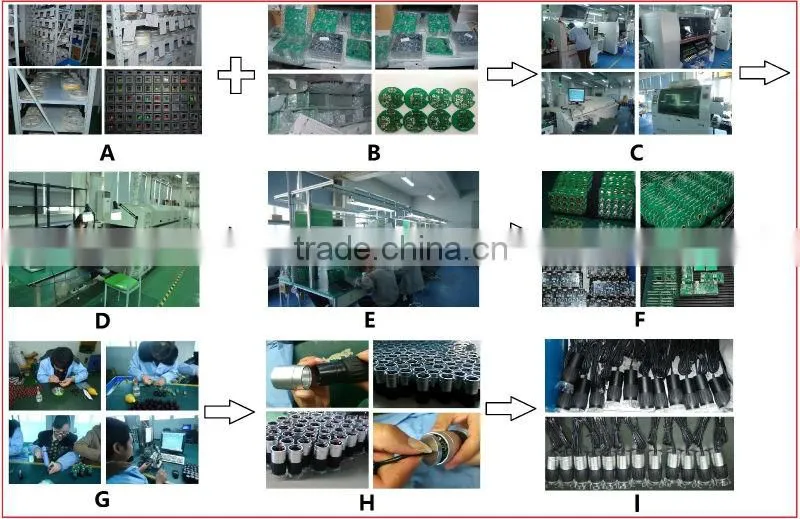

♦production process

A: electron component--- SMT components and imaging sensor

B: PCB before SMT processing

C: SMT processing

D: PCB inspection

E: DIP working

F: various PCB imaging module

G: assembling lens, PCB, lighting device, and test image

H: assembling focus device, shell, base, USB port

I: products before packing

Trade information

Packaging:

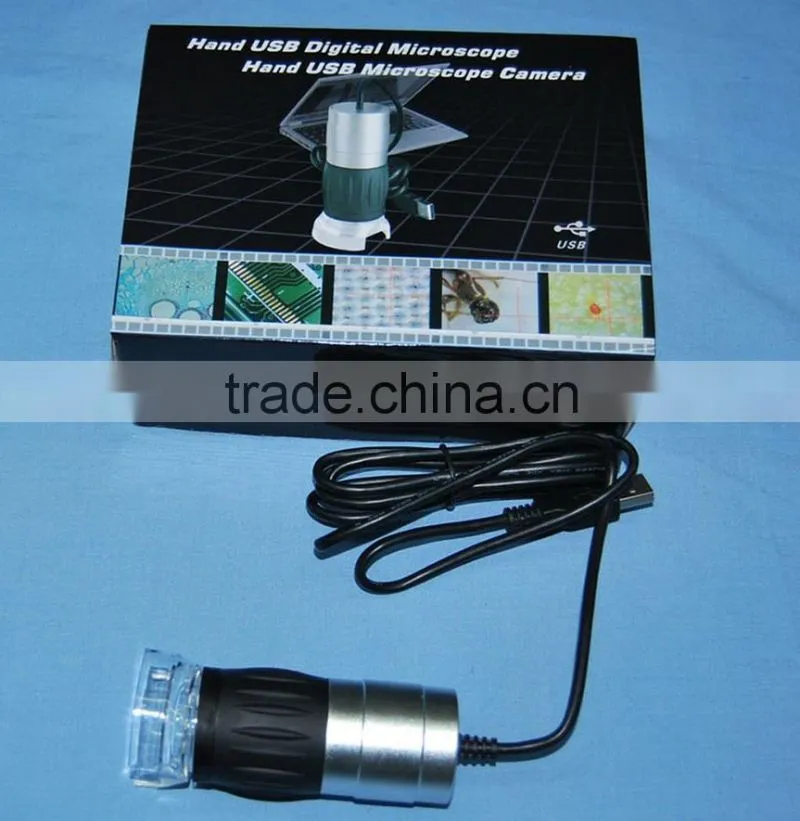

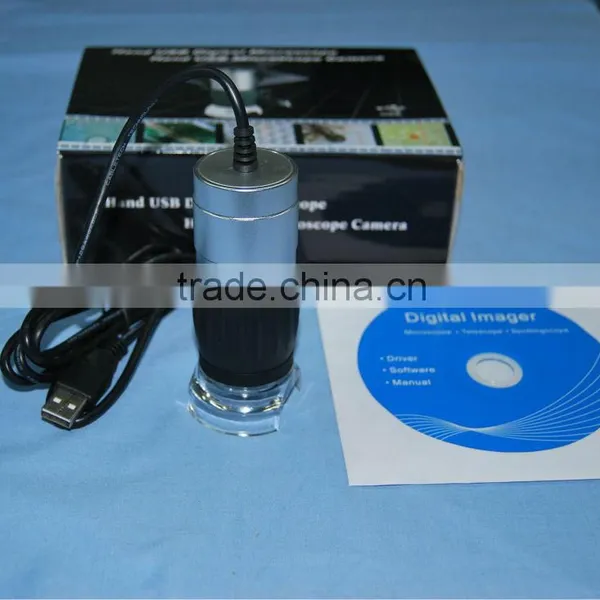

What inside box: Microscope connected with USB cable, CD of imaging software and manual file, shock proof plastic shell

Single packaging: .Neutral color box: Weight: 0.23kg. Measurement: L:17.5cm ,W:13.0cm,H:6.0cm.

Carton packaging of 50 pcs:GW:12.38kg. Measurement:L:70.0cm ,W:37.0cm,H:61.0cm.

Payment:

We ask for payment 100% in advance for your first order.

For quantity order: TT to our company account.

For sample order or trial order: TT to our company account, Western Union, Alipay.

Shipping and delivery:

Sample order or trial order ( less than 200 pcs )will be sent in 3 days after receipt of payment by express, like EMS, DHL, TNT, confirmed by clients.

OEM order (less than 500 pcs ) will be finished in 7day, and normally shipped by air or by sea through forwarders appointed by us or clients. Customization will cost 5 days.

It is necessary to negotiate in advance to confirmation of delivery time for quantity order.

Warranty:

We offer two years warranty covering all of our products, including to provide on line technical support, to replace defective one with new one basing on our service offices all over the world.

Customization:

We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making. Please send us an inquiry to get printing pattern design or to refer to design we made for other clients.--------------more information

Free sample for clients to place repeat order:

We welcome our potential buyers to purchase sample for test and evaluation, we will return the sample fee to you, when you place repeat order.

As a designer and maker of USB microscope we highly appreciate any suggestion coming from your end, and we would do our best to match your marketing strategy or your special applications by providing consecutive improvement.

Please let us know without hesitation, if you have any questions not including our trade terms.
