Specifications
2.0MP sensor, 3.6 inch LCDOptical zoom: 7X-45X
Camera zoom: 60X
Total power: 42X-270X
Top and bottom lighting

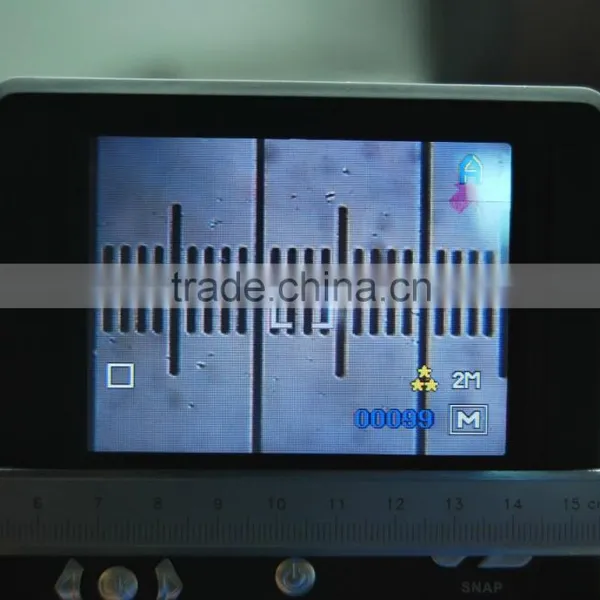

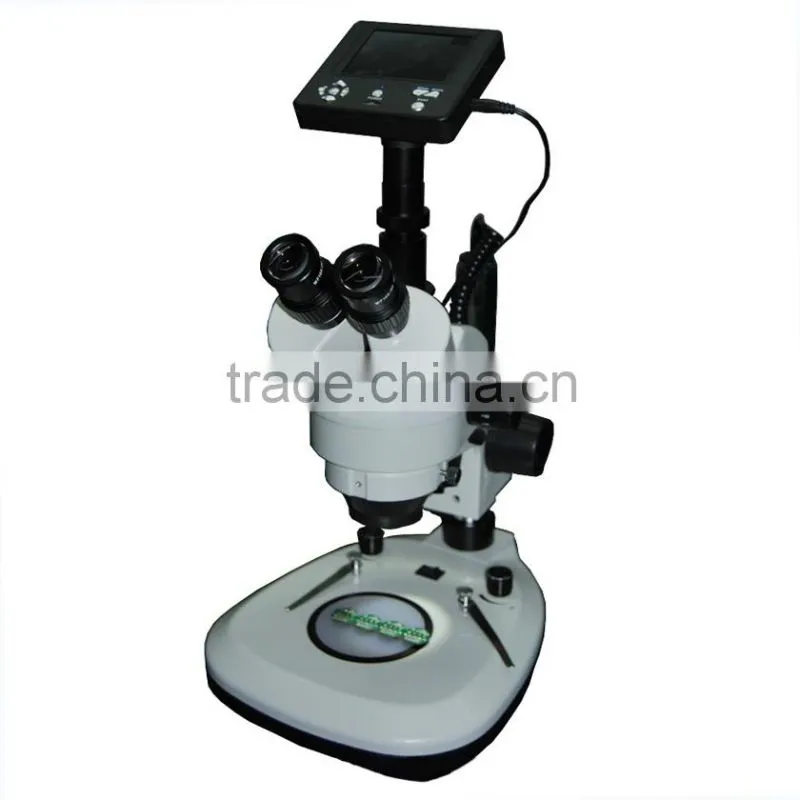

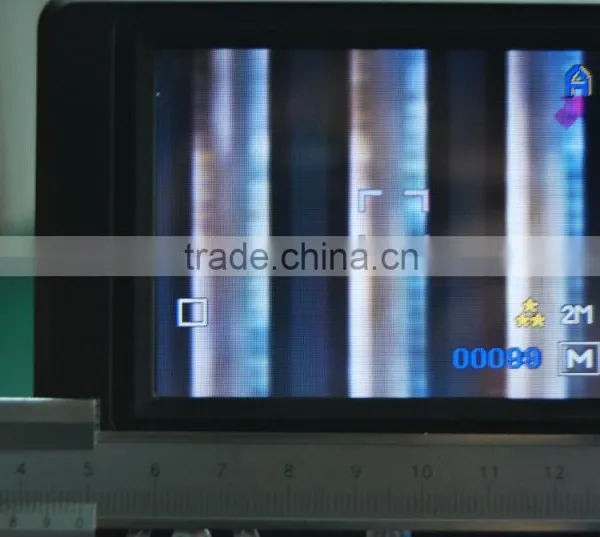

LCD745T microscope, a 3 into 1 LCD microscope, provides function to dispaly the images on LCD monitor for perview, to savepicture or video in SD card, to shown video on TV set VS video port, and to connect with PC actioning a PC camera. It is widely used in industrial inspection, science research and education.
Specifications:
Digital eyepiece |
2.0 MP USB LCD camera |
Active resolution of sensor |
1600*1200 |
Sensitivity |
1.0V/lux-sec |
Dynamic rage |
60 dB |
Frame rate |
10fps@1600*1200 |
Picture resolution |
12.0MP/8.0MP/5.0MP/3.0MP/2.0MP/1.3MP/0.35MP |
|
Total magnification (optical eyepiece loaded ) |
7X ~ 45X |
|
Equivalent magnification of digital eyepiece |
60X |
|
Total magnification (digital eyepiece loaded ) |
42X ~ 270X |
Optical eyepiece |
WF10X20mm |
Viewing head |
Trinocular hand, 45°inclined, 55-75mm interpupillary distance adjustment range |
Objective |
0.7X ~ 4.5X |
Working distance |
100.0 mm |
Optical viewing field |
28.6mm (7X) |
Micro ruler |
0.1mm / 10 mm |
Illumination |
Reflected and transmitted LED illumination with adjustable brightness |
Working stage (base) |
Pillar LED base 285mm X 238mm |
Focusing adjustment range |
49mm ( pillar vertical size 240mm) |
CD of software |
Future Win Joe imaging software with movable reticle |
Packing |
Carton size: 37cm X 33cm X 38.5cm |
