Integrated 4 Channels DWDM for High Speed Transceivers

Name: Integrated 4 Channels DWDM for High Speed Transceivers
Brand: Future Optics
SKU: 132581943
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Future Optics

Model Number:

1x4 DWDM

Hangzhou Future Optics Sci & Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Future Optics

Model Number 1x4 DWDM

Products description:

This DWDM device is based on free space and thin-film filter technology. It eliminates the cascade

structure that causes high insertion loss and takes big footprint for fiber routing.The channel

spacing is 100GHz (others are also available upon request). It has ultra-low insertion loss (<1.3 dB)

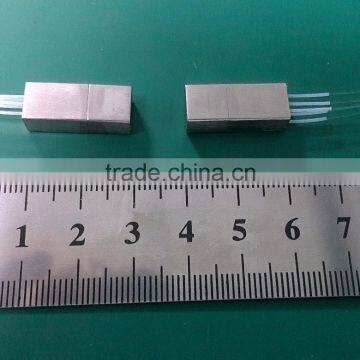

and compact size (6.5x10x25mm) and is a good candidate for DWDM PON applications as well as

DWDM transceivers.

Features:

Bi-Directional
Completely Passive
Low Insertion Loss
Epoxy-free Optical Path
Qualified Telcordia GR-1221, GR1209

RoHS Compliant

Applications

CATV Systems
Telco Networks
Metro Networks
Broadband Systems
Optical Add/Drop Multiplexing

Specifications

Optical Parameters	Specifications
Channel Plan (Wavelength nm)	1539.77,1538.98, and 1538.19, 1537.40nm ITU grid or requested by customers
Passband (0.5 dB)	0.24nm
Insertion Loss (dB)	1.3 (premium) 1.8 (standard)
Polarization Dependent Loss (dB)	≤0.30
Adjacent Channel Isolation (dB)	≥25
Return Loss (dB)	≥45
Channel Uniformity (dB)	<0.6
Mechanical
Dimension (mm)	6.5x9.8x25
Fiber	250 um Corning ClearCurve Fiber with 600um loose tube protection, length TBD
Environmental
Operating Temperature Range (°C)	-5 to 70
Storage Temperature (°C)	-40 to 85
