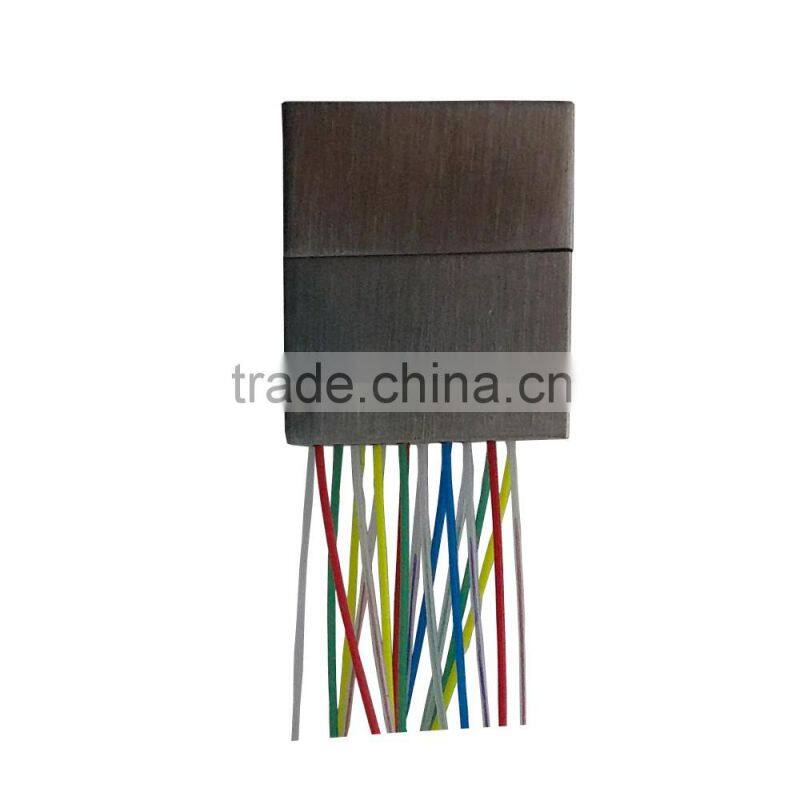

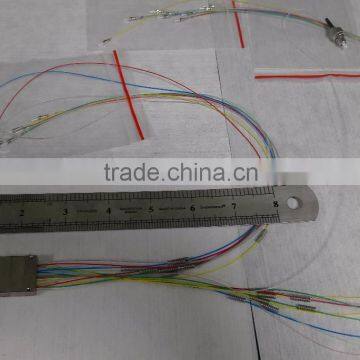

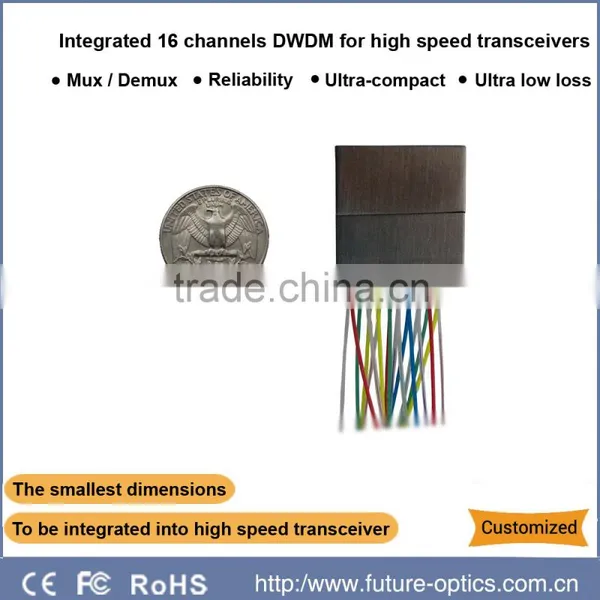

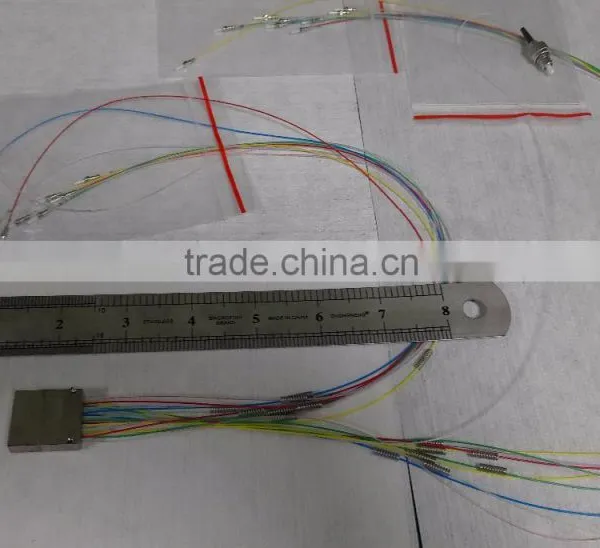

Integrated 16 channels DWDM for high speed transceivers
- 100 Piece / Pieces per Month
- Shanghai Hangzhou
- T/T Credit Card
You May Like
-
Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers
-
Mini 1X8 100GHz DWDM Bi-directional 8 channel based on thin film filter with low insertion loss for future generation GPON
-
Extremely compact and ultra-low insertion 16 channel DWDM for NG-PON2 and high speed transceivers
-
Extremely small and ultra-low insertion loss 4 channels DWDM NG-PON and 100GHz transceivers
-
Extremely small and low insertion loss 18 channels CWDM for high speed transceiver
-
Integrated 4 channels LAN-WDM for 100Gbas transceivers
Product Details
| Brand Name | Future Optics | Model Number | 1x16 DWDM |
Product Description
This DWDM device is based on free space and thin-film filter technology. It eliminates the cascade
structure that causes high insertion loss and takes big footprint for fiber routing.The channel
spacing is 100GHz/200GHz (others are also available upon request). It has ultra-low insertion loss (<2.5 dB)
and compact size ( 6.5x21.0x24.0 mm ) and is a good candidate for DWDM PON applications as well as
DWDM transceivers.
Bi-Directional
Completely Passive
Low Insertion Loss
Epoxy-free Optical Path
Qualified:
Telcordia GR-1221, GR1209
RoHS Compliant
Applications
CATV Systems
Telco Networks
Metro Networks
Broadband Systems
Optical Add/Drop Multiplexing
Specifications
ChannelPlan(Wavelengthnm) | ITU Grid ofS-, C-, or L-band |
Passband(0.5 dB) | ≥0.24nm |
InsertionLoss (dB) | Maximum3.0 (Standard) with uniformity<1.5 Maximum 2.5 (Premium) with uniformity<1.0 |
Polarization Dependent Loss (dB) | 0.30 |
Adjacent Channel Isolation (dB) | 30 |
Non-Adjacent Channel Isolation (dB) | 40 |
Dimension (mm) | 6.5x23.6x31mm |
Fiber | 250 um CorningClearCurveFiber, 0.9mm or 0.6mmloose tube |
Operating Temperature Range(°C) | -5 to 70 |
Storage Temperature(°C) | -40 to 85 |
