Ultra-low Insertion Loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM Transceivers

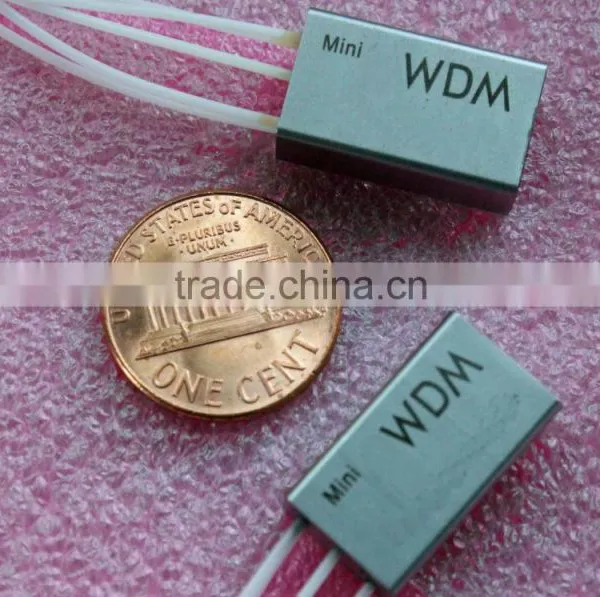

Ultra-low Insertion Loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM Transceivers photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Future Optics
Model Number:
1x4 DWDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Hangzhou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Future Optics
Model Number 1x4 DWDM
Products description:

This DWDM device is based on free space and thin-film filter technology. It eliminates the cascade

structure that causes high insertion loss and takes big footprint for fiber routing.The channel

spacing is 100GHz (others are also available upon request). It has ultra-low insertion loss (<1.3 dB)

and compact size (6.5x10x25mm) and is a good candidate for DWDM PON applications as well as

DWDM transceivers.

 Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers



Features:

Bi-Directional
Completely Passive
Low Insertion Loss
Epoxy-free Optical Path
Qualified Telcordia GR-1221, GR1209

RoHS Compliant



Applications

CATV Systems
Telco Networks
Metro Networks
Broadband Systems
Optical Add/Drop Multiplexing



Specifications

Optical Parameters

 Specifications

Channel Plan (Wavelength nm)

1539.77,1538.98, and 1538.19, 1537.40nm

ITU grid  or requested by customers

Passband (0.5 dB)

 0.24nm

Insertion Loss (dB)

1.3 (premium)
1.8 (standard)

Polarization Dependent Loss (dB)

≤0.30

Adjacent Channel Isolation (dB)

≥25

Return Loss (dB)

≥45

Channel Uniformity (dB)

<0.6

Mechanical



Dimension (mm)

6.5x9.8x25

Fiber

250 um Corning ClearCurve Fiber with 600um

loose tube protection, length TBD

Environmental



Operating Temperature Range (°C)

-5 to 70

Storage Temperature (°C)

-40 to 85





























































production line

Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers             Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers

Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers             Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers

product test

Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers    Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers

 vibration test

Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers    Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers

 temperture test

Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers    Ultra-low insertion loss Mini 1X4 100GHz DWDM Next-Generation PON and DWDM transceivers

 spectrum test
