Help CenterMini 1X8 100GHz DWDM Bi-directional 8 Channel Based on Thin Film Filter With Low Insertion Loss for Future Generation GPON
Related Products
-
Extremely Compact and Ultra-low Insertion 16 Channel DWDM for NG-PON2 and High Speed TransceiversNegotiableMOQ: 10 Pieces -
Extremely Small and Ultra-low Insertion Loss 4 Channels DWDM NG-PON and 100GHz TransceiversNegotiableMOQ: 10 Pieces
-
Extremely Small and Low Insertion Loss 18 Channels CWDM for High Speed TransceiverNegotiableMOQ: 10 Pieces
-
Integrated 4 Channels DWDM for High Speed TransceiversNegotiableMOQ: 10 Pieces
-
Integrated 8 Channels DWDM for High Speed TransceiversNegotiableMOQ: 10 Pieces
Products description:
The development of next generation PON requires 1x8 DWDM (4 channels each direction) with low

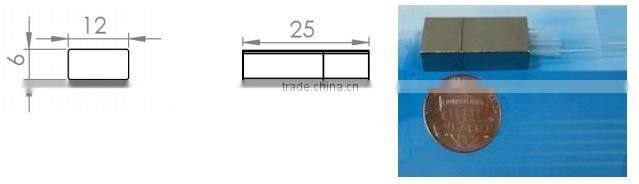

insertion loss. Our 1x8 DWDM devices are compact (6x12x25mm) with extremely low insertion loss(<1.8 dB).
It is based on free-space and thin-film filter technology, which has proven record of high reliability.
Features:
Compact
8 channel DWDM (100G)
Tight sealed
Epoxy free optical path
Applications:
Next generation PON
Specifications:
Optical Parameters | Specifications |
Channel Plan (Wavelength nm) | 1532.68, 1533.47, 1534.25, 1535.04 |
Passband (0.5 dB) | 0.24nm |
Insertion Loss (dB) | 2.0 (Standard), |
Polarization Dependent Loss (dB) | ≤0.30 |
Adjacent Channel Isolation (dB) | ≥25 |
Return Loss (dB) | ≥45 |
Channel Uniformity (dB) | <0.8 |
Mechanical |
|
Dimension (mm) | 6x12x25 |
Fiber | 250 um Corning ClearCurve Fiber with 600um loose tube protection, length TBD |
Environmental |
|
Operating Temperature Range (°C) | -5 to 70 |
Storage Temperature (°C) | -40 to 85 |
Send Inquiry to This Supplier
