NDS3542B Encoder Modulator

Name: NDS3542B Encoder Modulator
Brand: dexin
Availability: InStock

FOB Price

US$ 1 - 2,000 / Set

1 Set(Min. Order)

Port chengdu china
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	dexin
Model Number	NDS3542B

Product Description

Specifications

encoder modulato
MPEG2 HD & MPEG4 AVC H.264 HD video encoding
DD AC3 (2.0), AAC, MP2 audio encoding
4xHDMI/YPbPr/cvbs in

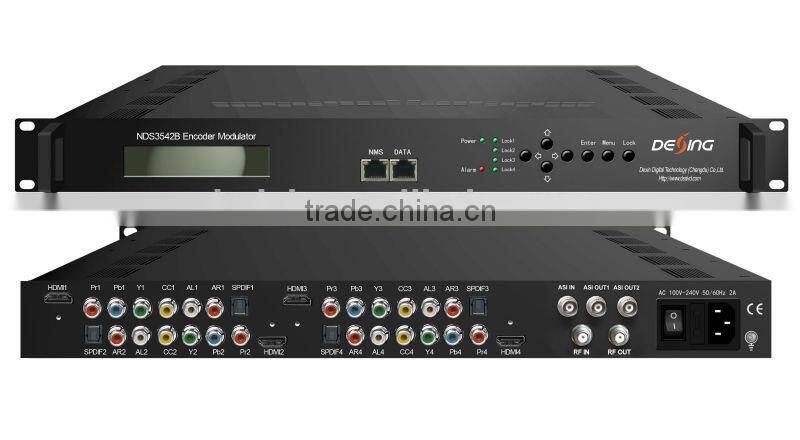

NDS3542B Encoder Modulator

Outline

NDS3542B series products are DEXIN’s all-in-one devices which integrate encoding (MPEG-2, MPEG-4/AVC H.264) and modulation to convert HDMI/YPbPr /CVBS (Pr in) signals etc to digital RF output.

To meet customers’ various requirements, NDS3542B is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.

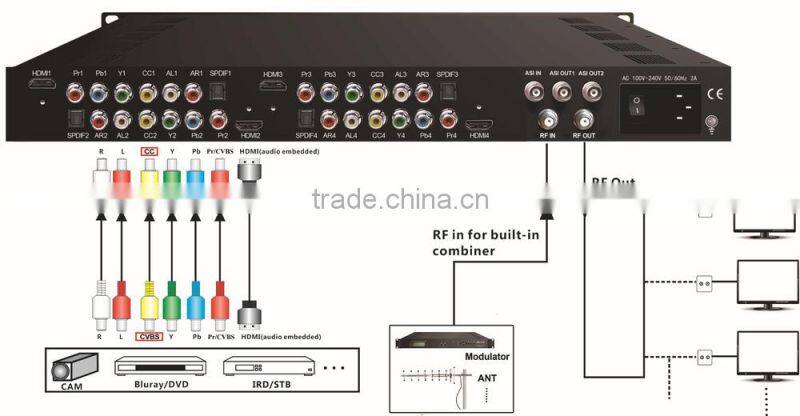

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.

Dexin NDS3542B series products are wildly used in public places such as metro, market hall, theatre, hotels, restaurants and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more .

Features

n MPEG2 HD & MPEG4 AVC H.264 HD video encoding

n DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding

n Support DD AC3 (2.0/5.1/7.1) passthrough

n 4* HDMI/YPbPr/CVBS (Pr in) channels in

n 1*ASI in for re-mux; 1*RF in for RF mix

n 2*DVB-T RF out (4* DVB-C RF out optional); ASI out; IP out

n Support CC (Closed Caption) EIA608, (from CVBS source only)

n Support Low Delay

n LCN (Logical Channel Number) support

n Excellent modulation quality

n LCD display, Remote control and firmware

n Web-based NMS management; Updates via web

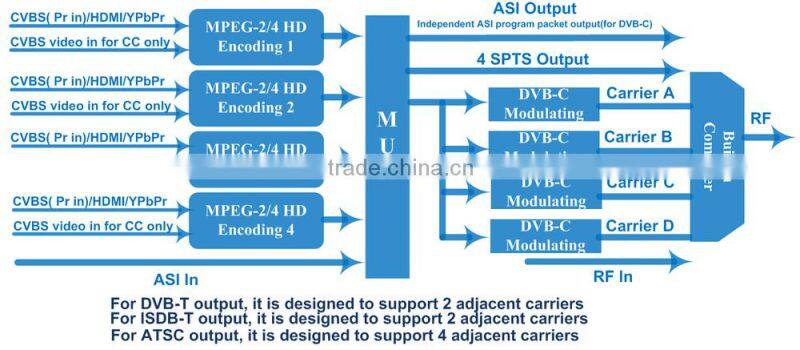

Principle Chart

Specifications

Encoding Section
Video (HDMI)
Encoding	MPEG2; MPEG4 AVC/H.264
Interface	HDMI*4
Resolution	19201080_60P, 19201080_50P (For MPEG 4 AVC/H.264 only) 19201080_60i, 19201080_50i, 1280720_60p, 1280720_50P
Low Delay	Normal, Mode 1, Mode 2
Aspect Ratio	4:3; 16:9
Audio (HDMI)
Encoding	MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3 (2.0); DD AC3 (2.0/5.1/7.1) passthrough
Interface	HDMI*4 (SPDIF Not Applicable)
Sample rate	48KHz
Bit rate	64/96/128/ 192/256/320kbps
Video (CVBS/YPbPr)
Encoding	MPEG2; MPEG4 AVC/H.264
Interface	CVBS/YPbPr*4 (RCA)
Resolution	CVBS: 720576_50i, 720480_60i YPbPr: 19201080_60i, 19201080_50i; 1280720_60p, 1280720_50P
Audio (L/R)
Encoding	MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough
Interface	4Stereo/8mono (SPDIF Not Applicable)
Sample rate	48KHz
Bit rate	64/96/128/ 192/256/320kbps
DVB-T Modulator Section (Option)
Standard	EN300744
FFT mode	2K, 8K
Bandwidth	6M, 7M, 8M
Constellation	QPSK, 16QAM, 64QAM
Guard Interval	1/4, 1/8, 1/16, 1/32
FEC	1/2, 2/3, 3/4, 5/6, 7/8
MER	≥42dB
RF frequency	30~960MHz, 1KHz step
RF out	COFDM DVB-T out (2 carriers combined out)
RF output level	-30~ -10dbm (81~97 dbµV), 0.1db step

DVB-C Modulator Section (Option)
Standard		J.83A (DVB-C), J.83B, J.83C
MER		≥43dB
RF frequency		30~960MHz, 1KHz step
RF output level		-30~ -10dbm (77~97 dbµV), 0.1db step
Symbol rate		5.000~9.000Msps adjustable
RF Out		4*DVB-C adjacent carriers combined output
	J.83A				J.83B	J.83C
Constellation	16/32/64/128/ 256 QAM				64/ 256 QAM	64/ 256 QAM
Bandwidth	8M				6M	6M
ISDB-T Modulator Section (Option)
Standard ARIB STD-B31
Constellation DQPSK,QPSK, 16QAM, 64QAM
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 4K, 8K
Guard Interval 1/32, 1/16, 1/8, 1/4
Code rate 1/2, 3/4, 5/6, 7/8
RF frequency 30~999MHz, 1KHz step
ATSC Modulator Section (Option)
Standard		ATSC A/53
Constellation		8 VSB
RF output level		-30~ -10dbm (77~97 dbµV), 0.1db step
MER		≥42dB
RF frequency		30~999MHz, 1KHz step
System
Local interface			LCD + control buttons
Remote management			Web NMS
Stream Out			2 ASI mirrored out (BNC type, 100M); IP (4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M)
NMS interface			RJ45, 100M
Language			English
General
Power supply				AC 100V~240V
Dimensions				48240044mm
Weight				4.5 kg
Operation temperature				0~45℃
