Product Overview

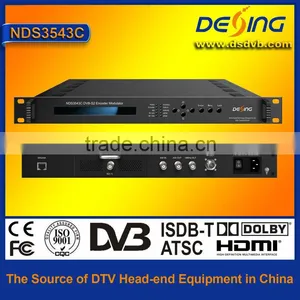

NDS3543C DVB-S/S2 Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input for program re-mux. It outputs ASI and DVB-S/S2 RF (IF Optional) in the same time.
The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543C is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
nMPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
nCVBS/SDI/HDMI/YPbPr…signals in optional, pluggable and changeable encoding modules
n1*ASI in
nSupport DVB-S/S2 RF (IF Optional) output and ASI output
nLCN support (Logical Channel Number)
nOutput Frequency: 950-2150MHz; IF: 50-200MHz
nLow latency achieved
nSupport BISS fucntion
nSupport RF 24V power output
nSupport 10MHz reference clock
nSupport Web NMS and front panel LCD & Keyboard control
nUpgrade device through web NMS
Principle Chart
System Connection Sample
Technical Specifications
HDMI/YPbPr/CVBS 3-in-1 Encoding Input
Low Latency support
Video (HDMI) | |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
HDMI*1 |
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
Audio (HDMI) | |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
Interface |
HDMI*1 |
Sample rate |
48KHz |
Bit rate |
64/96/128/ 192/256/320kbps |
Video (YPbPr/CVBS) | |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
YPbPr*1/CVBS *1 |
Resolution |
CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
Audio (L/R) | |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
Interface |
1*Stereo/2*mono |
Sample rate |
48KHz |
Bit rate |
64/96/128/ 192/256/320kbps |
Single SDI Encoding Input Low Latency support
Video
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Input |
SDI*1 |
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
Sample rate |
48KHz |
Bit rate |
64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
Dual SDI Encoding Input
Video
Encoding |
H.264 |
Input |
SDI*2 |
Resolution |
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
encoding |
MPEG1 Layer II |
Sample rate |
48KHz |
Bit rate |
64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
Single HDMI Encoding Input Low Latency support
Video
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Input |
HDMI*1 |
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
Sample rate |
48KHz |
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
2*(S-Video + YPbPr + CVBS) Encoding Input (Low Latency Function Optional)
Video
Encoding |
Option 1: MPEG-2 MP@ML(4:2:0) Option 2: MPEG-2 & MPEG-4 AVC/H.264 (4:2:0) |
Input |
S-Video/YPbPr/CVBS*2 (RCA Type) |
Resolution |
720*576 (PAL); 720*480 (NTSC) |
Bit rate |
1.000~19.500 Mbps |
Audio
encoding |
Option 1:MPEG1 Layer II Option 2: MPEG1 Layer II; LC-AAC; HE-AAC and Dolby Digital AC3 2.0 (Optional) |
Input |
Unbalanced 2 Stereo/Mono |
Sample rate |
48KHz |
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
