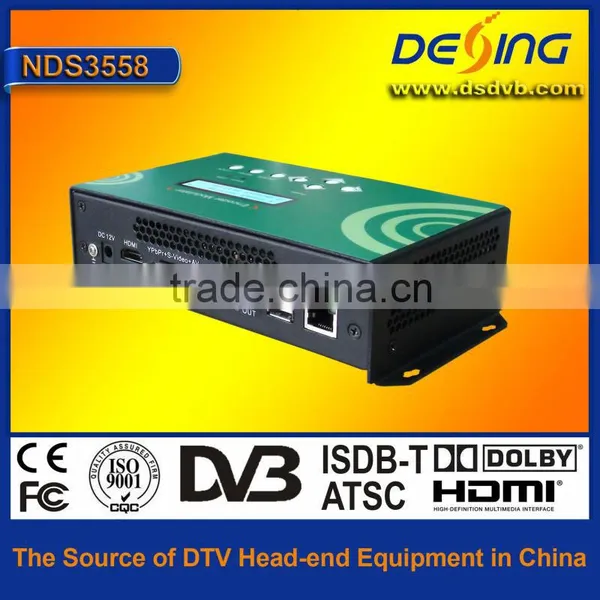

NDS3558 HD/SD DVB-TModulator

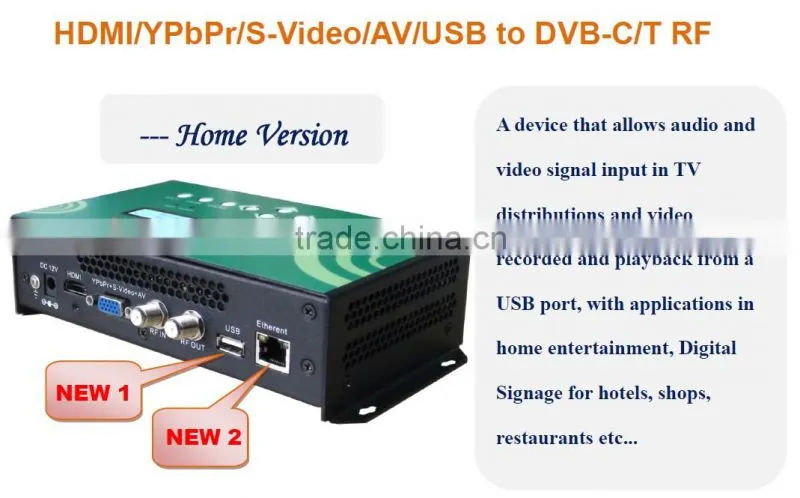

HDMI/YPbPr/S-Video/AV/USB to DVB-C/T RF
Product Introduction
NDS3558 series encoder & modulator is DEXIN’s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-C/DVB-T RF out.
The USB port is designed to record encoded video (TS) and save it in ts files in the USB Keys or Hard Disks, and then the ts files can be playback through the USB port. The ts files can be also generated on a computer with our TS Creator.exe program.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, antenna and a USB key or Hard Disk etc. Its output signal is to be received by TV sets or STBs etc.
Key Features
n HDMI/YPbPr/S-Video/AV input for encoding
n MPEG4 AVC/H264 HD/SD video encoding,
n MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC audio encoding optional
n Record encoded TS and playback TS files (*.ts) through USB port
n DVB-C, DVB-T RF output optional
n Transmission mode (FFT): 2K, 8K (applied in DVB-T modulation)
n Enhanced USB function: more stable and compatible with Hard Disks and USB Keys of various brand
n USB device error self-detection and removal, ensure USB device running uninterrupted
n Easy operation with LCD + control buttons, and Web-based Server management

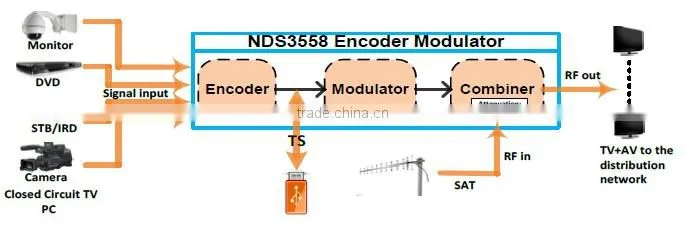

Principle Chart
TS Creator.exe Download link:
/share/link?shareid=2908902623&uk=4230600371
Download path: English→Tool→TS Creator xxx.rar
Technical Specifications
Typical Applications
