Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > 24V Out Dvb-s2 Encoder Modulator

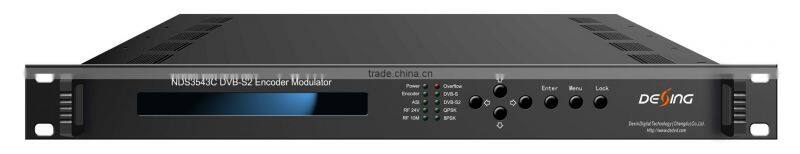

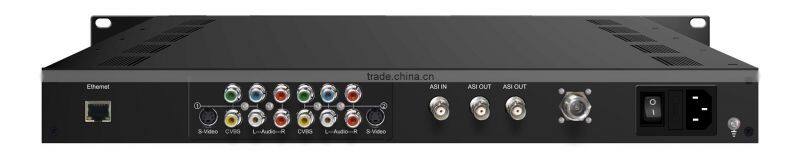

24V Out Dvb-s2 Encoder Modulator

Name: 24V Out Dvb-s2 Encoder Modulator
Brand: DEXIN
SKU: 132548235
Availability: InStock

24V Out Dvb-s2 Encoder Modulator thumbnail-1

24V Out Dvb-s2 Encoder Modulator photo-1

US$ 1 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

DEXIN

Model Number:

NDS3543C

Contact Supplier Request Quote Chat Now

Dexin Digital Technology Corp. Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name DEXIN

Model Number NDS3543C

Specifications

DVB-S2 encoder modulator
RF 24V output
DSNG head end
MPEG2 HD H.264 HD ecoder , DVB-S2 modulation
cost effective

NDS3543C DVB-S2 Encoder Modulator

Product Overview

NDS3543C DVB-S/S2 Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input for program re-mux. It outputs ASI and DVB-S/S2 RF (IF Optional) in the same time.

The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543C is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.

Key Features

nMPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional

nCVBS/SDI/HDMI/YPbPr…signals in optional, pluggable and changeable encoding modules

n1*ASI in

nSupport DVB-S/S2 RF (IF Optional) output and ASI output

nLCN support (Logical Channel Number)

nOutput Frequency: 950-2150MHz; IF: 50-200MHz

nLow latency achieved

nSupport BISS fucntion

nSupport RF 24V power output

nSupport 10MHz reference clock

nSupport Web NMS and front panel LCD & Keyboard control

nUpgrade device through web NMS

Principle Chart

System Connection Sample

Technical Specifications

HDMI/YPbPr/CVBS 3-in-1 Encoding Input

Low Latency support

Video (HDMI)
Encoding	MPEG2; MPEG4 AVC/H.264
Interface	HDMI*1
Resolution	19201080_60P, 19201080_50P, (-for MPEG4 AVC/H.264 only) 19201080_60i, 19201080_50i, 1280720_60p, 1280720_50P
Audio (HDMI)
Encoding	MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC
Interface	HDMI*1
Sample rate	48KHz
Bit rate	64/96/128/ 192/256/320kbps
Video (YPbPr/CVBS)
Encoding	MPEG2; MPEG4 AVC/H.264
Interface	YPbPr1/CVBS 1
Resolution	CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 19201080_60i, 19201080_50i; 1280720_60p, 1280720_50P
Audio (L/R)
Encoding	MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC
Interface	1Stereo/2mono
Sample rate	48KHz
Bit rate	64/96/128/ 192/256/320kbps
