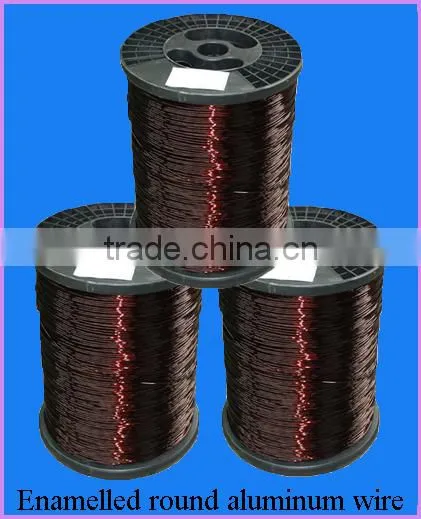

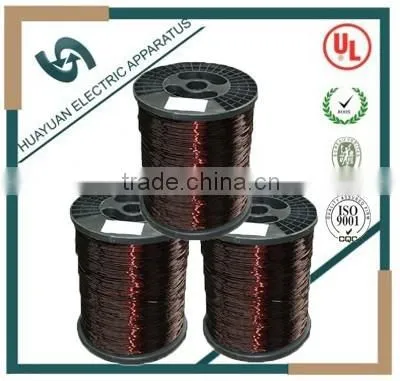

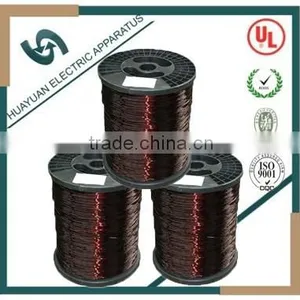

2014 NEW Technology Enamelled Aluminium Round Wire

Name: 2014 NEW Technology Enamelled Aluminium Round Wire
Brand: HUAYUAN
SKU: 132515399
Availability: InStock

US$ 3.41 - 6.05 MOQ: 500 Kilograms

Key Specifications

Place of Origin:

Henan, China

Brand Name:

HUAYUAN

Model Number:

Q(Z/XY)L-2/200

Xuchang Huayuan Electric Apparatus Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjing / Shanghai / Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HUAYUAN

Model Number Q(Z/XY)L-2/200

Type Insulated

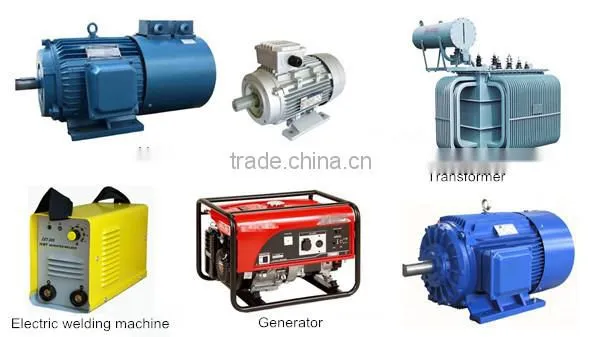

Application Other, Transformer,Generator

Conductor Material Aluminum

Conductor Type Solid

Insulation Material Enameled

Specifications

1.Size:1.00mm-8.00mm
2.Standard: NEMA, GB, IEC
3.High temperature resistance
4.Good mechanical properties

Product Description

Specification:

Conductor: aluminum.
Diameter: 1.0-8.0mm.
Standard: IEC, NEMA, GB,JIS.
Thermal Class: 180/200/220 centigrade.

Enamelled types : UEW,EIW,AIW,PE and so on.
Certification: SGS, UL Approved; iso9001, iso14001,RoHS Certificated.

Detailed information

Enameled Type	polyester-imide	Polyamide-imide	polyester-imide /Polyamide-imide
Product Type	EIW/180	EI/AIW/200	EIW(EI/AIW)220
Thermal Class(°C)	180	200	220
Conductor	Aluminum	Aluminum	Aluminum
Size(mm)	1.0-8.0	1.0-8.0	1.0-8.0
Insulation Grade	Grade1	Grade1	Grade1
	Grade2	Grade2	Grade2
	Grade3	Grade3	Grade3
Standard	IEC60317-0-2	IEC60317-0-2	IEC60317-0-2
	IEC60317-29	IEC60317-29	IEC60317-29
	MW36-A	MW36-A	MW36-A

Advantages of aluminium enamelled winding wire:

1.High quality and low price.

2.High breakdown voltage.

3.Good mechanical properties.

4.Professional production and sales team.

5.IEC/GB/JIS/NEMA standards approved.

6.Excellent resistance to abrasion and solvent.

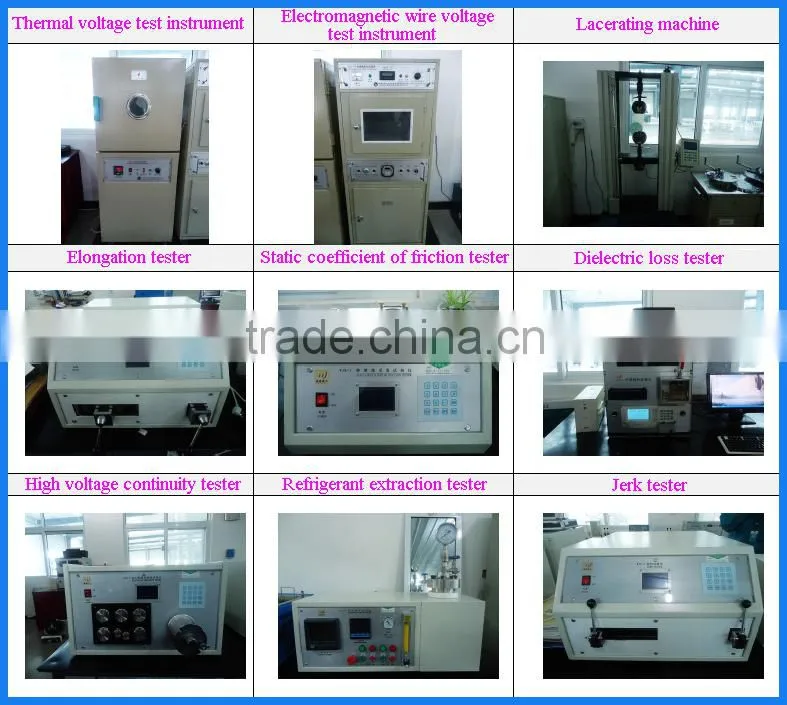

Test Report

Name	enameled aluminum wire
Type	Q(Z/XY)L-2/200
Diameter	1.151mm
Standard	MW35-A
Test Item	Unit	Technical Requirement	Test Result
Appearance		bright and clean, Uniform color,	Ok
Overall Diameter	mm	<1.240	1.232
Conductor Diameter	mm	1.138-1.163	1.153
Thickness of insulation film	mm	>0.071	0.079
resistance	Ω/m	<0.02765	0.02684
Elongation		>15%	33%
winding test		no cracking	Ok
Tensile Test		15% No cracking	no cracking
Peel twist		insulation film Without losing adhesion	Ok
Jerk test		insulation film Without losing adhesion	Ok
Resistance to heat shock	°C	220 °C insulation film no cracking	Tensing 15% half an hour, no cracking
Resistance to solvent		Standard solvent “H” Pencil	2H is ok
Breakdown Voltage	KV	> 5.85KV	8.0,8.1,7.6,7.5,8.5

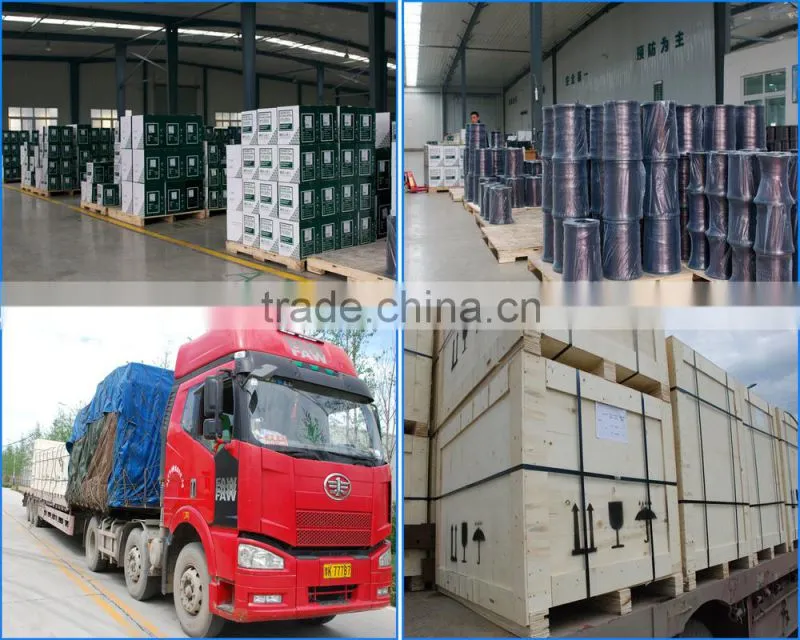

package		Meet the export standards	Ok
Quality Control Result		Ok
