paper covered copper magnet wireSpecification; a 0.8-5.0mm;b 2.0-16mm
Standard: IEC GB NEMA
Feature: uniform wrapping

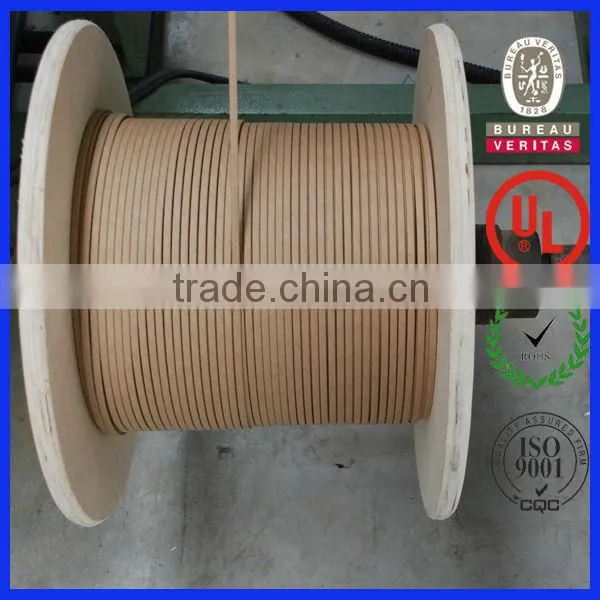

UL Approved AWG/SWG paper covered copper magnet wire
1.Size of paper covered copper magnet wire
a 0.8—5.0mm
b 2.0—16mm
2.Thermal class of paper covered copper magnet wire
90/105/ 120 /130 /180/ 220
3.Insulation materials of paper covered copper magnet wire
4. Standards of paper covered copper magnet wire
IEC GB NEMA
5. Insulation Thickness of paper covered copper magnet wire
0.27mm, 0.33mm, 0.45mm or according the customer requirement
6. Characteristics of paper covered copper magnet wire
Uniform ,Fastness wrapping, tightness, uniformity, without drape
7. Applications of paper covered copper magnet wire
Oil-immersed Transformer
Reactor
Generator and other electric devices
8. Packing
Inner packing: different wooden spool according to wire guage
Out packing: wooden cases or according the requirement of customer
9.Test equipment ensure paper covered copper magnet wire that are qualified
10.Test report of paper covered copper magnet wire
Name |
paper covered copper magnet wire |
|||
Diameter |
3.6mm*8.5mm |
|||
Standard |
GB/T7673.3-2008 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
Uniform, no missing layer, no wrinkling and cracking |
Ok |
|
Bare Conductor |
a |
mm |
±0.05 |
3.605 |
b |
mm |
±0.07 |
8.495 |
|
Thickness of insulation film |
mm |
0.405----0.45 ----0.50 |
0.48 |
|
springback angle |
° |
The springback Angle of conductors less than 5° |
4.6 |
|
Resistivity (20°C) |
Ω.mm2/m |
≤0.017241 |
0.017160 |
|
Elongation |
% |
a:nominaldiameter(mm) ≤2.5 30% >2.5 32% |
45% |
|
Wrapped overlapped |
mm |
≥2 |
2.3 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
9. Best service
1) .Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2). We issued test reports for every shipment.
3). You can enjoy discounting and priority to produce first after you become to be our regular client.
10. Company Advantage
1). About 20 years manufacture experiences.
2).paper covered copper magnet wire Audit by UL Company and BV Company
3). We have a big Quality Control Team and can guarantee the quality and time of delivery
4). Many trade companies place orders from us.
