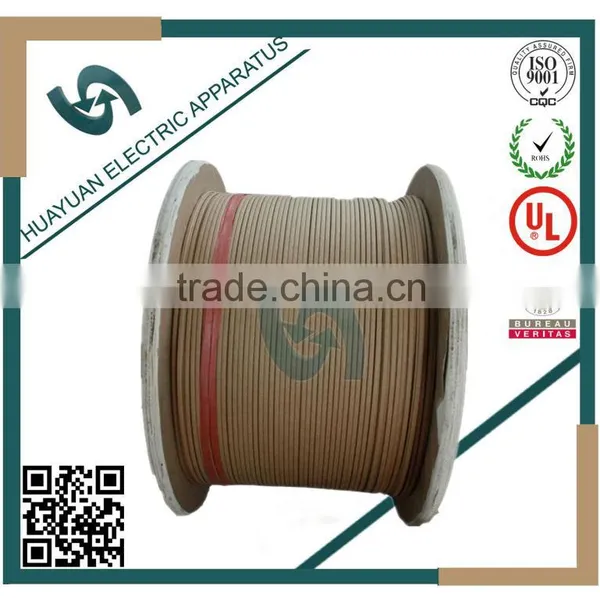

Super quality telephone Paper Covered Wire
| Enamelled round aluminum wire |
| Enamelled rectangular aluminum /copper wire |
| Kraft/Telephone paper covered aluminum /copper wire |
| 3M covered aluminum /copper wire |
| Nomex (Dupont) covered aluminum/copper wire |
| Non Woven fibric and film warpped aluminum/copper wire |
| Glass fiber covered copper/aluminum round and rectangular wire |
| Ultra fine enamelled rectangular copper wire |
| Enamelled square aluminum/copper wire |
Product detail picture
| Enameled aluminum round wire |
| Enameled aluminum flat wire |
| Paper covered aluminum wire |
| Paper covered copper wire |
| 3M paper covered aluminum wire |
| Telephone paper covered aluminum wire |
| Dupont covered aluminum wire |
| Single-layer glass fiber covered aluminum wire |
| Single-layer glass fiber covered copper wire |
| Double-layer glass fiber covered aluminum wire |
| Double-layer glass fiber covered copper wire |
1. Characteristics of Paper covered wire
| 1) Corrosion resistance |
| 2) Radiation resistance |
| 3) High dielectric strength |
| 4) Low temperature resistance |
| 5) Good mechanical properties |
2. Paper covered wire specifications
P
|
Name
|
paper covered copper wire |
|
Feature |
level wrapping |
|
Material |
Bare copper wire or squeeze bare flat wire confirms the National standard, smooth surface, low resistance. |
Standards |
IEC,NEMA,GB |
|
Application
|
major apply to oil-immersed transformer |
|
Specification
|
rectangular wire a:1—10mm;b:2.0—16mm |
|
Resistivity
|
0.017Ω.mm2/m |
|
Breakdown voltage
|
560V |
|
Appearance
|
Fastness wrapping, tightness, uniformity, without drape |
|
Packing
|
Wooden spool, apply for custom specification |
3.Test reports of Paper covered wire:
Name |
paper covered aluminum wire (copper) |
|||||
Type |
ZBL |
|||||
Diameter |
5.00×18.00mm |
|||||
Standard |
GB/T7673.3-2008 |
|||||
Test item |
Unit |
Technical Requirement |
Test Result |
Single conclusion |
||
Appearance |
|
Fastness wrapping, tightness, uniformity, without drape |
OK |
OK |
||
|
Conductor Diameter |
Broad side |
mm |
±0.05 |
5.02 |
OK |
|
Narrow side |
mm |
±0.10 |
18.01 |
OK |
||
|
Thickness of insulation film
|
mm |
0.405-0.45-0.50
|
0.44 |
OK |
||
Resistance |
Ω/m |
aluminum≤0.02785 |
0.02754 |
OK |
||
Elongation |
|
>17% |
40% |
OK |
||
Overlap lapping |
mm |
≥2 |
2.3 |
OK |
||
Winding bend |
|
According to both sides talks things over |
Without edge Wrapping |
OK |
||
Packing |
|
Meet the export standard |
OK |
OK |
||
Quality control result |
|
OK |
||||

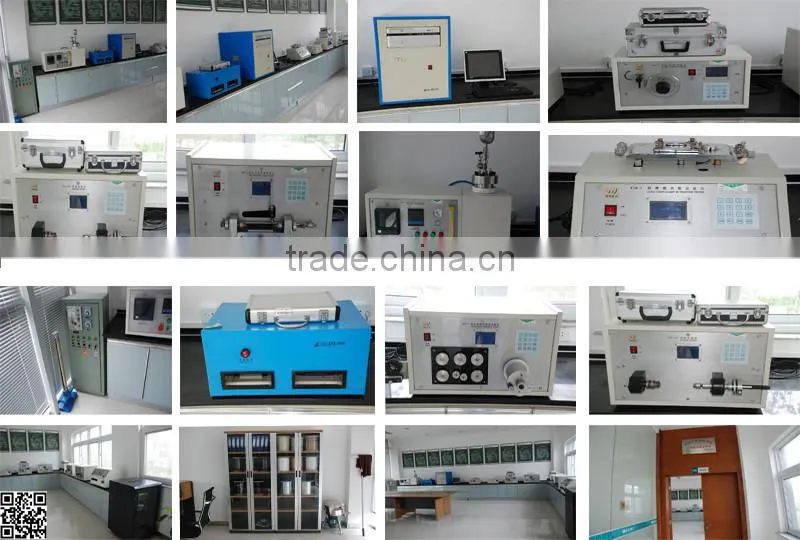

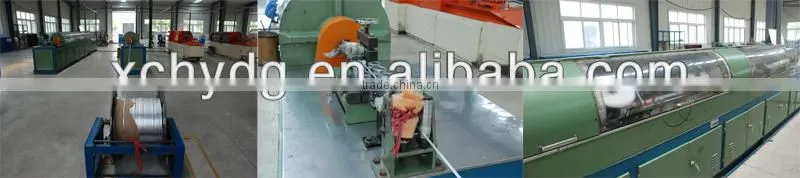

Equipments are being used testing Paper covered wire

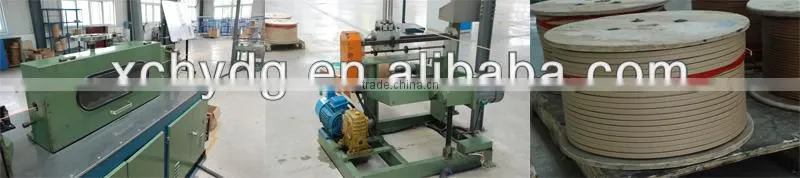

4. Produce process of paper covered wire
pay off straightener winding wire
cable traction belt take up finished products
Huayuan Paper covered wire
5. Importing Paper covered wire from Huayuan , you will be enjoyed best service as follows:
1) Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2) We issued test reports for every shipment.
3) You can enjoy discounting and priority to produce first after you become to be our regular client.
6.Our Company Advantage:
1) About 20 years Paper covered wire manufacture experiences.
2) Been Audit by UL Company and BV Company
3) We have a big Quality Control Team and can guarantee the quality and time of delivery
4) Many trade companies place orders from us.
|
1) The largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters |
|
2) BV approved professional manufacturer of aluminium wire. We process in high quality only |
| 3) The vanish use is ELANTAS to gurantee the quality |
|
4) Factory have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification |
| 5) Some of our products are UL listed (OBMW2.E317671) |
| 6) Free samples can be sent to test quality |
7.Why choose us:
1) We do everything we can to make our products better. We never reduce the quality of a product to make it cheaper.
2) We believe that what is best for our customer is best for all of us. Our sales and service people are trained to know our products and to be friendly and helpful. They are urged to take all the time necessary to take care of you. They follow the minutest details of your order instructions.
3) We are Paper covered wire manufacturer and be able to sell at lower prices because we are the factory. That means you are buying from the factory and all unnecessary costs are eliminated
Application of Paper covered wire
|
Q1. Different thermal class wire, whether their price is the same ? Their price is different based on different thermal class, because the varnish is different. |
|
Q2. Why we need our customer tell the insulation thickness ? Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC /NEMA. |
|
Q3. If I order today, how long it takes for the shipment ? If customized order will ship the goods within 5-15days also depend on the quantity. |
|
Q4. Can u provide customized specifications ? Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm- 5.0mm, Width(b): Φ2-16mm . |
