12 Awg paper covered wire conductor copper class 105c
- 500 Ton / Tons per Month
- Shanghai Tianjin Qingdao
- T/T D/P D/A Credit Card
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Henan, China | Brand Name: | HUAYUAN | Model Number: | ZB-HY-D-02 |
Type: | Insulated | Application: | Other, Oil-immersed Transformer Reactor Generator | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | Other, telephone cable paper, NOMEX,3M paper |
Product Description
Specifications
awg paper covered wireSpecification; a 0.8-5.0mm;b 2.0-16mm
Standard: IEC GB NEMA
Feature: uniform wrapping

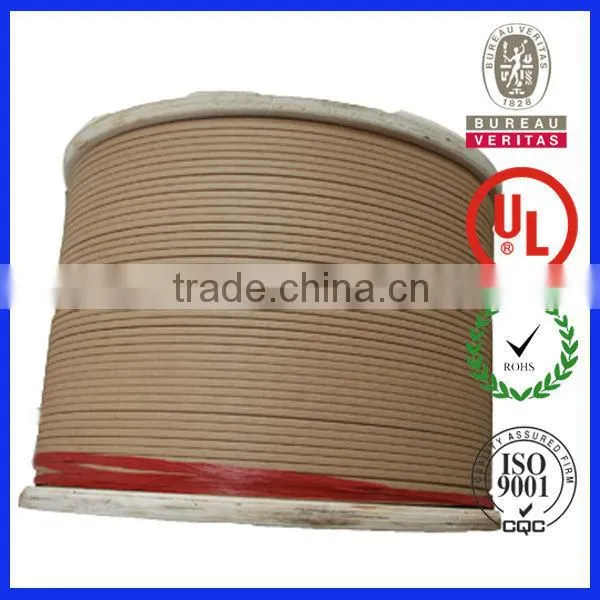

12 Awg paper covered wire conductor copper class 105c
1.Size of telephone paper covered copper wire
a 0.8—5.0mm
b 2.0—16mm
2.Thermal class of telephone paper covered copper wire
90/105/ 120 /130 /180/ 220
3.Insulation materials of telephone paper covered copper wire
4. Standards of telephone paper covered copper wire
IEC GB NEMA
5. Insulation Thickness of telephone paper covered copper wire
0.27mm, 0.33mm, 0.45mm or according the customer requirement
6. Characteristics of telephone paper covered copper wire
Uniform ,Fastness wrapping, tightness, uniformity, without drape
7. Applications of telephone paper covered copper wire
Oil-immersed Transformer
Reactor
Generator and other electric devices
8. Packing
Inner packing: different wooden spool according to wire guage
Out packing: wooden cases or according the requirement of customer
9.Test equipment ensure telephone paper covered copper wire that are qualified
10.Test report of telephone paper covered copper wire
Name | paper covered copper wire | |||
Diameter | 3.6mm*8.5mm | |||
Standard | GB/T7673.3-2008 | |||
Test Item | Unit | Technical Requirement | Test Result | |
Appearance |
| Uniform, no missing layer, no wrinkling and cracking | Ok | |
Bare Conductor | a | mm | ±0.05 | 3.605 |
b | mm | ±0.10 | 8.495 | |
Thickness of insulation film | mm | 0.405----0.45 ----0.50 | 0.48 | |
springback angle | ° | The springback Angle of conductors less than 5° | 4.6 | |
Resistivity (20°C) | Ω.mm2/m | ≤0.017241 | 0.017160 | |
Elongation | % | a:nominaldiameter(mm) ≤2.5 30% >2.5 32% | 45% | |
Wrapped overlapped | mm | ≥2 | 2.3 | |
package |
| Meet the export standards | Ok | |
Quality Control Result |
| Ok |
11. Best service
1) .Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2). We issued test reports for every shipment.
3). You can enjoy discounting and priority to produce first after you become to be our regular client.
12. Company Advantage
1). About 20 years manufacture experiences.
2). Telephone paper covered copper wire Audit by UL Company and BV Company
3). We have a big Quality Control Team and can guarantee the quality and time of delivery
4). Many trade companies place orders from us.
