Specifications
1.20 years history2.ELANTAS VANISH
3.On-line minitoring system
4.Good management
5.insulated winding copper wire
UL approved insulated winding copper wire for motor
1. Feature of insulated winding copper wire
1) High temperature resistance
2) Chemical corrosion resistance
3) Transformer oil resistance
4) Radiation resistance
5) High breakdown voltage
6) Good mechanical properties
2. Specifications of insulated winding copper wire
Diameter: Round wire: Φ1.0-8.0mm
Flat wire: Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm
Our factory can produce all the sizes as follows:
1). Class 130 polyester enameled wire, PEW /130
2). Class 155 modified polyester enameled wire, PEW/155
3). Class 180 polyesterimide enameled wire, EIW/180
4). Class 200 polyester-imide / polyamide-imide enameled wire, EI/AIW200
5). Class 130 /155/ 180 polyurathane enameled wire, UEW 130/ 155 /180

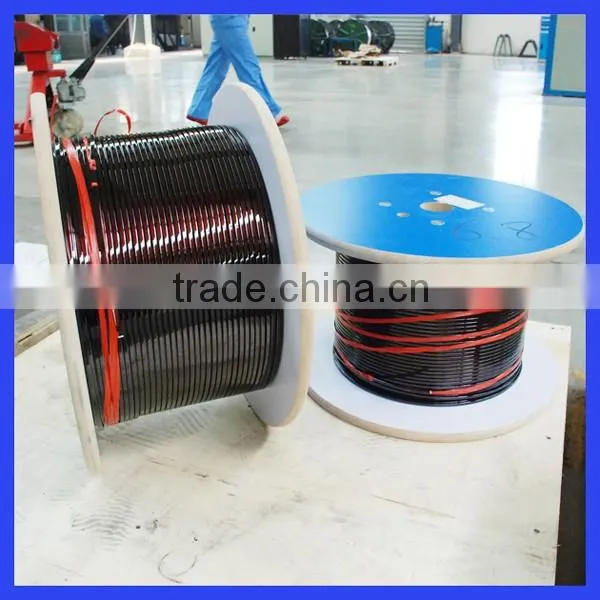

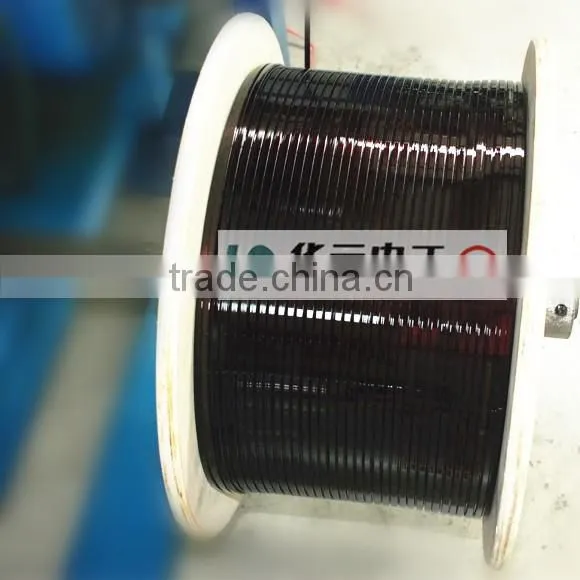

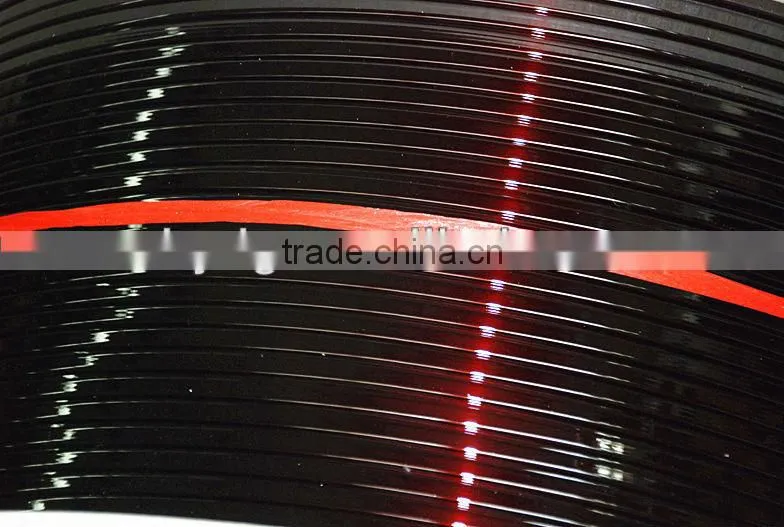

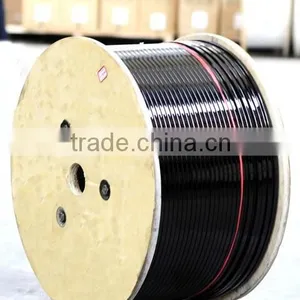

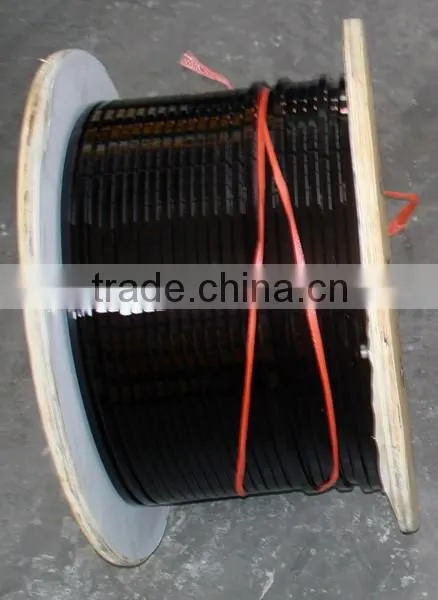

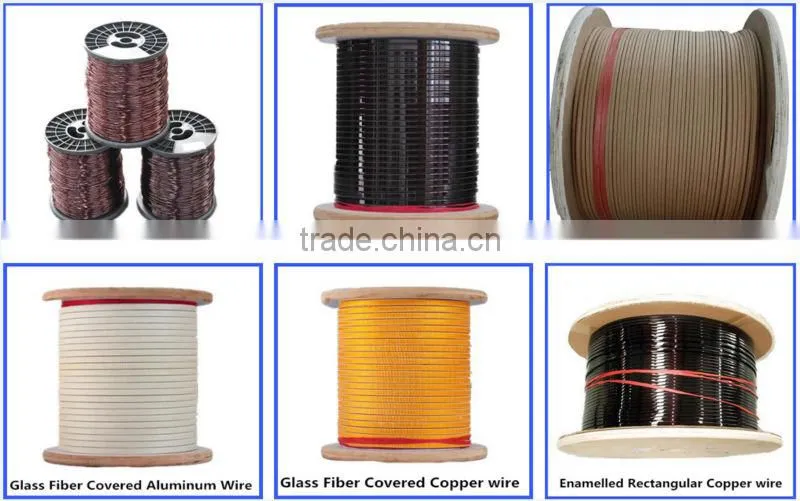

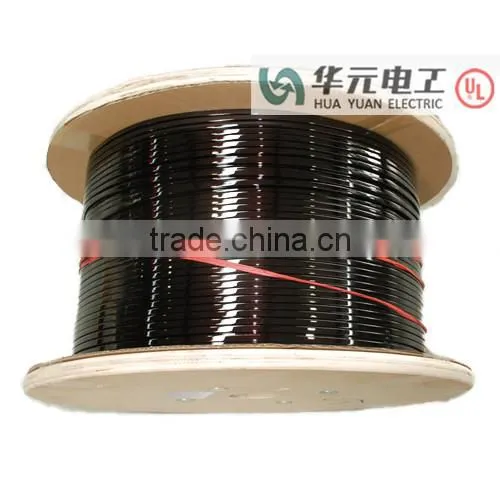

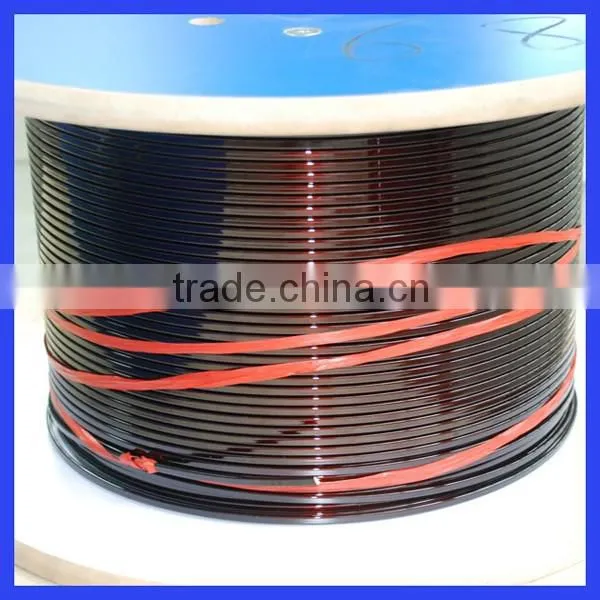

Product detail picture
3. Material of insulated winding copper wire
1) Bare aluminium/copper wire or squeeze bare flat wire confirm the National standard, smooth surface, low resistance.
2) Good performance Polyesterimide insulation vanish(class 180)
3) Good performance Insulation vanish, polyester or polyesterimide insulation vanish as undercoat, Polyamide-imide as top finish (class 200)
4. Standard of insulated winding copper wire
IEC
NEMA
GB

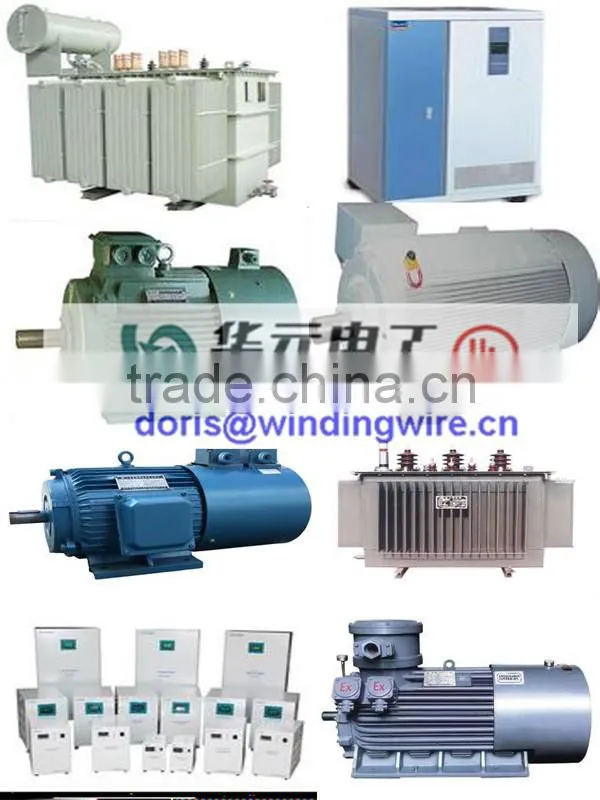

5. Application of insulated winding copper wire
a) Class 180: Polyesterimide enameled round and flat aluminum/copper wire class180 have good performance of heat shock. Resistant to high cut-through temperature, excellent mechanical strength .With the feature of both solvents resistance and refrigerants resistance. It can be widely used in electrical equipments which require high performance of heat resistance.
Typical applications include:
Electric motor
Instrument
Dry transformer
Generator
UPS power source
Electric welding machine
b) Class 200: Polyester or polyestermide covered with polyamide-imide enameled round and flat aluminium/copper wire class 200 show superior performance in the application including extreme environment application.
Typical applications include:
Motor
Transformer(include oil-immersed transformer)
Refrigerating System
C motor
UPS power source
Certifications of insulated winding copper wire
UL, ISO9001, ROHS, Bureau Veritas

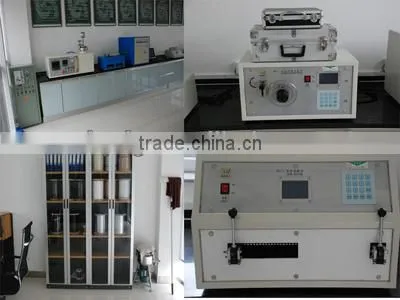

Test machines to test insulated electric wire

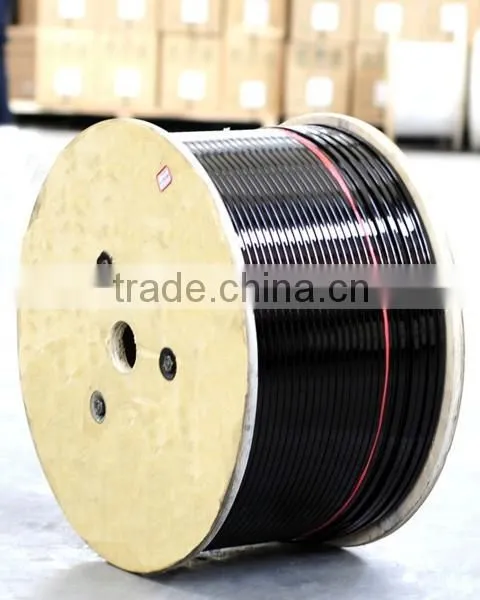

Inner packing: different plastic spool according to wire diameter (Plastic spool of PT-30 PT-60,PT-90,PT-200,PT-250,PT-270), big wire gauge and flat wire use Plywood wooden spool
Film: High quality water-proof heat shrinkage film covered wire spools
Packing: Plastic spool loading in custom-made export carton then pack in Plywood Cases, at last bind it with Steel Strip
You can choose natural packing or based on customers' requirement
1) Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2) We issued test reports for every shipment.
3) You can enjoy discounting and priority to produce first after you become to be our regular client.
Q1. Different thermal class wire, whether their price is the same?
Their price is different based on different thermal class, because the varnish is different.
Q2. Why we need our customer tell the insulation thickness?
Our customers can tell us the insulation thickness or the reference standards, such as GB/IEC /NEMA.
Q3. If I order today, how long it takes for the shipment?
If customized order will ship the goods within 5-15days also depend on the quantity.
Q4. Can u provide customized specifications?
Yes, we can. Round wire diameter 1.00-8.00mm Flat wire Thickness (a): Φ0.8mm-5.0mm, Width (b): Φ2-16mm

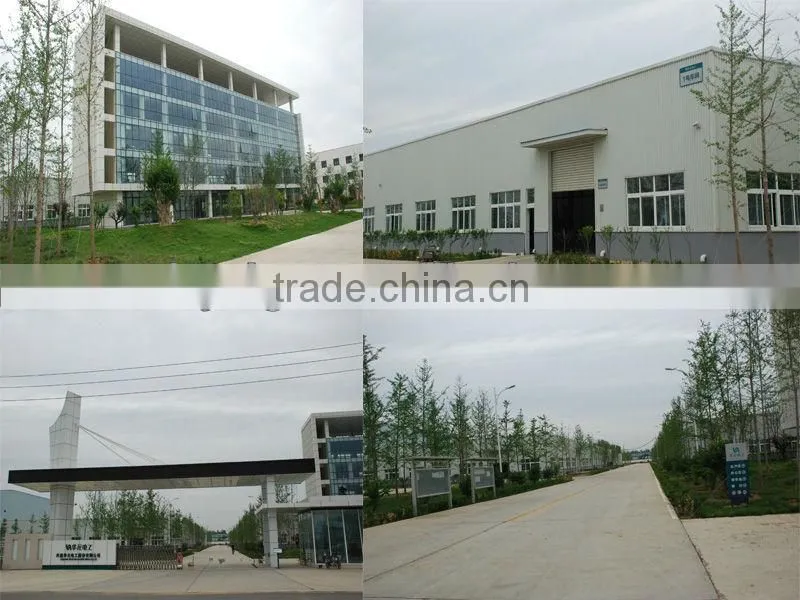

Xuchang Huayuan Magnet Wire Co.,Ltd is established in 1993 and we have developed to a professional manufacture of enameled wire and paper covered aluminum wire as well as fiber-glass covered aluminum wire. Our 100,000 square meter factory is ISO 9001(00112Q213049R 1M /4100) and 14001 environment system certified, and our products are also UL-listed. Our workshop maintains constant temperature and humidity to gurantee the quality.
