Enameled Rectangular Copper Wire for Motor Winding
- 500 Ton / Tons per Month
- Tianjin Shanghai Qingdao
- T/T D/P D/A Credit Card
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Henan, China | Brand Name: | HUAYUAN-rectangular copper wire | Model Number: | QZB/HY-A29 rectangular copper wire |
Type: | Other, Insulated, rectangular copper wire | Application: | Other, engineering machinary,motor,electrical instrument,refrigerating system | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | Enameled |
Product Description
Specifications
1.Size: a 1-6mm b 3-16mm2.MOQ:400kg
3.ROHS,UL,BV,ISO9001
4.rectangular copper wire
5.Accept sample order
Enameled Rectangular Copper Wire for Motor Winding

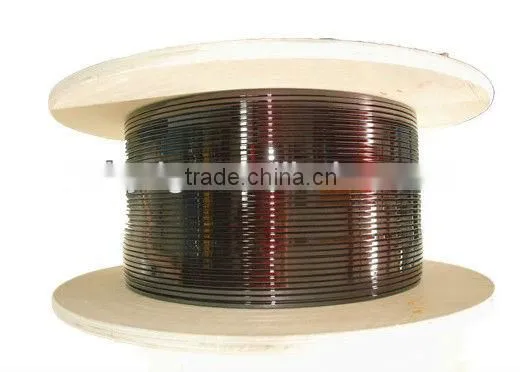

Product detail picture

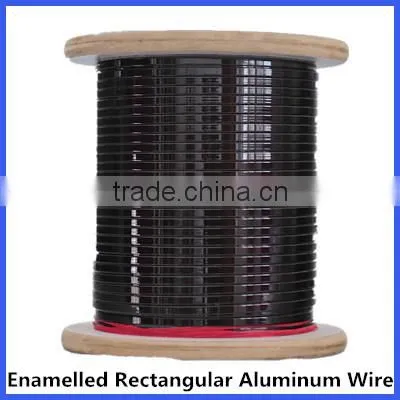

Main products: Enameled aluminum round wire, enameled aluminum flat wire ,paper covered aluminum wire,paper covered copper wire,3M paper covered aluminum wire, telephone paper covered aluminum wire,Dupont covered aluminum wire,single-layer glass fiber covered aluminum wire, single-layer glass fiber covered copper wire, double-layer glass fiber covered aluminum wire, double-layer glass fiber covered copper wire
Why Choose Us :
Services Guarantees of magneto wire:
1) Factory Direct and on-time shipment.
2) ELANTAS insulation paint available.
3) Large size safe package up to PT-270.
4) Customized sizes,OEM are accepted!
5) Goods are sold with rerun or refund guarantee due to quality issue!
rectangular copper wire hot sale
Copper flat wire is produced by processing copper bar through our continuous conforming technology, then coating the copper wire with several layers of enamel insulation as per the specified requirements. Copper flat wire is used in the windings of transformers, generators, motors and other electrical equipment.
Certifications of rectangular copper wire :
The mechanical, electrical and chemical characteristics of copper flat wire differ from those of
copper magnet wire because of the inherent differences in the conductor materials. These
differences are reflected in certain test procedures and/or performance requirements for copper
flat wire , such as elongation, adherence and flexibility, heat shock, scrape resistance, continuity
and thermal endurance .
Producing Process of rectangular copper wire
Packing about rectangular copper wire
Inner packing: different plastic spool according to wire diameter (Plastic spool of PT-4,PT-10,PT-20,PT-25)
Outer packing: wooden cases or according customers' requirement.
Shipping terms of rectangular copper wire
1) Sample time: Nearby 3-5days, distance 5-7days.
2) Production time: 10-30days(Depends on the Qty) after advanced payment received
3) Packing: Each into individual carton box, then into export carton
Technical test iterms about rectangular copper wire
Maximum Overall Diameter, Conductor Diameter, Film Thickness, Conductor Resistance, Elongation, Spring Back, Mandrel Winding, Sudden Jerk, Cut Through, Heat Shock, Room Temperature Breakdown Voltage, High Voltage Hole, and Pin-Hole etc .
Name | enamel copper magnet wire | ||||
Type | QZB-2/155 | ||||
Diameter | 4.00X8.00 | ||||
Standard | GB/T7095.3 | ||||
Test Item | Unit | Technical requirements | Test Result
| ||
Appearance |
| Bright and clean, uniform color | Ok | ||
Dimensions | Bare Conductor | Narrow side | mm | ±0.05 | 4.01 |
Broad side | mm | ±0.07 | 8.00 | ||
Enameled Increase | Narrow side : | mm | 0.12~0.17 | 0.130 | |
Broad side | mm | 0.12~0.17: | 0.150 | ||
Adherence and Flexibility | Mandrel Winding Test |
| 1D | OK | |
Jerk Test |
| No Crack, and No losing adhesion | OK | ||
Resistivity(20°C) | Ω. mm²/m | ≤0.017241 | 0.01693 | ||
Elongation | % | A side(mm) ≤2.5 30% >2.5 32% | 44% | ||
Heat Shock | °C | after bending in 6a test bar, 175°C no cracking | no cracking | ||
Breakdown Voltage at Room Temp. | KV | 2.0 | 4.9,3.5,4.2,4.0,6.2 | ||
Packing |
| Meet the export standard | OK |
Application of rectangular copper wire :
a) Class 180: Polyesterimide enameled round and flat aluminum/copper wire class180 have good performance of heat shock.
Resistant to high cut- through temperature, excellent mechanical strength .With the feature of both solvents
resistance and refrigerants resistance. It can be widely used in electrical equipments which
require high performance of heat resistance.
Typical applications include:
l Electric motor
l Instrument
l Dry transformer
l Generator
l UPS power source
l Electric welding machine
b) Class 200: Polyester or polyestermide covered with polyamideimide enameled round and flat aluminium/copper wire class
200 show superior performance in the application including extreme environment application.
Typical applications include:
l Motor
l Transformer(include oil-immersed transformer)
l Refrigerating System
l C motor
l UPS power source
For more information of rectangular copper wire : please visit our website: http://xchydg.en.china.cn/ or /
Q1. Different thermal class wire, whether their price is the same ?
Their price is different based on different thermal class, because the varnish is different.
Q2. Why we need our customer tell the insulation thickness ?
Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC /NEMA.
Q3. If I order today, how long it takes for the shipment ?
If customized order will ship the goods within 5-15days also depend on the quantity.
Q4. Can u provide customized specifications ?
Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm- 5.0mm, Width(b): Φ2-16mm .
Certifications of rectangular copper wire
UL, ISO9001, ROHS, Bureau Veritas
Xuchang Huyuan Electric Apparatus Co.,Ltd Since 1993
Professional Manufacturer of magneto wire in China
To provide you with the perfect service
Enamelled copper wire Main Export to Hongkong, Singapore, Indonesia, Sri Lanka, Vietnam, Thailand, Turkey, UK, Hungary, Romania, Croatia, Greece, Egypt, USA, Canada, Brazil, Argentina, Zambia, Colombia, Dominican republic.
Business Card

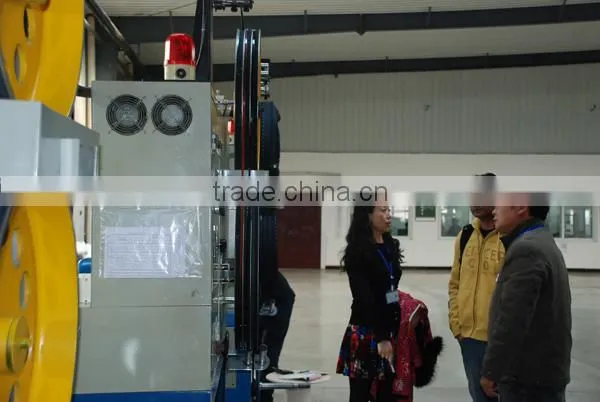

Customers in workshop
