Enameled flat copper wire for motor winding
- 500 Ton / Tons per Month
- Tianjin Shanghai Qingdao
- T/T D/P D/A Credit Card
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Henan, China | Brand Name: | HUAYUAN - copper wire for motor winding | Model Number: | copper wire for motor winding |
Type: | Insulated | Application: | Other, Motor,Transformer,Refrigerating system,UPS power source,Reactor | Conductor Material: | Aluminum |
Conductor Type: | Solid | Insulation Material: | Enameled |
Product Description
Specifications
pper wire for motor winding2.20 years history
3.Cost control
4.Good management
5. Standards: IEC/NEMA/GB
Enameled flat copper wire for motor winding
Main products:Enameled wire/winding wire/magnet wire
Details of copper wire for motor winding
1. Features of copper wire for motor winding :
Diameter: Round wire: Φ1.0-8.0mm
Flat wire: Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm
Standard: IEC, NEMA, GB
Thermal Class: 130/155/180/200/220 ºC
Certification: UL Approved, ROHS Authentication, ISO9001
1). Class 130 polyester enameled wire, PEW /130
2). Class 155 modified polyester enameled wire, PEW/155
3). Class 180 polyesterimide enameled wire, EIW/180
4). Class 200 polyester-imide / polyamide-imide enameled wire, EI/AIW200
5). Class 130 /155/ 180 polyurathane enameled wire, UEW 130/ 155 /180
2. copper wire for motor winding peformance
1)High temperature resistance
2)Chemical corrosion resistance
3)Transformer oil resistance
4)Radiation resistance
5)High breakdown voltage
6)Good mechanical properties

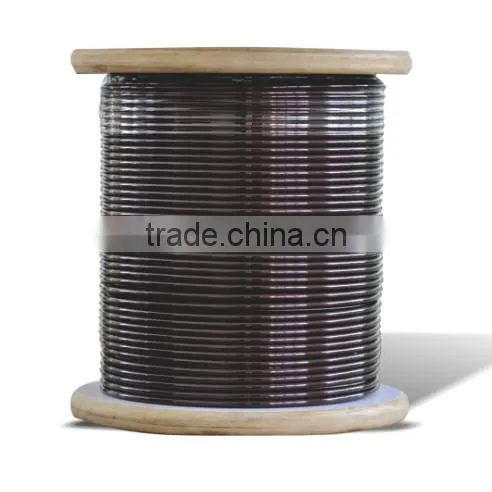

Packing of copper wire for motor winding
Spool: PT15, PT25, PT30, PT60, PT200 or much big Plywood Wooden Spool
Film: High quality water-proof heat shrinkage film covered wire spools
Packing: Plastic spool loading in custom-made export carton then pack in Plywood Cases, at last bind it with Steel Strip
Your can choose natural packing or based on customers' requirement
Produce process of copper wire for motor winding
Application of copper wire for motor winding
a) Class 180: Polyesterimide enameled round and flat aluminum/copper wire class180 have good performance of heat shock.
Resistant to high cut- through temperature, excellent mechanical strength .With the feature of both solvents
resistance and refrigerants resistance. It can be widely used in electrical equipments which require high performance of heat resistance.
Typical applications include:
l Electric motor
l Instrument
l Dry transformer
l Generator
l UPS power source
l Electric welding machine
b) Class 200: Polyester or polyestermide covered with polyamideimide enameled round and flat aluminium/copper wire class 200 show superior performance in the application including extreme environment application.
Typical applications include:
l Motor
l Transformer(include oil-immersed transformer)
l Refrigerating System
l C motor
l UPS power source
Certifications of copper wire for motor winding
1) The largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters
2) BV approved professional manufacturer of aluminium wire. We process in high quality only
3) The vanish use is ELANTAS to gurantee the quality
4) Factory have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification
5) Some of our products are UL listed (OBMW2.E317671)
6) Free samples can be sent to test quality

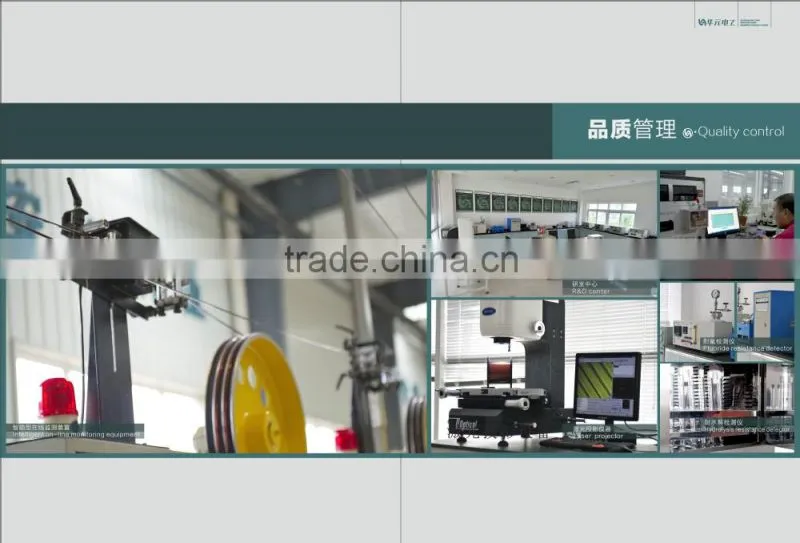

Test machines to test copper wire for motor winding

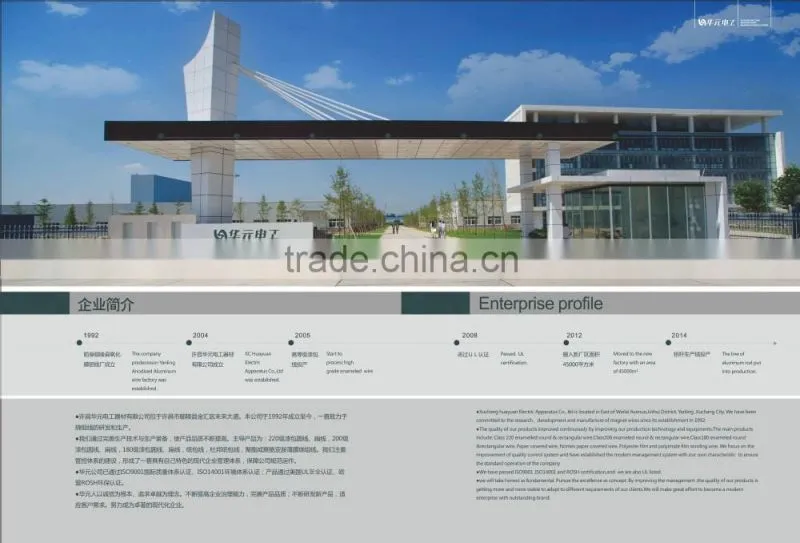

Company information
