Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > ES-16-16AX Full Electric Stacker

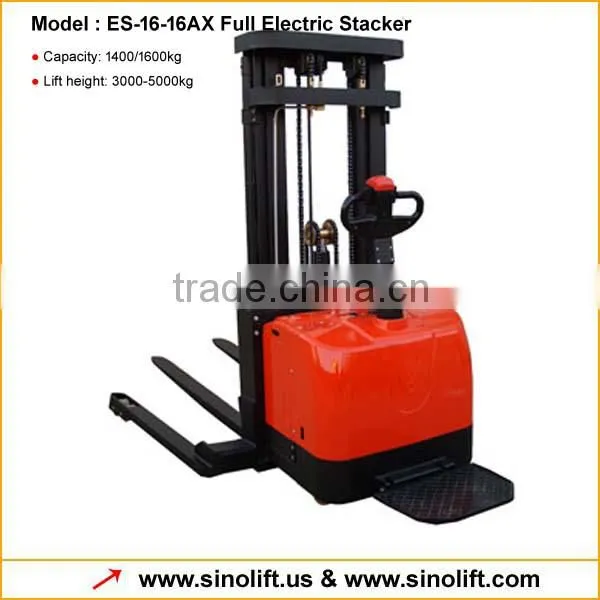

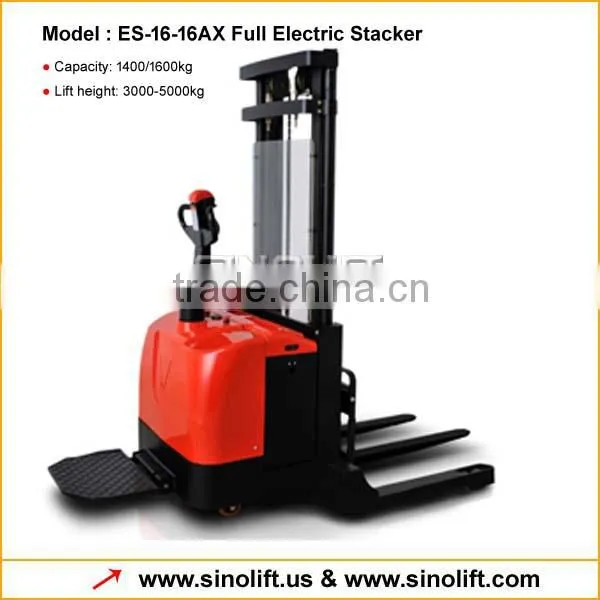

ES-16-16AX Full Electric Stacker

Name: ES-16-16AX Full Electric Stacker
Brand: SINOLIFT
SKU: 132448987

ES-16-16AX Full Electric Stacker thumbnail-1

ES-16-16AX Full Electric Stacker photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

ES-16-16AX Full Electric Stacker

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number ES-16-16AX Full Electric Stacker

After-sales Service Provided Engineers available to service machinery overseas

Specifications

ES-16-16AX Full Electric Stacker
1.Capacity: 1400/1600kg
2. Lift height: 3000-5000kg

ES-16-16AX Full Electric Stacker

1)Features

1.Durable and rigid frame construction ensure the stackers to handle heavy loads.

2.Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.

3.Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.

4.A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.

5.Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.

6.limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.

2)Specification Date

Manufacturer		SINOLIFT	SINOLIFT	SINOLIFT
Model designation		ES-14-14AX	ES-16-16AX	ES-16-16STX
Drive unit		Battery	Battery	Battery
Operator type		Walkie/ Rider	Walkie/ Rider	Walkie/ Rider
Load capacity	Q (kg)	1400	1600	1600
Tyre type		PU/PU	PU/PU	PU/PU
Height, mast lowered	h1 (mm)	1980/ 2135/ 2335/ 2500	1980/ 2135/ 2335/ 2500	2135
Lift height	h3 (mm)	3000/ 3300/ 3600/ 4000	3000/ 3300/ 3600/ 4000	4000/ 4500/ 5000
Height of straddle arms or load wheel casing	h8 (mm)	100	100	100
Fork height, lowered	h13 (mm)	85	85	85
Overall length (out leg/ fork)	l1 (mm)	1995	1995	2055
Overall width	b1/ b2 (mm)	1470	1470	1470
Fork dimensions	s/ e/ l (mm)	40/100/1050	40/100/1050	40/100/1050
Fork carriage width	b3 (mm)	812	812	812
Width between straddle arms	b4 (mm)	1270	1270	1270
Aisle width, 1000×1200 pallet crossways	Ast (mm)	2260	2260	2260
Aisle width, 800×1200 pallet lengthways	Ast (mm)	2230	2230	2230

3)Photos

4)Workshop

5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.

6)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express

7) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
