2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor

Name: 2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor
Brand: SINOLIFT
SKU: 132437075

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor thumbnail-1

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor thumbnail-2

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor thumbnail-3

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor photo-1

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor photo-2

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform With AC Motor photo-3

Negotiable MOQ: 5 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

SINOLIFT

Model Number:

GTWY 4000

After-sales Service Provided:

Engineers available to service machinery overseas

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name SINOLIFT

Model Number GTWY 4000

After-sales Service Provided Engineers available to service machinery overseas

2015 Sinolift GTWY Series Four Mast Electric Aerial Work Platform with AC Motor

1) Features of Aerial Work Platform

-Four masts are descended or ascended synchronously with excellent stability;
-With guardrail similar to that of double mast aerial work platform;
-Platform can be designed to horizontal extension or rotating or both for working by stepping over ground obstacle;
-Electric driving unit is equipped for moving;
-Rubber roller can be fitted on driving roller according to customer requirements;
-Power Supply: Single phase AC;
-Platform can be extended horizontally (optional);
-Extended size (optional): 1000,1300,1600mm;
-Traveling Method: powered propeller as standard;
manual traveling as option;
-Rotating platform as option;
-Rotating angle range (optional): 180°, 350°, any angle.

2) Specification of Aerial Work Platform

Model		GTWY10-4000	GTWY12-4000	GTWY14-4000A	GTWY14-4000B	GTWY15-4000	GTWY16-4000
Max Platform Height	m	10	12	14	14	15	16
Max Working Height	m	11.7	13.7	15.7	15.7	16.7	17.7
Loading Capacity	kg	300	300	300	300	200	200
Platform Size	mm	1400×800	1400×800	1400×800	1400×800	1400×800	1400×800
Covering Size	mm	2400×2300	2400×2300	2450×2400	2500×2400	2600×2500	3100×3000
Power Supply	v	AC220	AC220	AC220	AC220	AC220	AC220
Lifting Power	KW	2.2	2.2	2.2	2.2	2.2	2.2
Driving Power(Option)	KW	0.75	0.75	0.75	0.75	0.75	0.75
Dimension	mm	1700×1100×2050	1700×1100×2320	1800×1100×2520	1900×1100×2320	2000×1200×2680	2250×1300×2850
Weight	kg	1100	1150	1200	1200	1390	1420

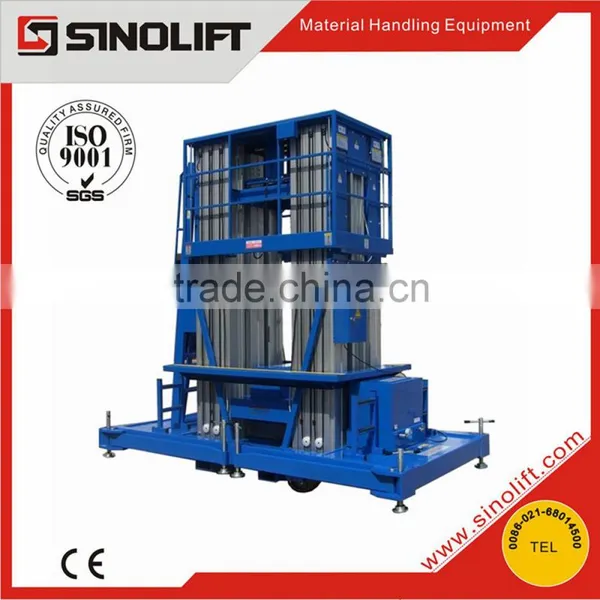

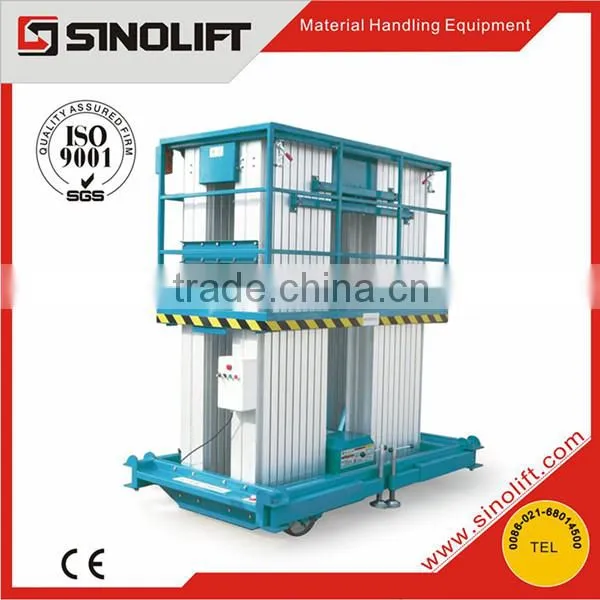

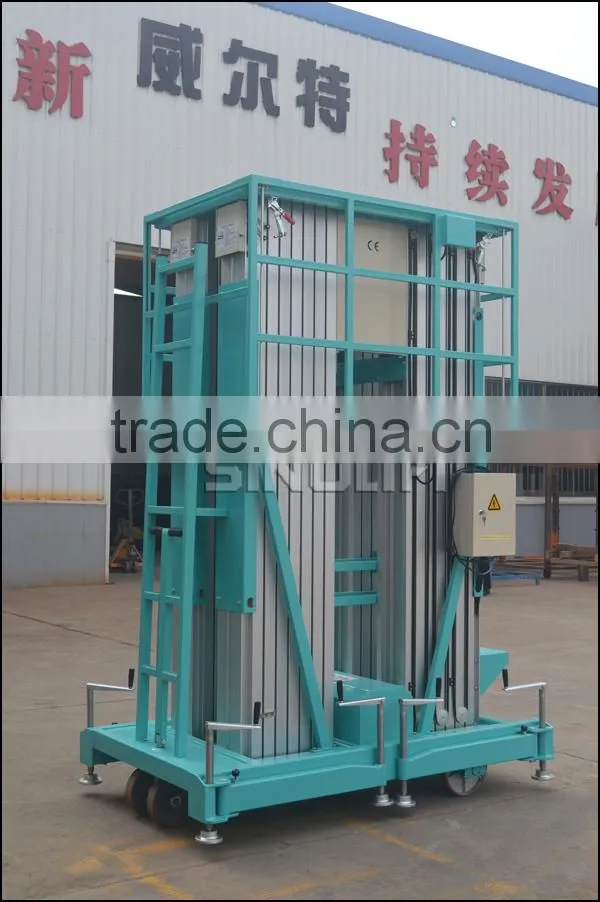

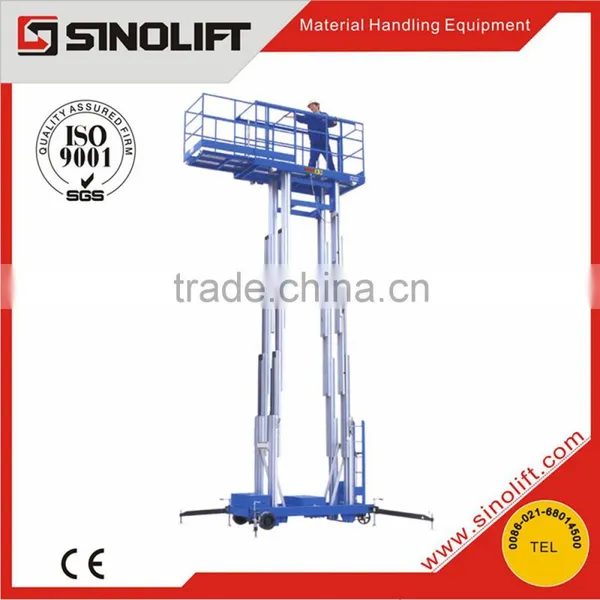

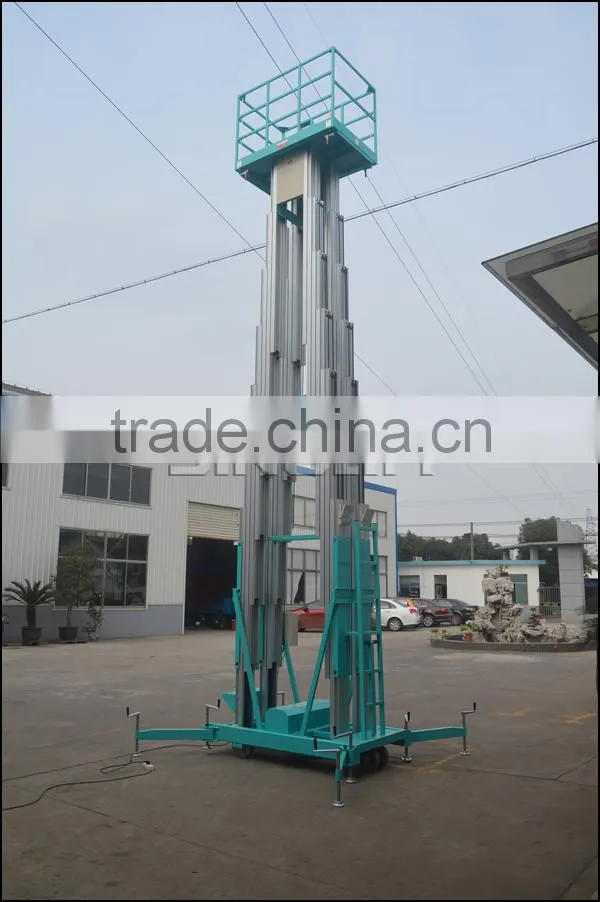

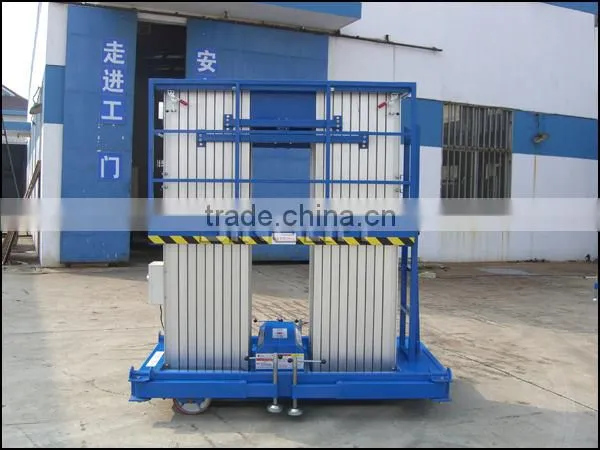

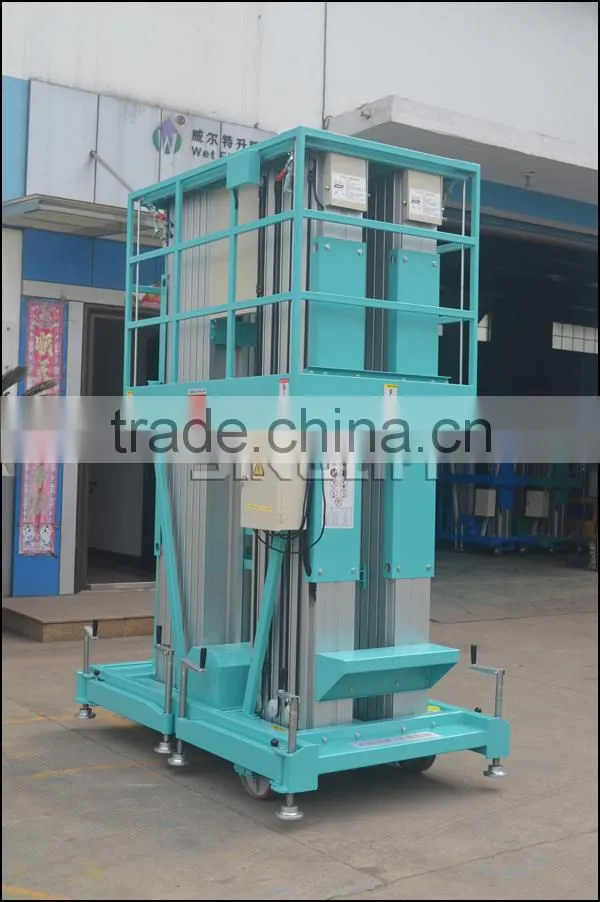

3) Photos of Aerial Work Platform

4) workshop of Aerial Work Platform

5) terms and service

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
