2015 Sinolift New GTWY Series Multiple Mast Semi-Electric Aerial Working Platform
1) Features of Aerial Working Platform
Two sets of independent upper and lower lifting structures;
Four groups of aluminum alloy mast combination for lower lifting structure and double mast combination for upper lifting structure;
The two structures can be shifted automatically with better operation and stability;
The guardrail can be entirely hung on the platform without occupying too much room, offering easy in passing through lower passage;
Its overall dimension is the smallest among similar products and it can be used both outside and indoor;
Electric driving unit is equipped for moving;
Power Supply: Single phase AC;
Traveling Method: powered propeller as standard;
manual traveling as option;
Available accessories: uninterruptible power supply;
Conforms to CE, one of National Key New Products 2001
2) Specification of Aerial Working Platform
|
Model Number |
GTWY16-420 | GTWY18-420 | GTWY19-420 | |
|
Max Platform Height |
m | 16 | 18 | 19 |
|
Max Working Height |
m | 17.7 | 19.7 | 20.7 |
|
Loading Capacity |
kg | 150 | 150 | 150 |
|
Platform Size |
mm | 1450×900 | 1450×900 | 1550×900 |
|
Covering Size |
mm | 3100×3000 | 3100×3000 | 3450×3200 |
|
Power Supply |
v | AC220 | AC220 | AC220 |
|
Lifting Power |
KW | 2.2&1.1 | 2.2&1.1 | 2.2&1.1 |
|
Driving Power(Option) |
KW | 0.75 | 0.75 | 0.75 |
|
Dimension |
mm | 2250×1300×2180 | 2250×1300×2420 | 2500×1400×2520 |
|
Weight |
kg | 1500 | 1600 | 1670 |

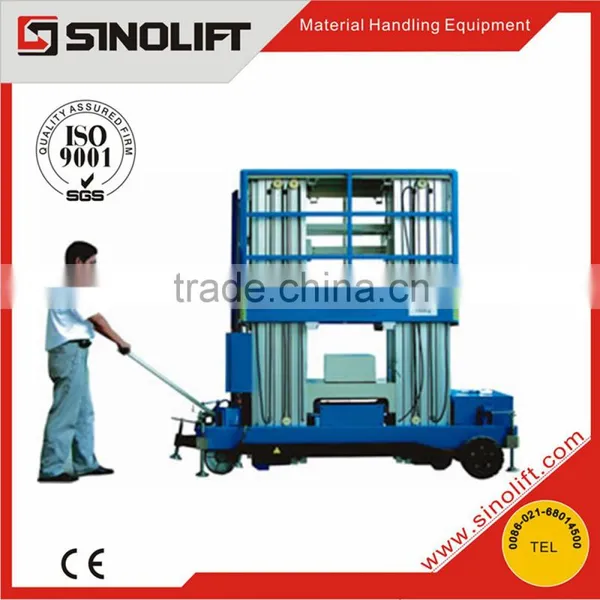

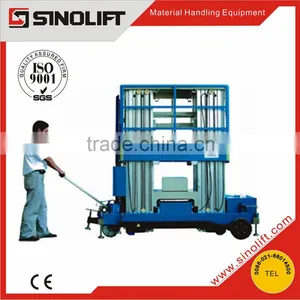

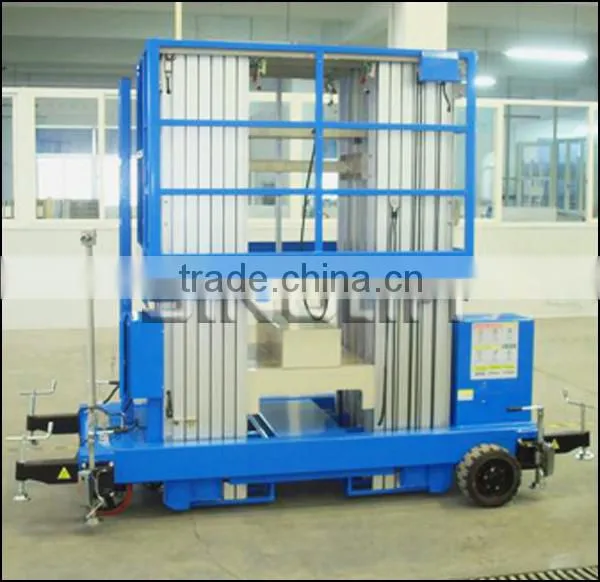

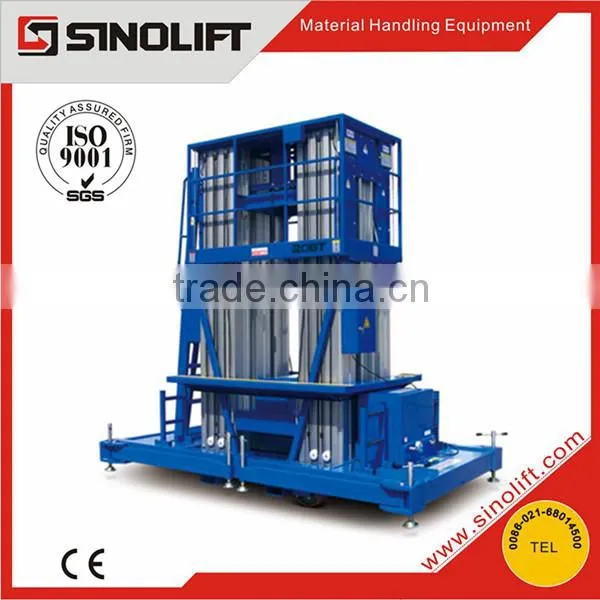

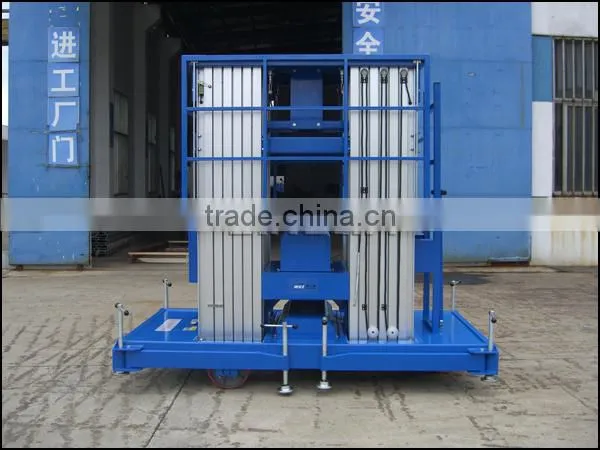

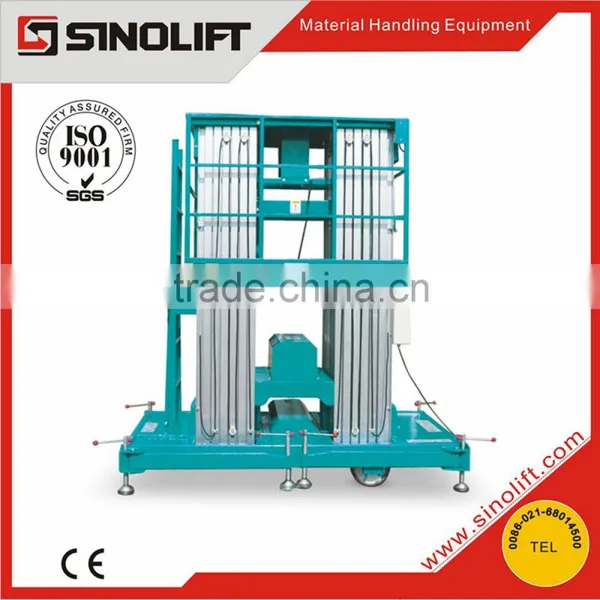

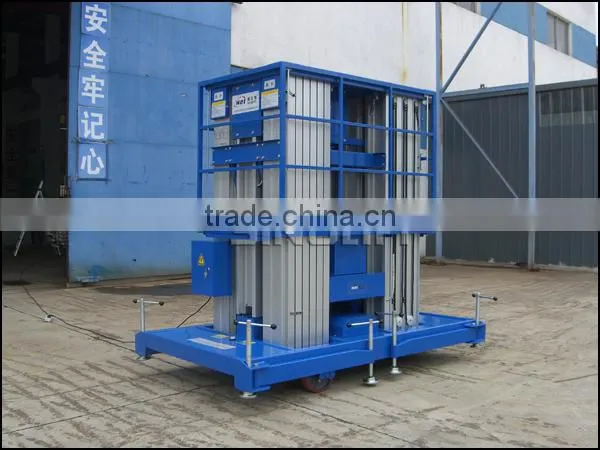

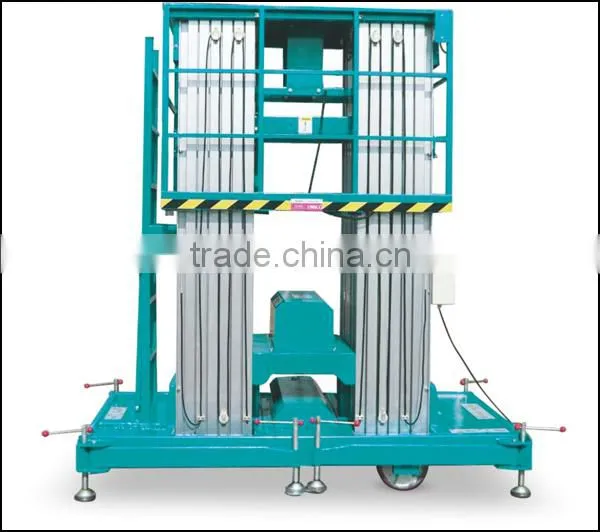

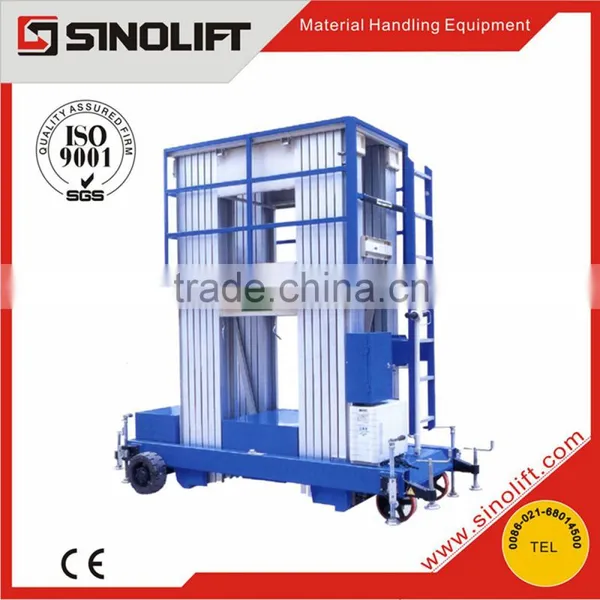

3) Photos of Aerial Working Platform
4) workshop of Aerial Working Platform
5) terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
