2015 Sinolift GTWY Series Tilting Mobile Single Mast Semi-Electric Work Platform
1) Features of Semi-Electric Work Platform
With high strength aluminum alloy material effective for less deflection and wavering during elevation.
With imported hydraulic pressure pump valve and electric motors with CE certification of E.U.S table operation and little noise.
Every product mounted with DC power on basis of customers’ requirement.
Independent electric unit with protection for electric leakage or overloading.
Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance.
With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.
2) Specification of Semi-Electric Work Platform
| Model | GTWY6-1200 | GTWY8-1200 | GTWY10-1200 | ||
| Lift Rated Capacity | kg | 150 | 125 | 125 | |
| Max Platform Height | mm | 6000 | 8000 | 10000 | |
| Max Machine Height | mm | 7700 | 9700 | 11700 | |
| Ground Clearance | mm | 80 | 80 | 80 | |
| Platform Size | mm | 650x600 | |||
| Outspread Size | mm | 1930x1770 | |||
| Power | AC | V | 220 | ||
| DC | V | 24 | |||
| Battery | V/Ah | 2x12/60 | |||
| Charger | V | 24/10 | |||
| Lifting Motor | AC | V/KW | 220/0.75 | ||
| DC | V/KW | 24/2.0 | |||
| Overall Length | mm | 1560 | 1560 | 1560 | |
| Overall Width | mm | 800 | 800 | 800 | |
| Overall Height | mm | 1950 | 2050 | 2150 | |
| Overall Weight | AC | kg | 300 | 350 | 400 |
| DC | kg | 330 | 380 | 430 | |

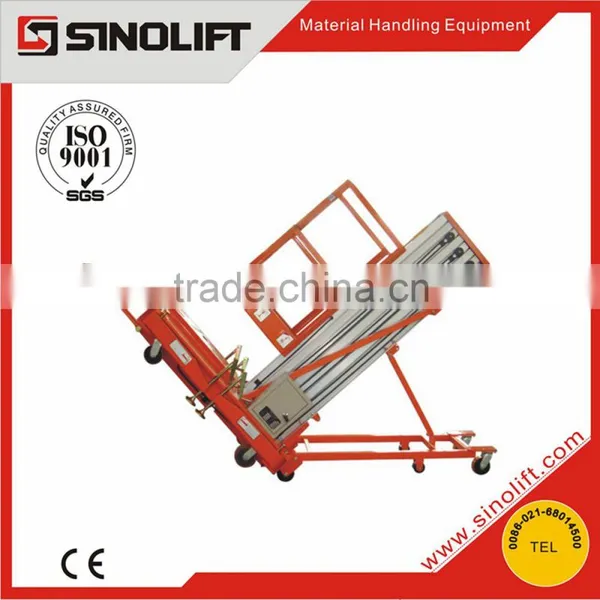

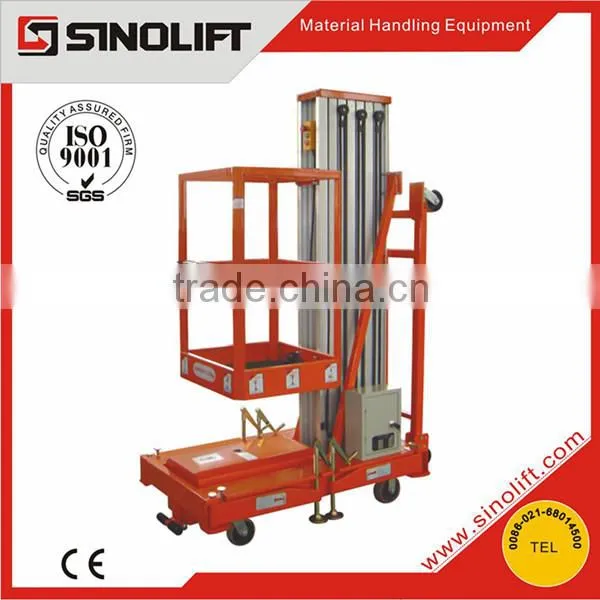

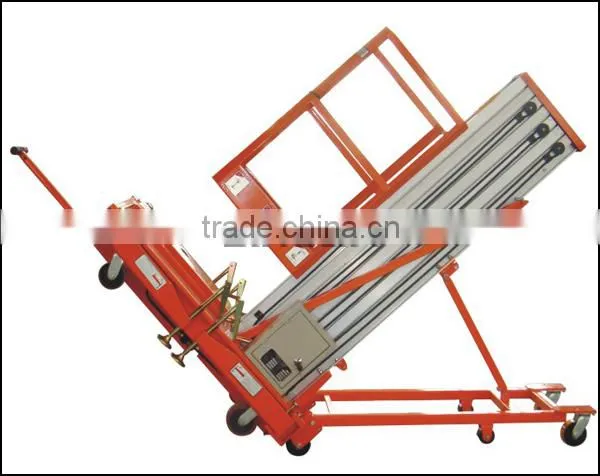

3) Photos of Semi-Electric Work Platform

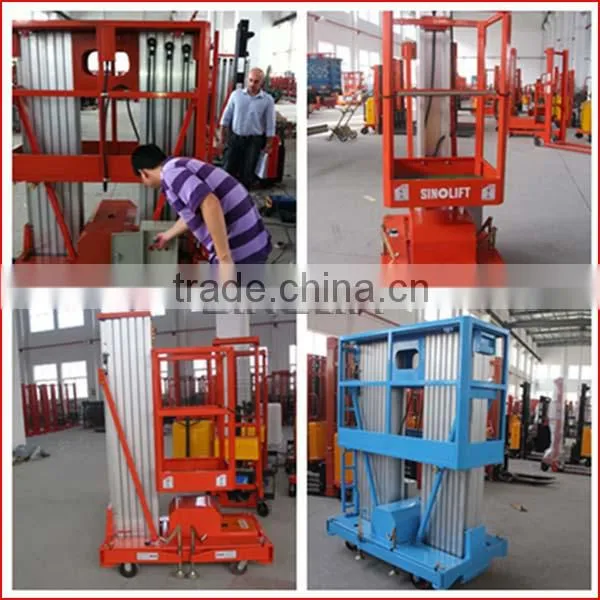

4) workshop of Semi-Electric Work Platform
5) terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
