Sinolift SJY(II) Mobile Scissor Lift Platform with Traction Device
- 50 Unit / Units per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
- Powder air chute B500 cement chute
- Cylindrical lithium battery recycling machine
- CP300 cement reservoir bottom electric flow control valve pneumatic flow valve on reservoir side
- CP400 cement bottom electric flow control valve
- Electric flow control valve CP400 with remote operating system adjustment accuracy
- Lvrui machinery powder ash special air chute sealing good no noise wide range of application
Product Details
Place of Origin: | Shanghai, China | Brand Name: | SINOLIFT | Model Number: | SJY (II) |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Sinolift SJY(II) Mobile Scissor Lift Platform with Traction Device
1) Features
SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place, could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on. Moreover, because of its big solid tire, it could work perfectly in rough ground.
1. DC motor and driving systems.
2. With safety-falling equipment.
3. Big solid tire.
4. With pulling device.
2) Specification Data
Model | SJY0.5-6 (II) | SJY0.5-7.5 (II) | SJY0.5-9 (II) | SJY0.5-11 (II) | |
Max.platform height | mm | 6000 | 7500 | 9000 | 11000 |
Min.platform height | mm | 1080 | 1200 | 1360 | 1480 |
Platform size | mm | 2200x1000x1000 | |||
Lift rated capacity | kg | 500 | |||
The developed dimension of legs | mm | 2700x2200 | |||
Elevating time | s | 77 | |||
Driving motor | 24/1.2 | ||||
Lifting motor | V/kw | 24/2.2 | 24/3 | ||
Battery | v/Ah | 2x12/150 | |||
Charger | V/A | 24/20 | |||
Electromotor power | 2.2 | 3 | |||
Overall length | mm | 2540 | |||
Overall width | mm | 1300 | |||
Overall height | mm | 1180 | 1300 | 1460 | 1580 |
Overall net weight | kg | 950 | 1350 | 1600 | 1800 |

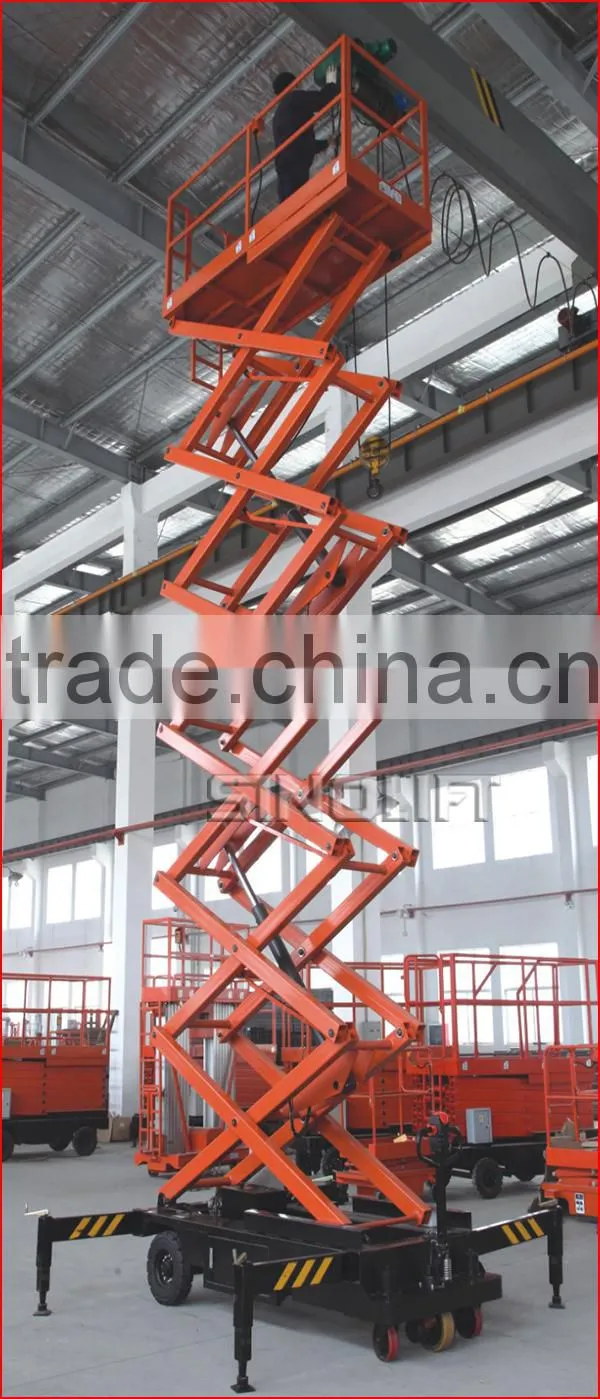

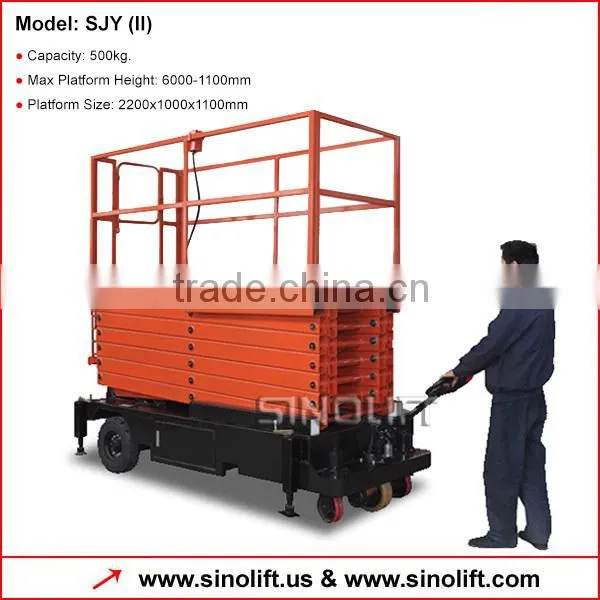

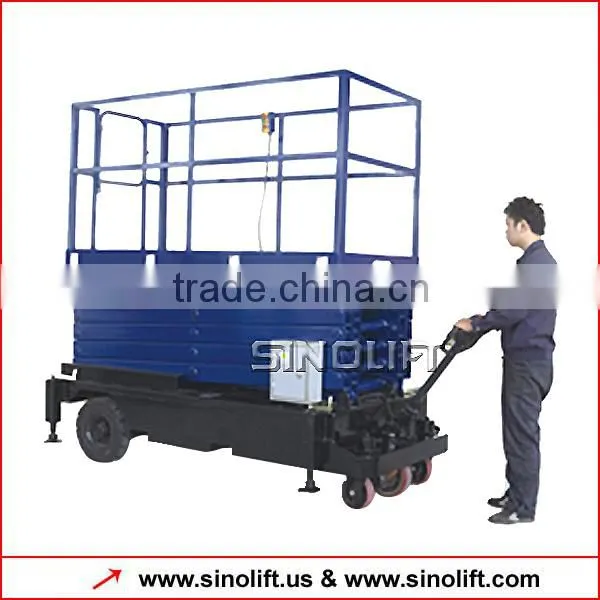

3) Photo
4) workshop:
5) terms and service:
1.Lead time | 3-4 weeks |
2.Packing | Standard export fumigated wooden pallet, foam rubbers |
3.Payment term | T/T payment in advance; L/C at sight. |
4.Lead term | FOB Shanghai or CFR/CIF |
5.Warranty period | 12 months |
6.Shipping method | by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
