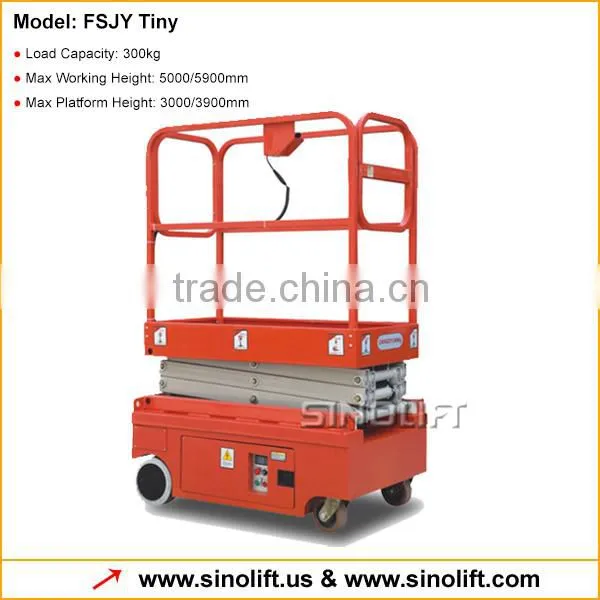

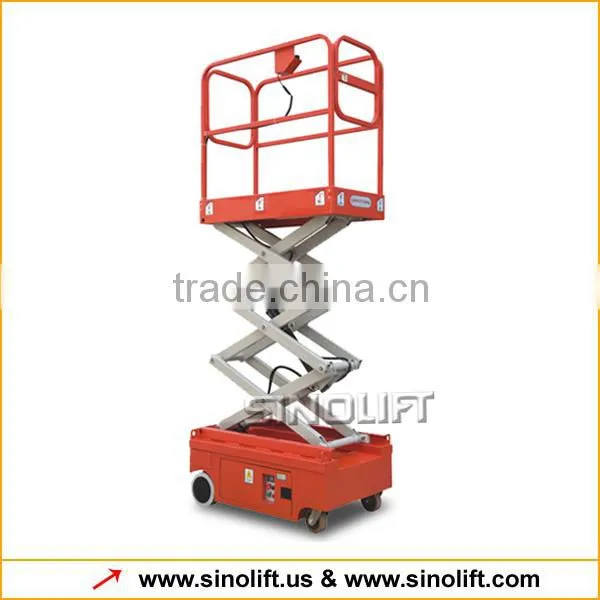

Sinolift FSJY3/FSJY3.9 Small Electric Platform Scissor Lift
1) Features
FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world. High quality imported components to keep its very perfect performance.
1. Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.
3. Driving wheels and balance wheels assembly to keep the safety.
4. Spraying plastics appearance .
5. 2-3 days working time of one time charging.
6. With safety-falling equipment.
2) Specification Data
| MODEL | FSJY3 | FSJY3.9 | |
| Lift rated capacity | kg | 300 | 300 |
| Max. working height | mm | 5000 | 5900 |
| Max. platform height | mm | 3000 | 3900 |
| Overall length | mm | 1180 | 1180 |
| Overall width | mm | 760 | 760 |
| Overall height | mm | 1830 | 1930 |
| Platform size | mm | 1170x600 | 1170x600 |
| Ground clearance | mm | 60 | 60 |
| Wheel base | mm | 990 | 990 |
| Min. turn radius | mm | 1200 | 1200 |
| Driving motor | v/kw | 2x24/0.4 | 2x24/0.4 |
| Lifting motor | v/kw | 24/0.8 | 24/0.8 |
| Running speed (platform stowed) | km/h | 4 | 4 |
| Running speed (platform elevated) | km/h | 0.8 | 0.8 |
| Rising/falling speed | sec | 20/30 | 20/30 |
| Battery | V/Ah | 2x12/80 | 2x12/80 |
| Charger | V/Ah | 24/15 | 24/15 |
| Max. climbing ability | % | 10~15 | 10-15 |
| Max. working allowable angle | / | 2° | 2° |
| Driving wheel | mm | 230×80 | 230x80 |
| Front wheel | in | 6 | 6 |
| Lifting capacity | kg | 490 | 600 |
3) Photo
4) Workshop
5) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
