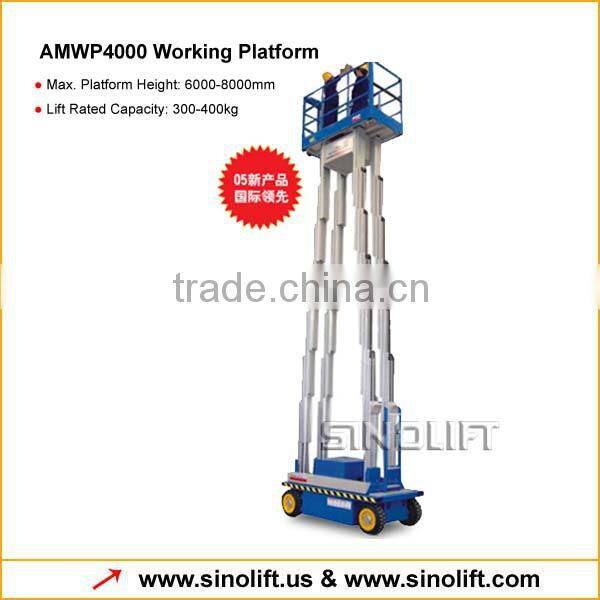

Sinolift-AMWP4000 Mast Working Platform
1) Features
Suitable for 1-3 person to work upraised
Maximum Platform height available: 6m;8m.
Power Supply: DC 24V
Platform roll out horizontally (optional)
Roll out length: 0.9M
Traveling method: hydraulic powered self-propeller
2) Specification Data
| Model No. | AMWP6-4000 | AMWP8-4000 | |
| Max. Platform Height | mm | 6000 | 8000 |
| Max. Machine Height | mm | 7700 | 9700 |
| Min. Platform Height | mm | ||
| Ground Clearance | mm | 50 | |
| Lift Rated Capacity | kg | 400 | 300 |
| Platform Extend Capacity | kg | Free Set | |
| Platform Size | mm | 1720×1040×1150 | |
| Platform Extend Length | mm | Free Set | |
| Max. Drive Speed (Platform Stowed) | km/h | 3~4 | |
| Max. Drive Speed (Platform Elevated) | km/h | 0.6-1 | |
| Max. Travel Grade | % | 15-20 | |
| Roller Out Length | mm | 900 | |
| Driving Motor | v/kw | 24/ 3 | |
| Lifting Motor | v/kw | 24/ 3 | |
| Aneroid Battery | v/Ah | 2×12/100 | |
| Charger | v/A | 24/ 12 | |
| Pothole Protection System | v/A | Automechanism | |
| Overall Length | mm | 2230 | |
| Overall Width | mm | 1100 | |
| Overall Height | mm | 1960 | |
| Overall Net Weight | kg | 2050 | 2200 |
3) Photos
4) workshop
5) terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
