Specifications
Aerial Work Platform1. Capacity: 125kg.
2. Max platform height: 6500-8000mm.
3. Working height: 8500-10000mm.

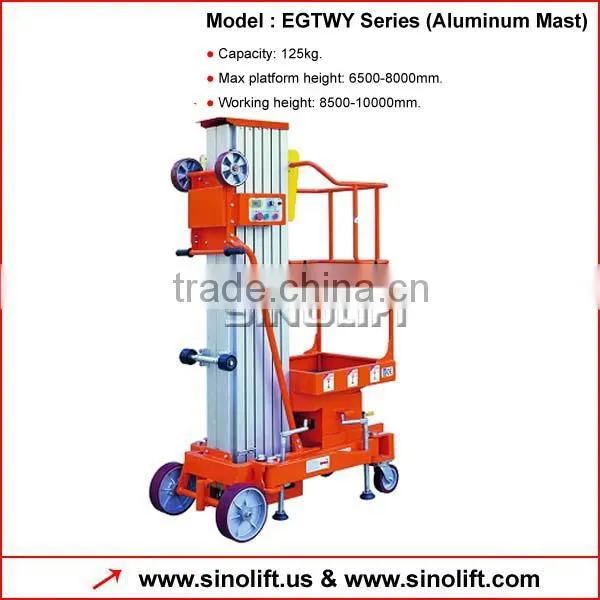

EGTWY Series Aluminum Mast Aerial Work Platform
1) Features
The product adopts the design of aluminum mast , which is light, flexible and reliable. It is only for one person working in exhibition hall, warehouse, supermarket, airport, port, etc. CE certified.
1)Elevated power is supplied by AC .
2)The external size is small after folded. It can be moved into elevator, ordinary door and narrow passage.
3) Two settings for controlling up and down.
4) Emergency down-valve device.
2) Specification Data
Model |
|
EGTWY6.5-1000 |
EGTWY8-1000 |
|
Max. Platform Height |
mm |
6500 |
8000 |
|
Max. Machine Height |
mm |
7960 |
9460 |
|
Min. Platform Height |
mm |
620 |
||
Ground Clearance |
|
60 |
||
Lift Rated Capacity |
kg |
125 |
||
Platform Size |
mm |
600*600 |
||
Outspread Size |
mm |
1740*1450 |
||
Electrical Source |
AC |
V |
220~240 |
|
Lifting Motor |
AC |
V/kw |
220/0.75~1.5 |
|
Overall Lenght |
mm |
1200 |
||
Overall Winght |
mm |
690 |
||
Overall Height |
mm |
2050 |
||
Overall Net Weight |
kg |
310 |
340 |
|

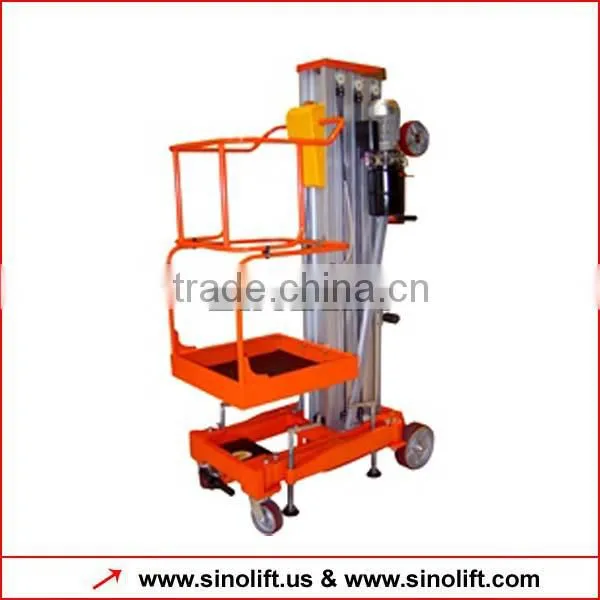

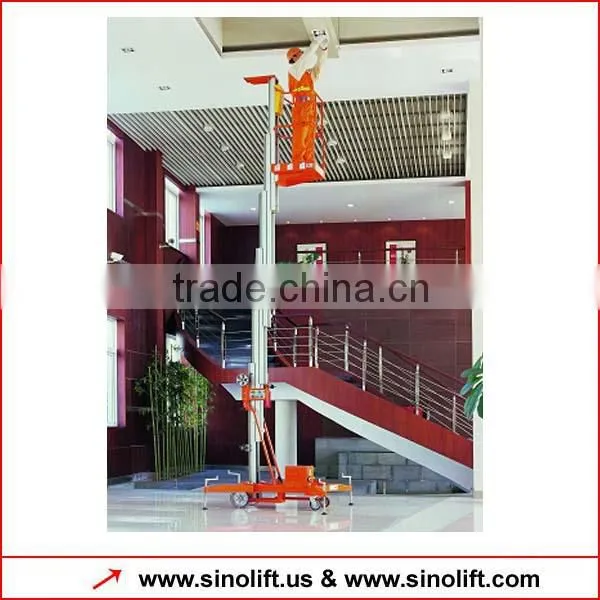

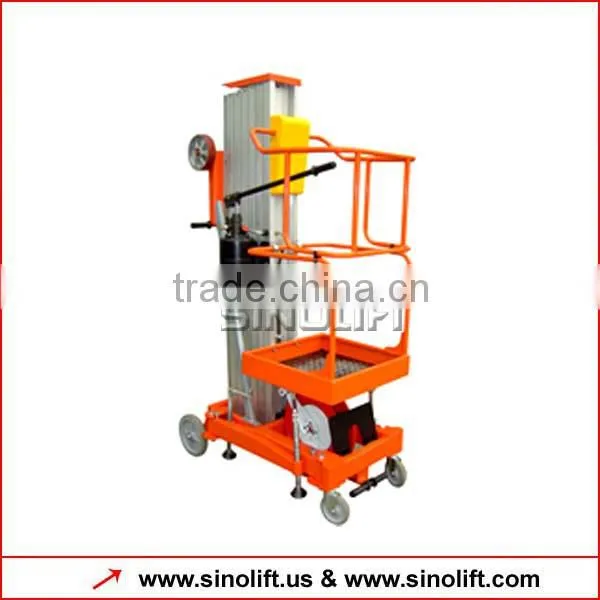

3) Photos
4) workshop
5) terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
