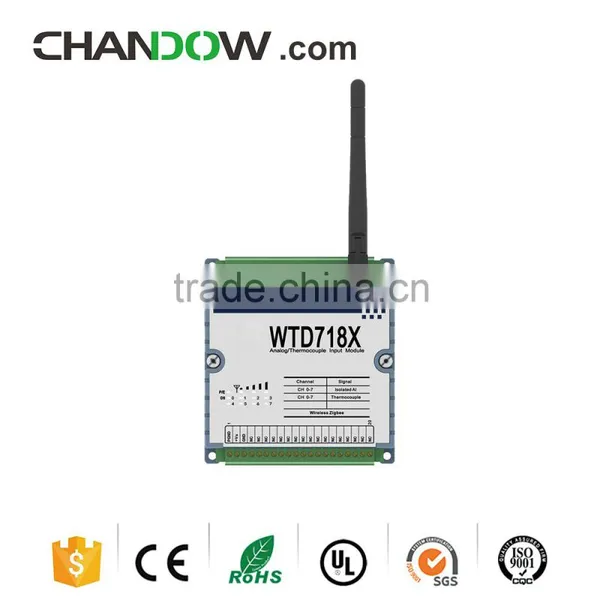

Chandow WTD718X Zigbee I/O Module

Name: Chandow WTD718X Zigbee I/O Module
Brand: Chandow
SKU: 132336239
Availability: InStock

US$ 80 - 120 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Chandow

Model Number:

WTD718X

Chandow Electric (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Chandow

Model Number WTD718X

Our Advantages

Product Show

Model	WTD 712P	WTD 714P	WTD 718X	WTD 724X
Analog input parameter
Channel	2Ch Differential	4Ch Differential	8 Ch Differential
Resolution	24bit		16bit
Sampling Rate	60Hz
Input Voltage			±10V, ±5V,±2.5V,±1V,±0.5V,±0.1V,±20mV
Input Current			±20mA,+4~20mA
Input Sensor	Pt100(IEC),Pt100(JLS),Pt1000		J,K,T,E,R,S,B Thermocouple
Isolation Voltage	3KV Vdc
Analog Output Parameter
Channel				4Ch Differential
Resolution				12/14/16bit
Output Voltage				±10V
Output Current				0~20mA/4~20mA(Differential)
Isolation Voltage				3KV Vdc
Board
OS	FreeRTOS
Processor	STM32(Cortex-M3)
CPU Clock	120MHz
LED Indicator	Power,Communication,Channel LED
Watch Dog	System & Communication
Protection	Over Current,Over Voltage,Over temperature,Anti-reverse
Communication	Wireless
Firmware Update	MiniUSB Inside
Protocol	Zigbee
Structure and Parameter
Case	ABS Plastic
Dimension	9810647mm
Lead Rail	DIN35mm
Power Input	10~48V(24 Vdc Rated)
Power Consumption	V~2.5W(24Vdc)	~2.7W(24Vdc)	~2.6W(24Vdc)
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Humidity	10~90%(None Condense)
Weight	~0.28KG	~0.29KG	~0.29KG	~0.28KG
Certification	EMC(EN61000-6-2/4),UL
Customized Software	WTDUtility
