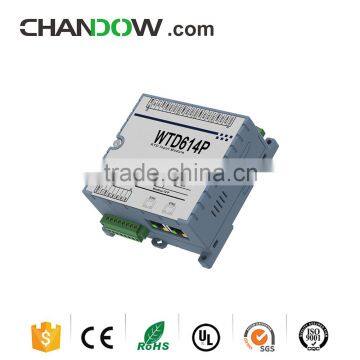

Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > Chandow WTD614P Modbus-TCP I/O Module
US$ 80 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Chandow
Model Number:
WTD614P
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chandow WTD524X ProfiNet I/O ModuleUS$ 80 - 120MOQ: 1 Piece -
Chandow WTD518X ProfiNet I/O ModuleUS$ 80 - 120MOQ: 1 Piece
-
Chandow WTD514P ProfiNet I/O ModuleUS$ 80 - 120MOQ: 1 Piece
-
Chandow WTD424X Modbus-RTU I/O ModuleUS$ 80 - 120MOQ: 1 Piece
-
Chandow WTD418X Modbus-RTU I/O ModuleUS$ 80 - 120MOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
Chandow
Model Number
WTD614P
Our Advantages
Product Show
| Model | WTD 612P | WTD 614P | WTD 618X | WTD 624X |
| Analog input parameter | ||||
| Channel | 2Ch Differential | 4Ch Differential | 8 Ch Differential | |
| Resolution | 24bit | 16bit | ||
| Sampling Rate | 60Hz | |||
| Input Voltage | ±10V, ±5V,±2.5V,±1V,±0.5V,±0.1V,±20mV | |||
| Input Current | ±20mA,+4~20mA | |||
| Input Sensor | Pt100(IEC),Pt100(JLS),Pt1000 | J,K,T,E,R,S,B Thermocouple | ||
| Isolation Voltage | 3KV Vdc | |||
| Analog Output Parameter | ||||
| Channel | 4Ch Differential | |||
| Resolution | 12/14/16bit | |||
| Output Voltage | ±10V | |||
| Output Current | 0~20mA/4~20mA(Differential) | |||
| Isolation Voltage | 3KV Vdc | |||
| Board | ||||
| OS | FreeRTOS | |||
| Processor | STM32(Cortex-M3) | |||
| CPU Clock | 120MHz | |||
| LED Indicator | Power,Communication,Channel LED | |||
| Watch Dog | System & Communication | |||
| Protection | Over Current,Over Voltage,Over temperature,Anti-reverse | |||
| Communication | 2*RJ45(Daisy Chain,Bypass Supported) | |||
| Firmware Update | MiniUSB Inside | |||
| Protocol | Modbus-TCP | |||
| Structure and Parameter | ||||
| Case | ABS Plastic | |||
| Dimension | 98*106*47mm | |||
| Lead Rail | DIN35mm | |||
| Power Input | 10~48V(24 Vdc Rated) | |||
| Power Consumption | V~2.5W(24Vdc) | ~2.7W(24Vdc) | ~2.6W(24Vdc) | |
| Operating Temperature | -20℃~70℃ | |||
| Storage Temperature | -30℃~80℃ | |||
| Humidity | 10~90%(None Condense) | |||
| Weight | ~0.28KG | ~0.29KG | ~0.29KG | ~0.28KG |
| Certification | EMC(EN61000-6-2/4),UL | |||
| Customized Software | WTDUtility | |||
