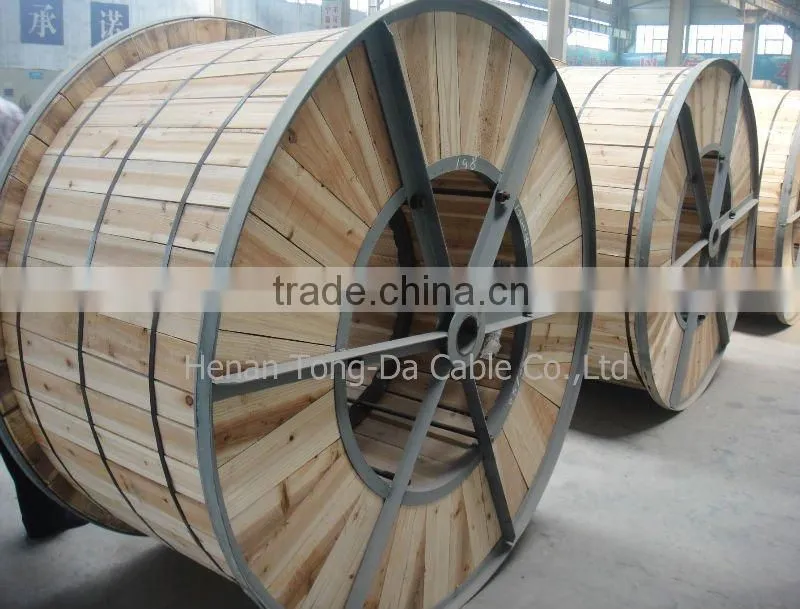

Help CenterAAC Conductor AAC Cable
Related Products
Specifications
We suply AAC conductor with high quality and competive price.Application:
1. AAC are used in overhead power tranmission and distribution lines with various grade voltages.
2. Under the same weight, AAC is with higher DC resistance and lower costthan cooper conductor.
British Sizes-BS215-1
|
Code Name |
Nominal Aluminium Area |
Stranding And wire diameter |
Sectional Area |
Approximate Overall diameter |
Linear Mass |
Calculate D.C Resistance At20 |
Calculate Breaking Load |
Final Modulus of Elasticity |
Corefficient Of linear expansion
|
Mm² |
mm |
Mm² |
mm |
Kg/km |
Ohm/km |
daN |
hbar |
/ |
|
Midge |
22 |
7/2.06 |
23.33 |
6.18 |
64 |
1.227 |
399 |
5900 |
23x106 |
Aphis |
25 |
7/3.35 |
26.40 |
7.2 |
73 |
1.081 |
411 |
5900 |
23x106 |
Gnat |
25 |
7/2.21 |
26.8 |
6.6 |
73 |
1.066 |
459 |
5900 |
23x106 |
German Sizes-DIN48201
Area |
Stranding and Wire diameter |
Overall diameter |
Linear mass |
Calculated Breaking load |
Calculated D.C Resistance at 20 |
|
Nominal(mm²) |
Actual(mm²) |
mm |
mm |
Kg/km |
daN |
Ohm/km |
16 |
15.89 |
7/1.71 |
5.1 |
44 |
290 |
1.8018 |
25 |
24.25 |
7/2.10 |
6.3 |
67 |
425 |
1.1808 |
35 |
34.36 |
7/2.50 |
7.5 |
94 |
585 |
0.8332 |
50 |
49.48 |
7/3.00 |
9.0 |
135 |
810 |
0.5786 |
50 |
48.36 |
19/1.80 |
9.0 |
133 |
860 |
0.5950 |
70 |
65.82 |
19/2.10 |
10.5 |
181 |
1150 |
0.4371 |
95 |
93.27 |
19/2.50 |
12.5 |
256 |
1595 |
0.3048 |
120 |
117.00 |
19/2.80 |
14.0 |
322 |
1910 |
0.2459 |
