AAC Bare Conductor/ASTM B231
Negotiable
MOQ: 1 Kilometer (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HNTDDL
Model Number:
AAC
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Overhead Bare AAC Conductor/DIN 48201NegotiableMOQ: 1 Kilometer -
AAC/ASC Aluminum Conductor ASTM B231 BS215 Wasp AntUS$ 0.1 - 5MOQ: 1 Ton
-
AAC Bluebonnet Trillium Lupine CowslipUS$ 0.1 - 5MOQ: 1 Ton
-
All Aluminum Conductor(AAC) Caterpillar Spider DroneUS$ 0.1 - 5MOQ: 1 Ton
-
AAC Conductor--All Aluminium Conductor Fly Rail Zebra Dog MooseUS$ 0.1 - 5MOQ: 1 Ton
Place of Origin
Henan, China
Brand Name
HNTDDL
Model Number
AAC
Insulation Material
Other, Bare
Type
Other, LV,MV,HV
Application
Overhead
Conductor Material
Aluminum
Jacket
Other, Bare
Specifications
Aluminium Conductors widely used in power transmission lines with various voltage levels.(1)Specification

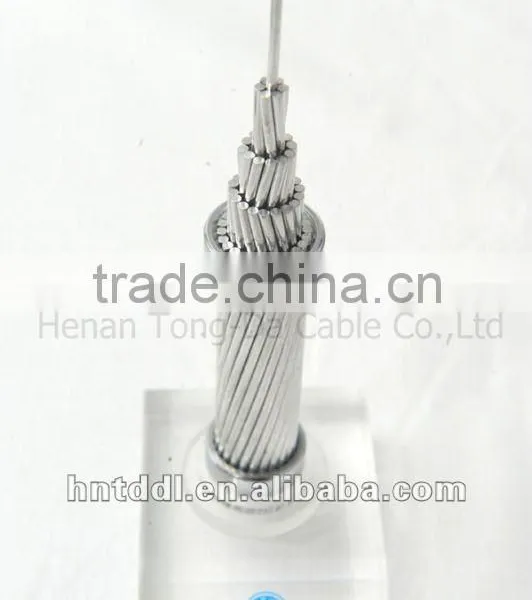

AAC are composed by bare concentric-lay-stranded aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires.
(2)Application
AAC are used in overhead electric power transmission and distribution lines with various grade voltages.
AAC (All aluminum conductor) are suited for overhead power line.
(3)Supply
We can supply this conductor according to different recognized standards,such as IEC61089, BS215, ASTM B231, CSA C49, DIN480201, JIS C3109.
Customer special specification also can be satisfied.
ASTM B231
ALL ALUMINIUM CONDUCTOR
| Code Name | Total Area | Stranding and Wire Diameter | Overall Diameter | Linear Mass | Nominal Breaking Load | Max.D.C. Resistance at 20°c | |
| AWG or MCM | mm2 | mm | mm | kg/km | daN | Ω/km | |
| Peachbell | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 249 | 2.1692 |
| Rose | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 396 | 1.3624 |
| Iris | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 597 | 0.8577 |
| Pansy | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 732 | 0.6801 |
| Poppy | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 873 | 0.5390 |
| Aster | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 1100 | 0.4276 |
| Phlox | 3/0 | 85.03 | 7/3.932 | 11.80 | 234 | 1347 | 0.3390 |
| Oxlip | 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 1698 | 0.2688 |
| Valerian | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 2062 | 0.2275 |
| Sneezewort | 250 | 126.71 | 7/4.80 | 14.4 | 349 | 2007 | 0.2275 |
| Laurel | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 2200 | 0.2133 |
| Daisy | 266.8 | 135.16 | 7/4.96 | 14.9 | 373 | 2141 | 0.2133 |
| Peony | 300 | 152.0 | 19/3.193 | 15.97 | 419 | 2403 | 0.1896 |
| Tulip | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 2695 | 0.1691 |
