Help CenterAAC---All Aluminum Conductor for ASTM BS DIN JIS CSA IEC
Related Products
Details of the products

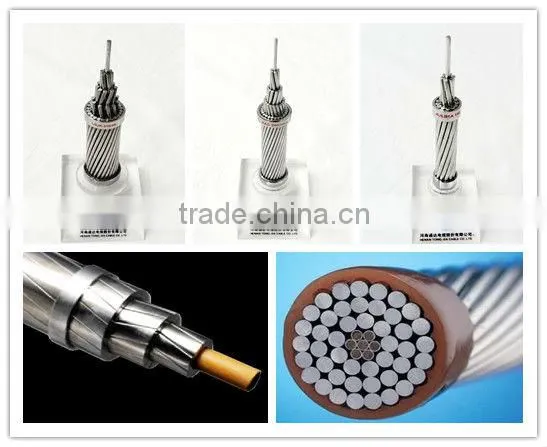

The all aluminium conductor is a kind of aluminum product made through stranding aluminum 1350 wires. It is used for the electricity transmission and distribution lines with short span length and small load-carrying capacity of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines.This strand covers hard drawn circular aluminum wires for electric purposes to be used as component of hard drawn aluminum stranded cables and aluminum conductor steel reinforced.
Applications
The AAC conductor is used for the electricity transmission and distribution lines with short span length and small load-carrying capacity of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines.
Standards
The AAC conductor meets the stndards of ASTM B231,BS215,CSA C49,DIN 48201,IEC 61089. ASTMB-230 Aluminum Wire, 1350-H19 for Electrical Purposes
ASTMB-231 Aluminum Conductors, Concentric-Lay-Stranded
We can also produce according to your special requirement
Performance
1.Sound conductivity
2.Long service life.
3.Good mechanical and electrical properties.
4.Conductivity:61.5%

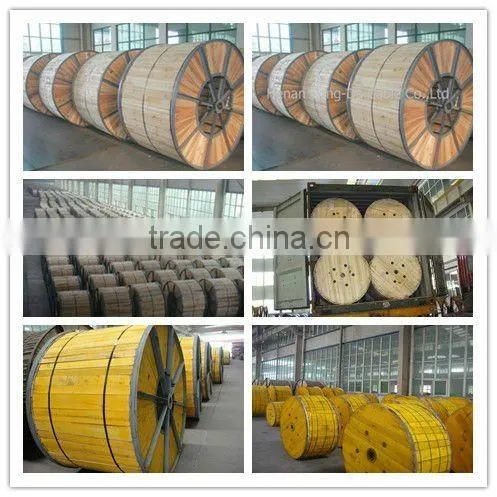

Package:wooden drums,steel drums,or steel and wooden drums.
AAC |
|
|
|
ASTM B231 |
Code Name |
Area(AWG or MCM) |
Stranding and wire Dia. |
Nominal Breaking Load |
Max Resistance |
Peachbell |
6 |
7/1.554 |
249 |
2.1692 |
Rose |
4 |
7/1.961 |
396 |
1.3624 |
Iris |
2 |
7/2.474 |
597 |
0.8577 |
Pansy |
1 |
7/2.776 |
732 |
0.6801 |
Poppy |
1/0 |
7/3.119 |
873 |
0.5390 |
Aster |
2/0 |
7/3.503 |
1100 |
0.4276 |
Phlox |
3/0 |
7/3.932 |
1347 |
0.3390 |
Oxlip |
4/0 |
7/4.417 |
1698 |
0.2688 |
Peony |
300 |
19/3.193 |
2403 |
0.1896 |
Tulip |
336.4 |
19/3.381 |
2695 |
0.1691 |
Daffodil |
350 |
19/3.447 |
2804 |
0.1625 |
Canna |
397.5 |
19/3.673 |
3184 |
0.1431 |
Goldentuft |
450 |
19/3.909 |
3499 |
0.1264 |
syringa |
477 |
37/2.882 |
3849 |
0.1193 |
Cosmos |
477 |
19/4.023 |
3708 |
0.1193 |
Hyacinth |
500 |
37/2.951 |
4035 |
0.1138 |
Zinnia |
500 |
19/4.12 |
3888 |
0.1138 |
