Plating and Coating Thickness Gauge, NDT Eddy Current Tester

Model

 IDEA-4D

Product

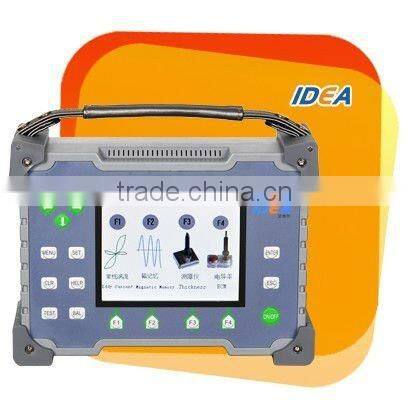

Digital Eddy Current Testing Instrument

Type

Eddy current

Description

Upgraded from IDEAP0101, IDEA-4D is a type of intelligent digital eddy current detector with full function of eddy current testing instrument but compact and more exquisite. It’s featured with high-luminance color LCD display, adjustable phase, gain, testing frequency, English and Chinese operating interface, easy and intuitive operation, applicable to nearly all eddy current testing area.

Fool-style operation available. According to the test requirements, the frequency, gain, phase and other parameters can be preset by professional testing personnel.

While testing, the corresponding testing parameters can be inserted and no special training is required for testing personnel

Specification

Eddy current testing signals playback, analysis, storage, printing

USB 2.0 (Host) connection for output

Intelligent digital design, easy to operate

High-accuracy, high-efficiency testing

Various testing schemes according to the user’s requirements

Compact design, portable

Easy operation, real-time on-screen instruction, fool-style operation available

Parameter

1.Large screen, high-luminance 5.7″color TFT-LCD, overcomes the shortcomings of the traditional monochrome screen display

2.Frequency range: 10 Hz~10 MHz, continuously adjustable

3.Gain: 0 dB~99 dB, with wide adjustable range

4.Phase rotation: 0~359°, flexible phase rotation

5.Testing speed: >100M/min, meets various testing requirements

6.Testing accuracy up to: 0.01mm,

7. Lift-off height: >3mm, no need for surface clearance.

8.Fast digital electronic balance

9.Phase/non-constant amplitude, box and fan-shape alarm modes to meet various testing requirements

10. Probe driver: 1-8. to meet the requirements of various probe structure and   achieve multifunction in the real sense

11.Independent X and Y gain ratio

12.Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz)

13.USB 2.0 (Host) connection for output

14.Eddy current testing signals playback, analysis, storage, printing

15.Operating system: Linux 2.6

16.Operating Language: Chinese, English

17.Easy to operate, real time on-screen instruction

18. On-line hot-key graphics, text help.

19.Built-in rechargeable lithium battery 8000MAH

20.Rectangular coordinate system and polar coordinates

21. Center coordinates: X/Y, adjustable.

22.Automatically display the date, time and battery capacity

23.Operating temperature:  -20° ~ 50°

24.Instrument size: 210 MM x 130 MM x 90 MM
25.instrument weight: 2.0KG

Application

Applied to the testing of various metal material such as metal tubes, bars, parts, etc
