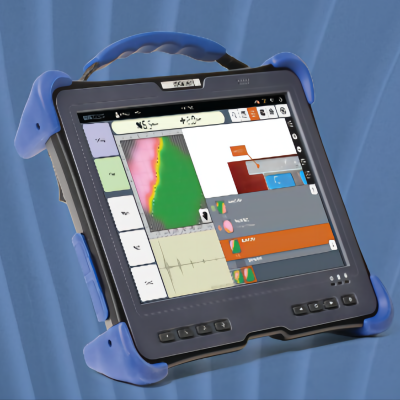

F2 Platform Ultrasonic Quality Inspection Platform

  F2 is an ultrasonic device designed for NDE and quality control for various applications, including resistance spot welds, and adhesive joints. Using the unique technology of multi-channel ultrasonic matrix arrays, this portable and simple-in-operation device is capable of producing internal ultrasonic C-scan images of defects and structures.

  RSWA Software: unique algorithms and muli-channel transducers provide information about internal nugget structure such as its size and indentation depth for proper weld quality evaluation.

  ABIS Software: viewable presence of adhesion facilitates determining defects of bonding and shows bead size.

  Our Software helps making decisions, guides through inspections routine with easy to understand graphics, allows saving completed inspections and transfers reports to PC based data bases.

The F2 Platform is configurable as:

 ■ Resistance Spot Weld Analyzer (RSWA)

■ Adhesive Bonding Inspection System (ABIS)

The built-in electronics supports:

■ Probes with built in identication system

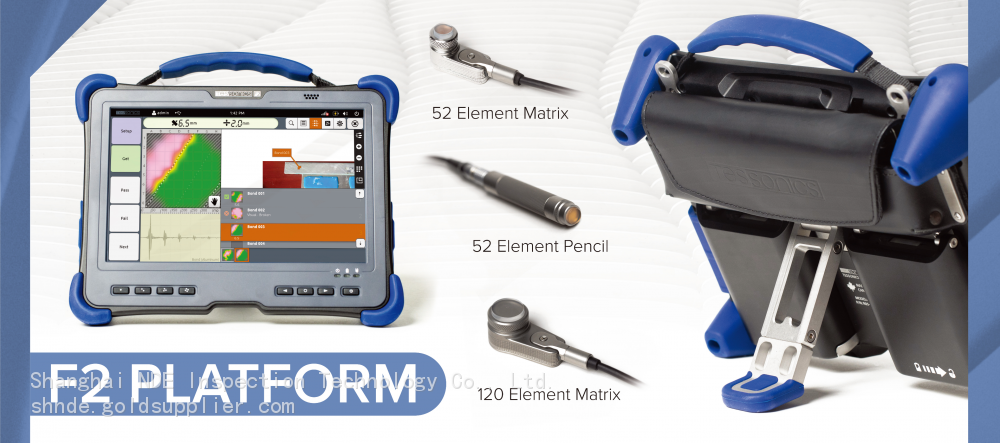

■ Three different type of multi-channel probes

■ Replaceable probe cables

■ Single-frame and continuous live data acquisition modes

The infrastructure solutions supplied with the platform include: planning and managing the routine inspections, data synchronization, reporting, and integration with existing customer systems
