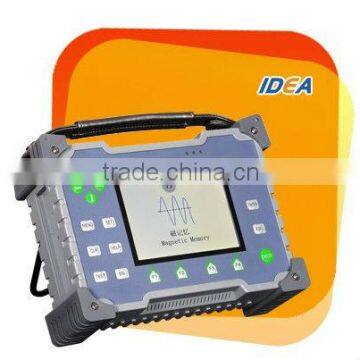

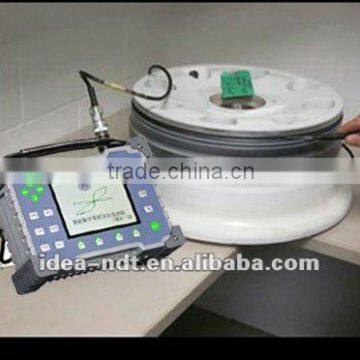

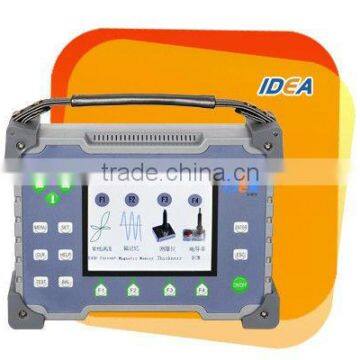

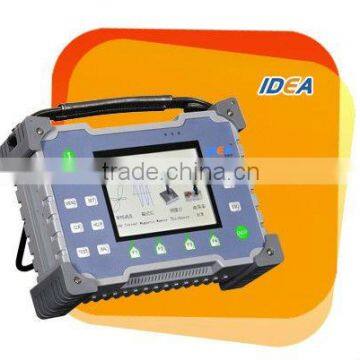

Portable Eddy Current Flaw Detector
- 100 Set / Sets per Month
- xiamen
- T/T Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | IDEA | Model Number: | IDEA-MF |
Product Description
Specifications
Portable Weld Crack Depth Finder1.Nationl product patent
2..Pass the European standard EN1711-2000

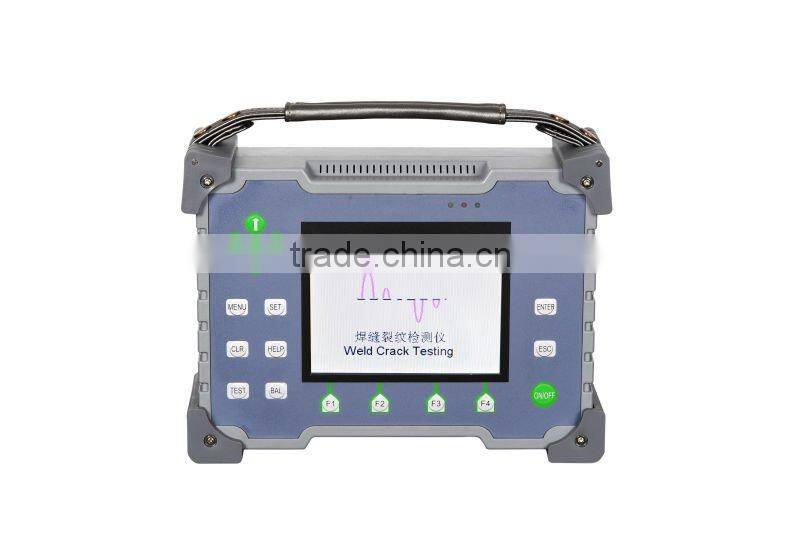

Portable Eddy Current Weld Crack Detector (Portable Weld Crack Depth Finder)
Product Character

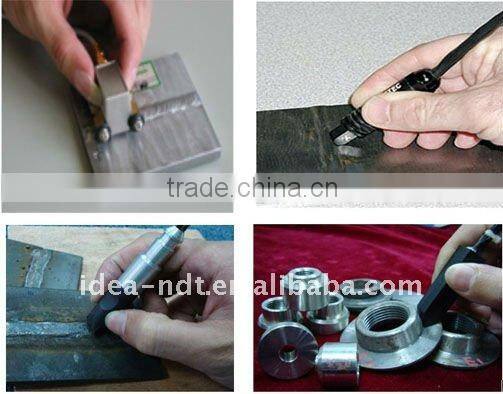

There is no need to polish the weld,remove the surface corrosion and clean the metallic surface.
Detection speed more than 30m/min
Big screen,high brightness colorful 7.4 inches TFT-LCD,
More than 1000 images storage, can also be stored to the other U disk
Testing signal can playback,analysis, storage and printing
Inner rechargeable Lithium battery:8000mAH
Working temperature:-10 degree to 50 degree
Size:210 mm*130mm*90mm
Main Technical Data
Frequency range | 10Hz~10MHz |
Independent frequency detection number | 2 |
Phase | 0~359°,continuously adjustable,precision 1° |
Gain | 0dB~99dB, a wide gain adjustment 0.5dB |
Display | Colour 5.7'', TFT LCD |
Digital filtering | High-pass frequency/low pass frequency,0Hz~2000Hz |
Alarm mode | Multi-mode,non-constant-amplitude phase,inner alarm |
Data storage | testing parameters & results can playback and check |
Inner rechargeable Lithium batter | can work 10 hours continuously |
Operating system | Linux |
Operating language | Chinese & English |
1. High resolution color LCD 2. Quick menu browser. 3. With the USB connection input and output capacity 4. On-line help for instrument operation 5. Able to save testing data, pictures and parameters 6. LINUX system 7. Chinese and English operation interface |
8. Low power dissipation, Continuous working up to more than 10 hours
1. maximum repetition frequency: for single channel ones it can reach 20KHz;and generally 10KHz probe processing mode: single emission/transceiver or double emission/transceiver amplifier band:0.5MHz-15MHz gain: 80dB, Stepping 0.1 dB sensitivity: >50dB Vertical Linearity Error: ≤ 5% Alarm: each channel for maxium A,B,C three alarms |
Please contact: export (at)
