Height and weight scale ultrasonic height measurement

2

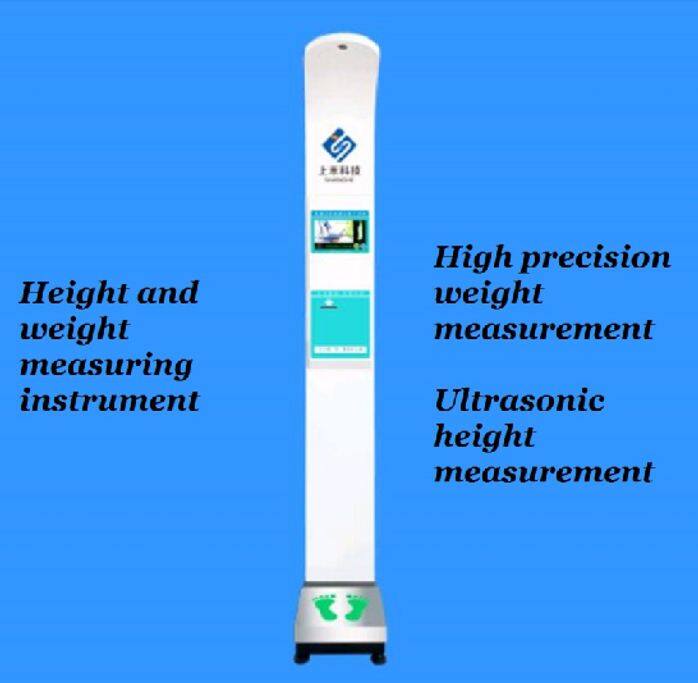

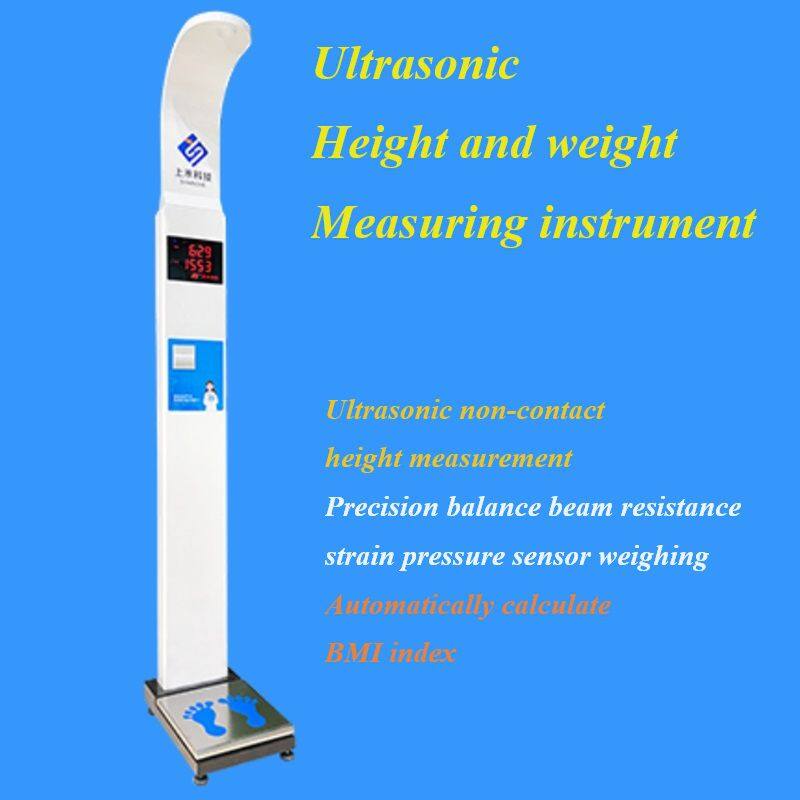

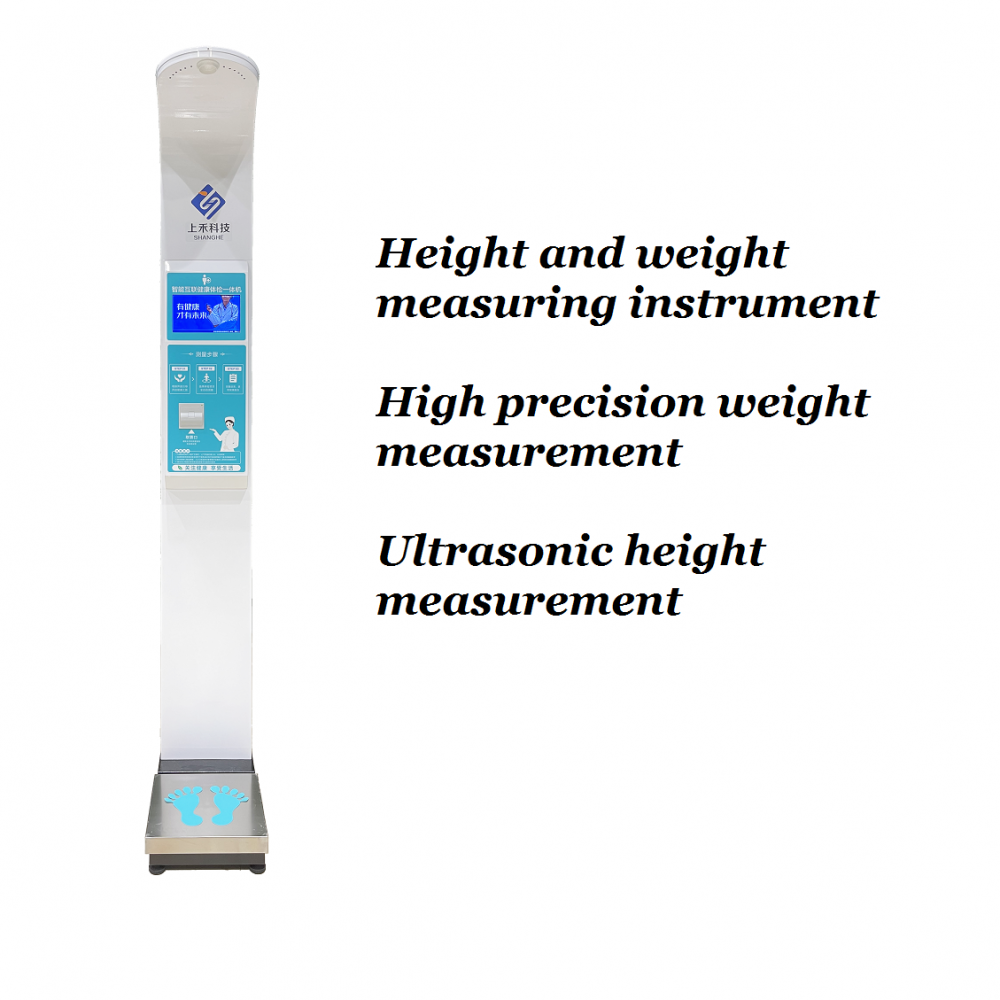

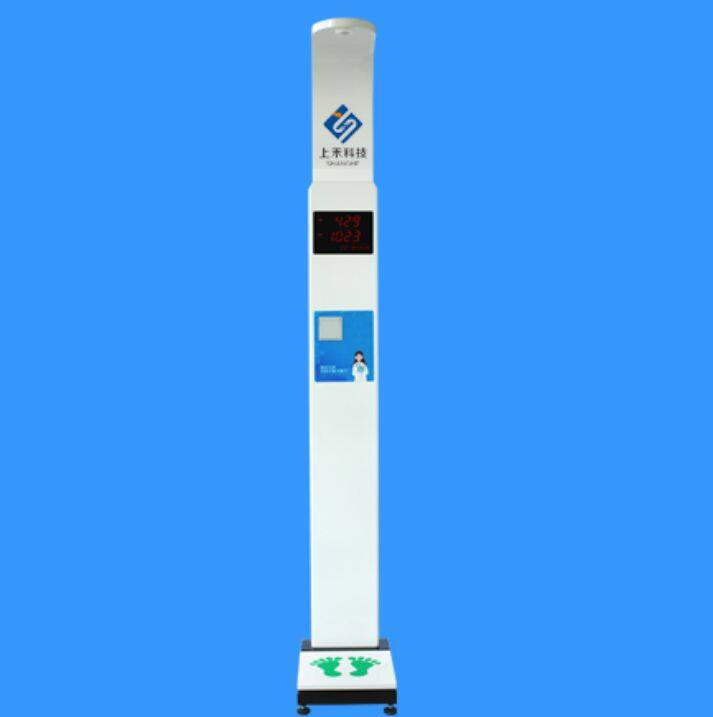

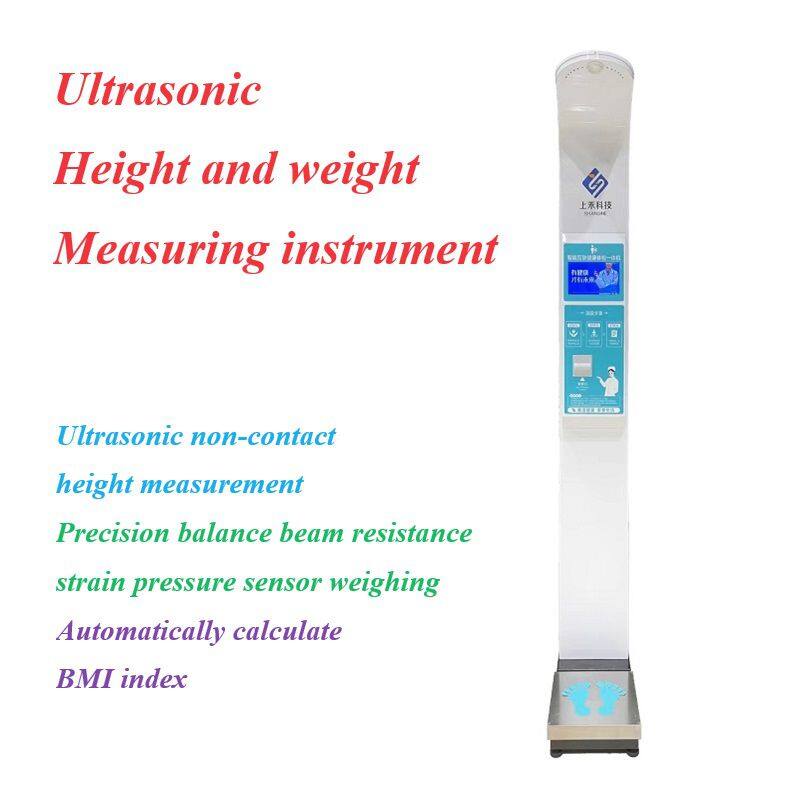

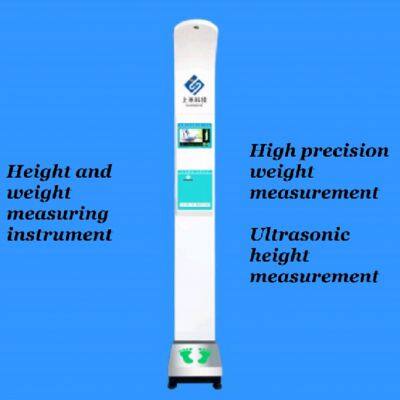

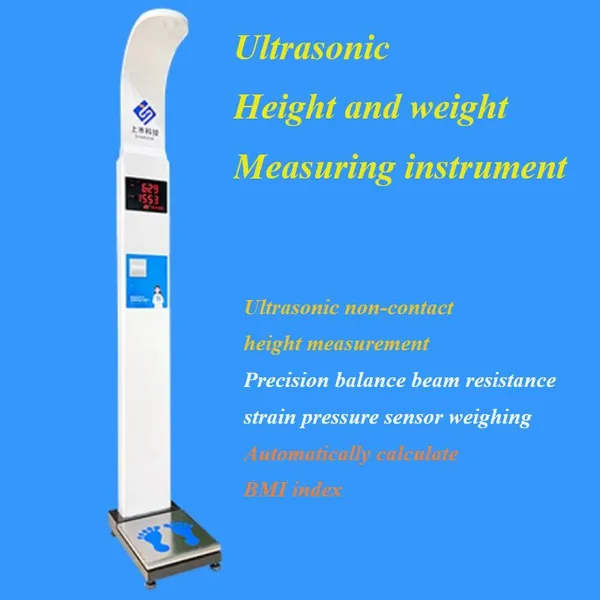

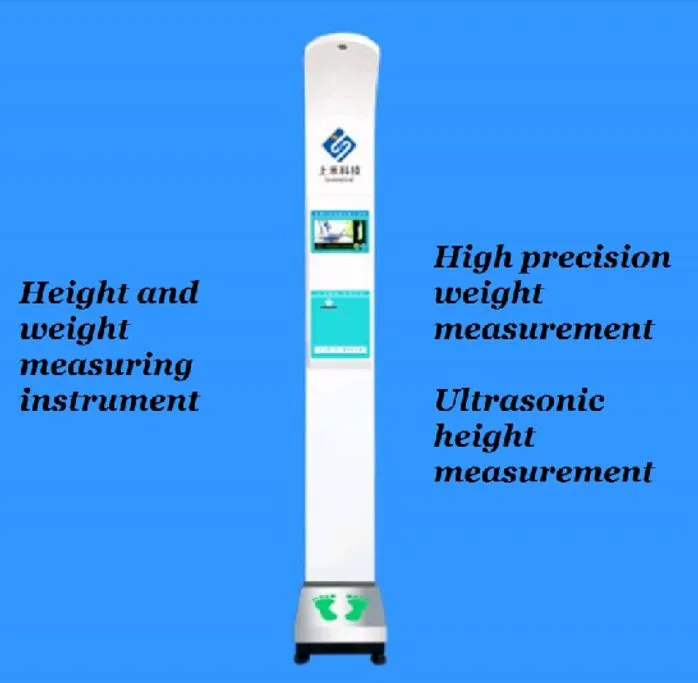

SH-500A  intelligent ultrasonic height and weight measuring instrument

Product features: ultrasonic non-contact height measurement, clean, sanitary, fast measurement speed and high measurement accuracy.

Data output format: provide RS232 interface and WiFi interface to facilitate users to access the hospital system or remote health system. The measurement results can be sent to the mobile phone and provide health suggestions to facilitate users to pay attention to the impact of weight on health.

Body shape: automatically calculate BMI index, display and print results and BMI index range.

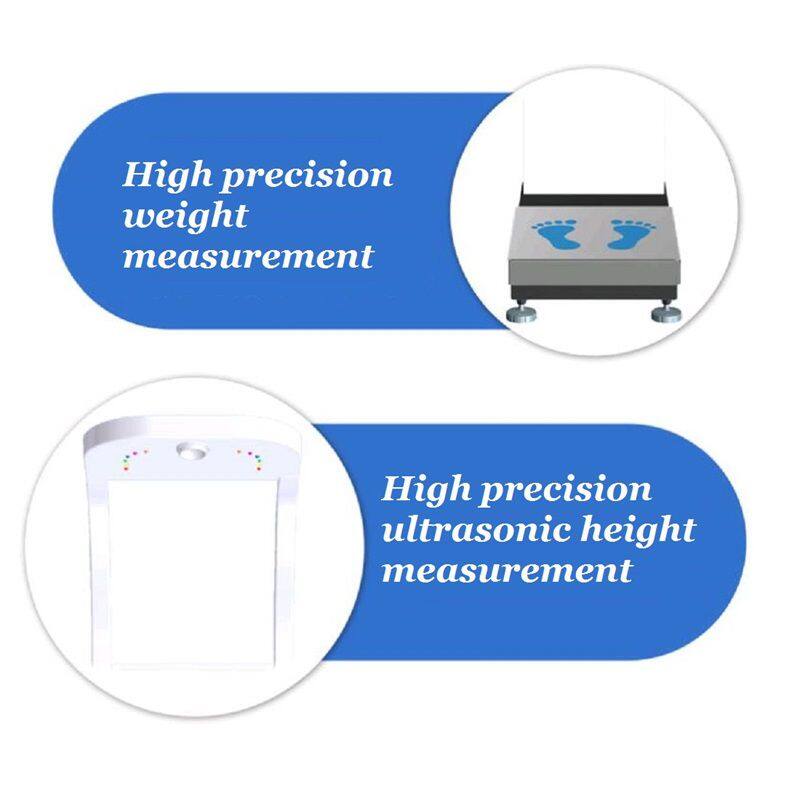

Weight measurement method: precision balance beam resistance strain type pressure sensor weighing.

Height measurement method: Ultrasonic Measurement Technology (high-precision ultrasonic sensor and temperature compensation function are adopted).

Height measurement range: 20-210cm, appraisal accuracy: 0.5m, division value: 0.5cm or 0.1cm adjustable.

Weighing range: 2.0-500kg, identification accuracy: 0.1kg, division value: 0.1kg or 0.01kg, adjustable.

BMI measurement: the normal range of 19-25 automatically calculates the BMI value, and the BMI range can be adjusted according to needs.

LCD display: 10.1-inch high-definition color LCD screen, large font, eye-catching and clear display, date, time and temperature, synchronization with the network, accurate time, display body shape: fat, normal and thin.

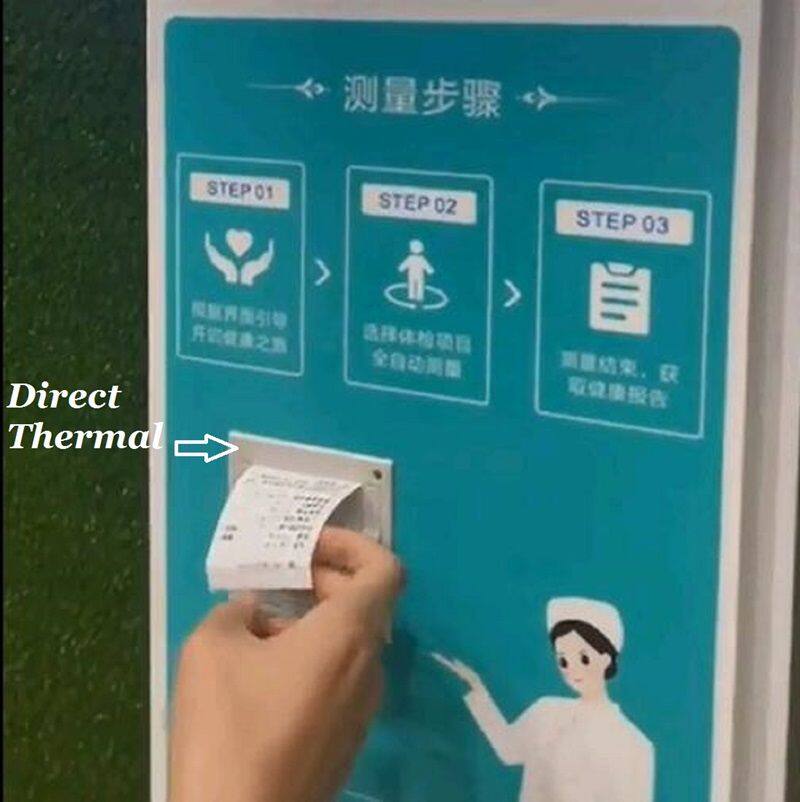

Printing function: the high-speed thermal and easy to install printer is adopted to automatically print the physical examination report, which is convenient for changing paper, print the height and weight, BMI, ideal weight and normal weight range, etc., and set the name of the user organization, such as XX Hospital.

Automatic voice broadcast: clear voice reports the measured value, and the customer can set the prompt voice according to the use situation, for example: welcome.

Data storage: it can store more than 1 million pieces of data and support USB flash disk export.

Measurement speed: 480 times / hour for fast and accurate measurement.

Multimedia advertising screen: 10.1-inch color HD LCD screen and Android 4.4 or above operating system are adopted. The name of the user can be set on the LCD screen, such as XX Hospital. It automatically circulates video, audio and pictures to promote health knowledge. The user can change the promotional film by himself, which is very convenient.

Power supply: AC100V-240V / 12V power supply is adopted.

Power consumption: standby 10W, average 15W during operation.

Working environment: temperature - 10 ℃ - 40 ℃, humidity: 20% - 85% pH.

Recommended: hospitals, schools, pharmacies, shopping malls / supermarkets, police stations, gyms and other institutions.

Certification: patent certificate, software copyright, 1s0-9001 quality management certification, CE certification, is0-45001 occupational health and safety certification, ISO-14001 environmental management certification.
