QMR4-15B High Capacity Red Brick Machine

Specifications

QMR4-15B high capacity red brick machine

QMR4-15B high capacity red brick machine information:

1. Area: Workshop area: 150-200m2, all factory area 2000m2, the bigger, the better.

2. Workers : five or six

3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

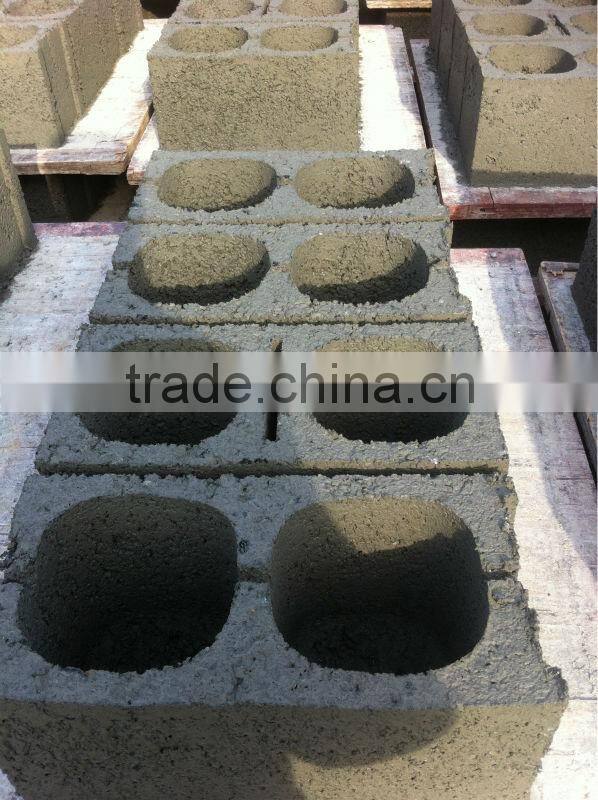

4.Hollow block weight:

(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5. Raw material consumption per day:100-110T

6. Water consumption per day:3%-5% of raw material .Weight.

QMR4-15B high capacity red brick machine guarantee:

We give our brick making machine one year guarantee,during the period we can supply spares if they are broken.

QMR4-15B high capacity red brick machine pressure:

Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a higt pressure,can be widely used.

QMR4-15B high capacity red brick machine Main technical parameter

QMR4-15B high capacity red brick machine Productivity Capacity

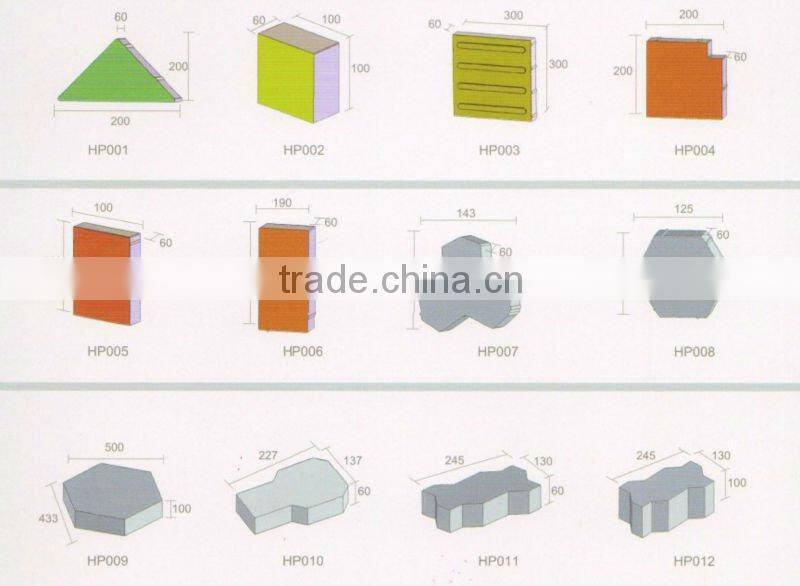

This machine can produce pavers. And the samples are as follow:

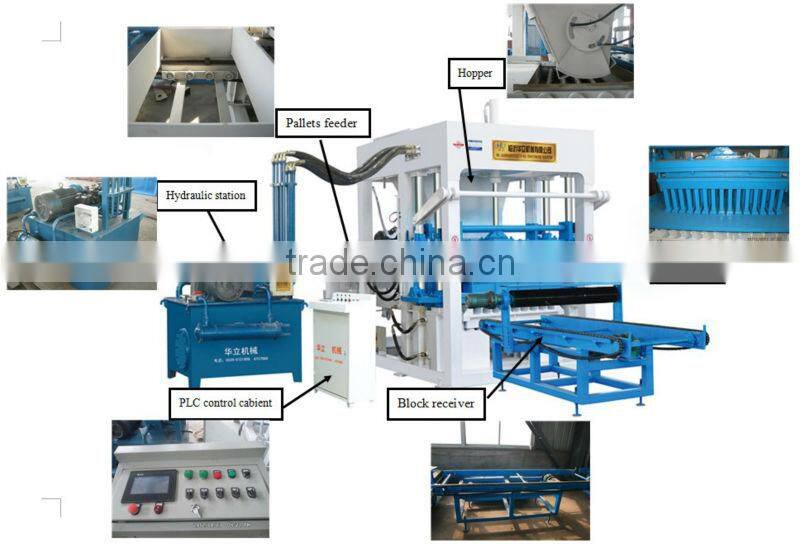

QMR4-15B high capacity red brick machine have the below advantages

1:Imported elector -hydraulic proportional control valves ,it can reduce the impacts to the machine ,prolong the working life.

2:Frequency conversion control technology is used , the speeds and pressures can be adjusted ,it will make the operation running smoothly and steady ,reduce the noises and impacts.

3:Equiped national standard steel.

4:The main section are treted by carburizing ,it is sturdy and wear resisting.

5:With trouble warning system,easy to find fault.

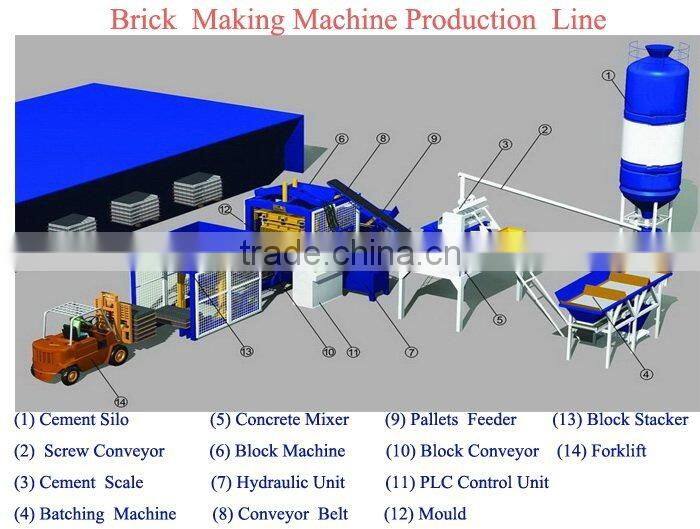

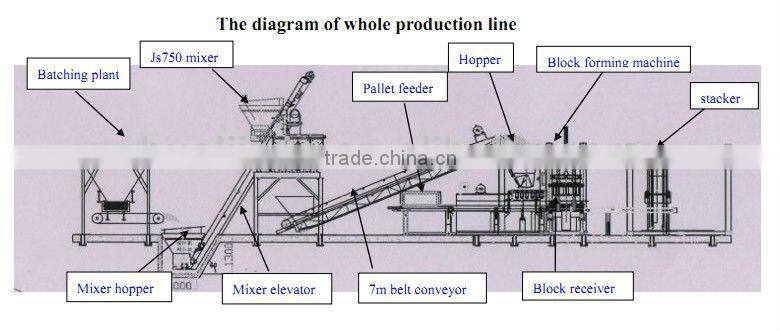

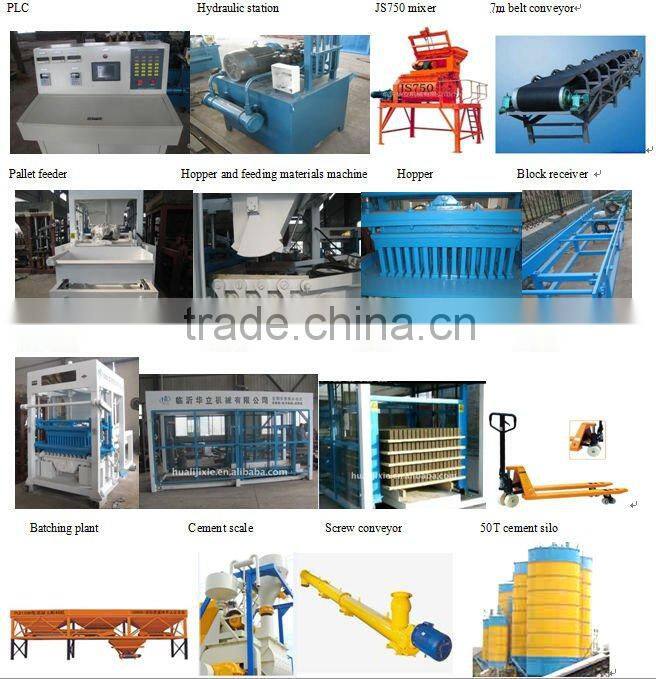

QMR4-15B high capacity red brick machine production line

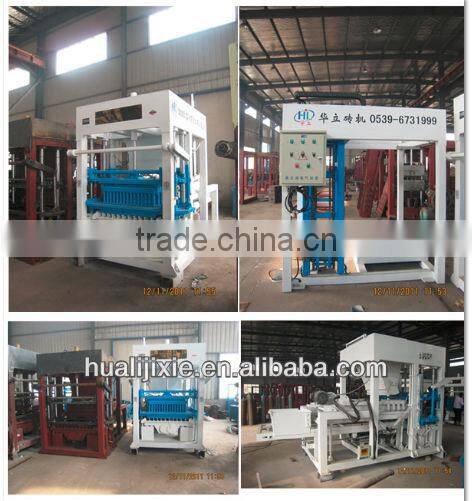

Our factory and some parts of our customers
