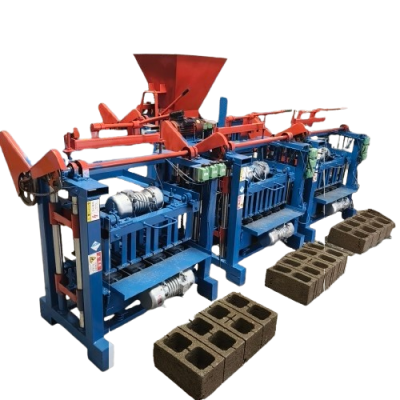

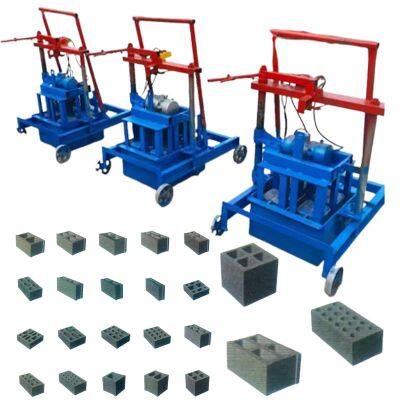

Transform construction waste into valuable building resources with our innovative eco-friendly brick making machine. Designed specifically for processing recycled materials, this advanced equipment enables construction companies to reduce environmental impact while creating durable, cost-effective building components. By converting demolition concrete, industrial byproducts, and other discarded materials into standardized bricks, this solution addresses both waste management challenges and sustainable construction needs.
Manufactured by Henan Panqi Heavy Industry Technology Co., Ltd. with extensive expertise in industrial machinery, this brick press combines robust engineering with environmental responsibility. The versatile system produces high-quality bricks meeting structural requirements while significantly reducing raw material costs and carbon footprint compared to conventional brick manufacturing methods.
Core Technical Advantages:
- Material Adaptability: Processes diverse recycled inputs including crushed concrete (up to 70% mix ratio), fly ash, slag, and quarry residues
- Precision Hydraulic System: Delivers consistent pressure up to 21 MPa for uniform brick density and strength
- Modular Design: Easily reconfigurable for different brick dimensions (standard options: 200×100×60mm - 400×200×100mm)
- Energy Recovery Technology: Recaptures hydraulic energy during decompression cycles, reducing power consumption by 15-20%
- Automated Material Feeding: Optional conveyor belt system for continuous operation with minimal manual handling
Performance Specifications
| Model | Output Capacity | Power Consumption | Cycle Time | Footprint |
|---|---|---|---|---|
| PQ-RM100 | 800-1000 bricks/hour | 7.5 kW | 20-25 seconds | 2.5×1.2×1.8m |
| PQ-RM200 | 1500-1800 bricks/hour | 11 kW | 15-18 seconds | 3.0×1.5×2.0m |
| PQ-RM300 | 2500-3000 bricks/hour | 18-22 kW | 10-12 seconds | 4.2×1.8×2.2m |
Each machine undergoes rigorous quality control with 72-hour continuous operation testing before shipment. The heavy-duty steel frame construction ensures stability during high-pressure operations, while the centralized lubrication system extends bearing life. Standard configurations include vibration-dampening mounts and safety interlocks on all moving components.
Operational Benefits
- Waste reduction: Diverts 8-12 tons of construction debris from landfills daily
- Cost efficiency: Lowers material costs by 30-45% compared to new aggregates
- LEED compliance: Contributes 7-12 points toward green building certifications
- Minimal training: Intuitive touchscreen controls with multilingual interface
For construction firms facing increasing environmental regulations and material costs, this recycling solution provides measurable ROI within 14-18 months of operation. The produced bricks achieve compressive strength ratings of 7-20 MPa depending on material composition, suitable for load-bearing and non-load-bearing applications in commercial and residential projects.
Frequently Asked Questions
Q1: What particle size can the machine process?
The system handles recycled aggregates up to 10mm in diameter. Larger materials require pre-crushing. The integrated screening mechanism separates oversized particles during feeding.
Q2: How does moisture content affect production?
Optimal water content ranges between 8-12%. The control panel includes moisture sensors that automatically adjust compaction pressure. Drier materials may require misting attachments.
Q3: What maintenance is required?
Daily lubrication and weekly hydraulic system checks. Major components have accessible service points. Typical maintenance consumes 1-2 hours weekly.
Q4: Can it produce interlocking bricks?
Yes, interchangeable molds allow production of various brick profiles. Custom mold development requires technical drawings and 4-6 weeks lead time.
Q5: Is technical support available?
Remote diagnostics via IoT module and on-site technician dispatch. Comprehensive manuals and video tutorials provided. Response time: 24 hours for critical issues.
Q6: What's the brick curing process?
Bricks achieve initial set in 24 hours at ambient temperature. Full strength develops over 28 days. Steam curing acceleration options available.
Sustainable Building Solution
This recycling technology represents the future of responsible construction, turning waste streams into structural assets. By implementing this system, builders gain competitive advantage through both cost management and environmental stewardship. The modular design allows scalability from small community projects to industrial-scale operations.
Contact our engineering team to discuss material testing protocols and site-specific configurations. With production facilities covering 10,000-30,000 square meters and global shipping experience, we ensure timely delivery and commissioning support worldwide. Request your customized production analysis today to calculate potential savings for your operation.
