Home > Products > Accessary Parts > Full automatic QT8-15A concrete brick making machinery

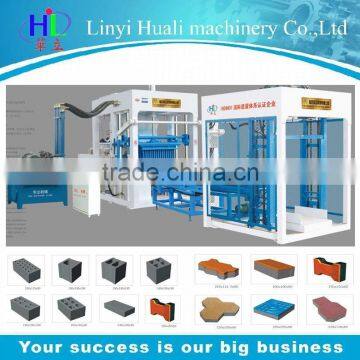

Full automatic QT8-15A concrete brick making machinery
- 30 Set / Sets per Month
- qingdao
- T/T L/C Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | block:18800pcs/day | Place of Origin: | Shandong, China | Brand Name: | hauli |
Model Number: | Full automatic QT8-15A concrete brick making machinery | Voltage: | 380v | Power: | 42.5KW |
Dimension(L*W*H): | 5250*2000*2900mm | Certification: | ISO9001/CE/BV | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Full automatic QT8-15A concrete brick making machinery1.use 10mm thick steel
mold
3.one year warranty free
Full automatic QT8-15A concrete brick making machinery
overall size | 9000*2060*2868mm |
molding cycle | 15-20S |
pallet size | 990*880*20mm |
weight | 13.5T |
rated power | 42.5KW |
Vibration force | 100KN |
Vibration frequency | 2850-4200/min |
Mixer Model | JS500 |
Item | specification | Quantity/Hour | Pcs/Mould |
concrete block | 390*190*190 | 1300-1400 | 8 |
solid block | 240*115*53 | 7560-8894 | 42 |
porous block | 240*115*90 | 3780-4420 | 21 |
|
|
3.QT8-15A concrete brick making machienry
1). Area: Workshop area: 350-400m2, all factory area 3000m2, the bigger, the better.
2). Workers : 5 or 6
3). Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4).Hollow block weight:
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5). Raw material consumption per day:100-110T
6). Water consumption per day:3%-5% of raw material weight.
4.QT8-15A concrete brick making machinery guarantee:
We give our block making machine one year guarantee,during the period we can supply spares if they are broken.
QT8-15A block machine detail showing:
Shipping & Payment Term |
1.FAST SHIPPING from our Linyi China Factory!
2.Delivery time: 15-20 working days after receive deposit.
3.Shipping Cost : Depending on the automatic interlocking brick machine size and weight of total order. 4.Accept the FOB/CIF/DAF terms of trade.
5.Payment Term: 30% deposit,70% balance by T/T, or by L/C. 6.B/L will be sent to you as soon as after delivery.
|
After Sales Service |
1.Free one year warranty and after service for whole life.
2.Free one set of enough good spare parts,Free technical,Installation and Machine MaintenanceTraining.
3.Free design installation drawing according to your condition.One to one service.
4.Supply all the documents as your request,in order to clear customs.
5.Your special requests are also welcomed for discussion.
|
FAQ |
1.Q:Can you make our size bricks? A:Yes,we can design different brick mould according to your size.
2.Q:How to sure your concrete block making machine quality? A:Our machine use strongth hight-strength steel structure, the total weight much bigger than others.The cement bricks making machines mould are all by heat treatment,can use thirty million times.
3.Q: How about your concrete block making machine price? A:The showing price is only a reference price.Please send us inquiry email,we will send you the newest brick machinery quotation.And will give you a best price according to the order quantity. |
