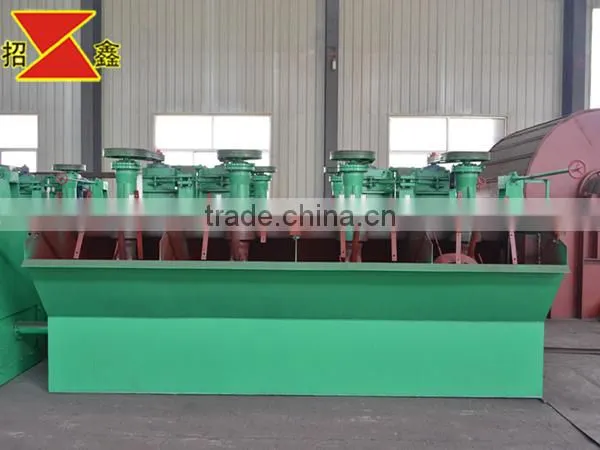

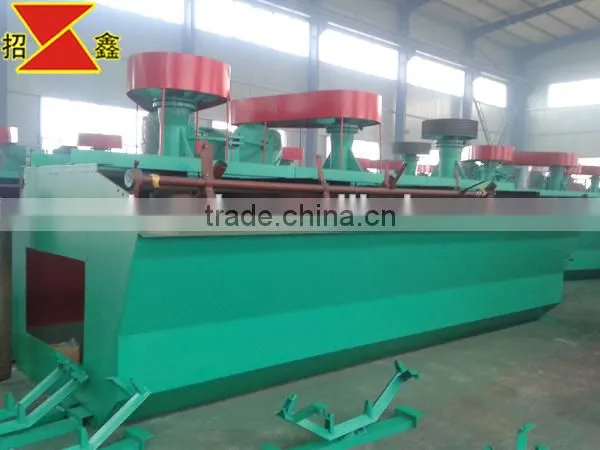

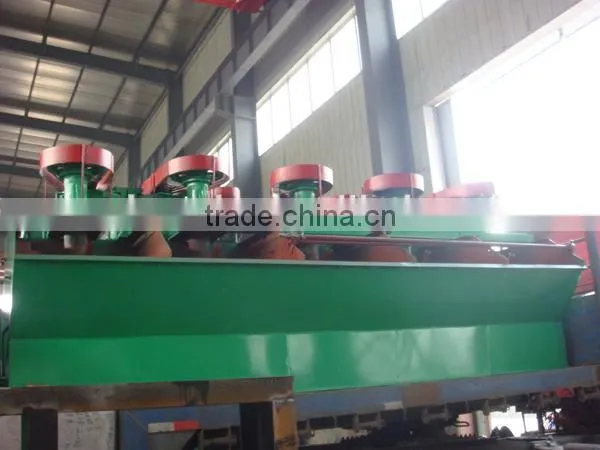

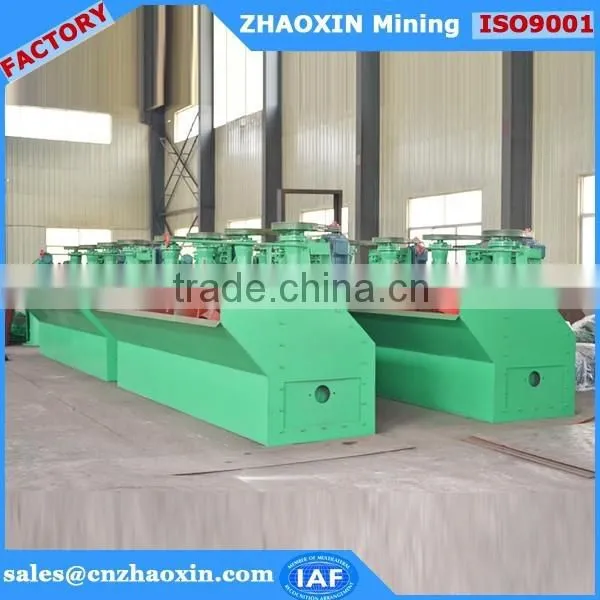

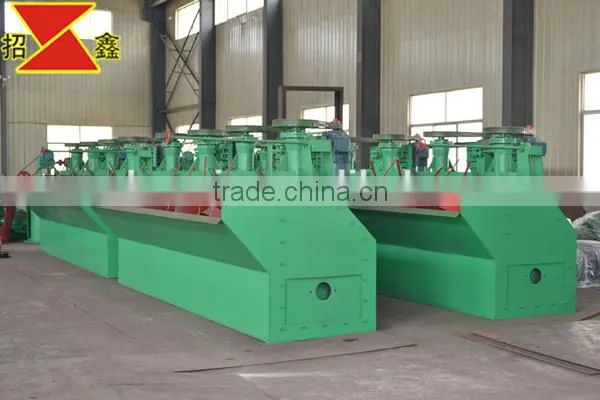

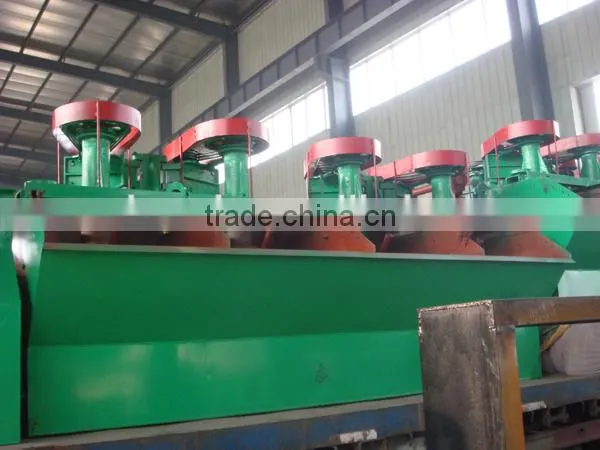

Gold mining machinery flotation mineral separator , flotation machine
1. This kind of flotation mineral separator can imbibe the air and ore pulp spontaneously, with a foreraking tank not liable to precipitation into the tank but facilitating returning of the foams.
2. Its double-blade impeller can agitate the coarse sand at the bottom adequately.
Features of flotation mineral separator
1. Large air suction amount, low energy consumption, horizontal arrangement, no foam pump required.
2. Low peripheral velocity of the impeller, long service life of the impeller cover plate, upper and lower double
of the ore pulp in a fixed way, which is conducive to the suspension of coarse grain minerals.
Technical parameters of flotation mineral separator
| Model | Effective volume(m³) |
Capacity(m³/min) | D of impeller(mm) | Impeller revolution(r.p.m) | Motor power for agitation(kw) | Motor power for scraper(kw) | Weight of single tank(kg) |
| SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 1.5 | 0.75 | 470 |
| SF-0.7 | 0.7 | 0.3-1.0 | 350 | 400 | 3 | 1.1 | 970 |
| SF-1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 5.5 | 1.1 | 1400 |
| SF-2.8 | 2.8 | 1.5-3.5 | 550 | 268 | 11 | 1.5 | 2242 |
| SF-4 | 4 | 2.0-4 | 650 | 235 | 15 | 1.5 | 2600 |
| SF-8 | 8 | 4.0-8 | 760 | 191 | 30 | 1.5 | 4292 |
| SF-16 | 16 | 5.0-16 | 850 | 169-193 | 45 | 1.5 | 7415 |
| SF-20 | 20 | 5.0-20 | 760 | 186 | 30*2 | 1.5 |
9823 |

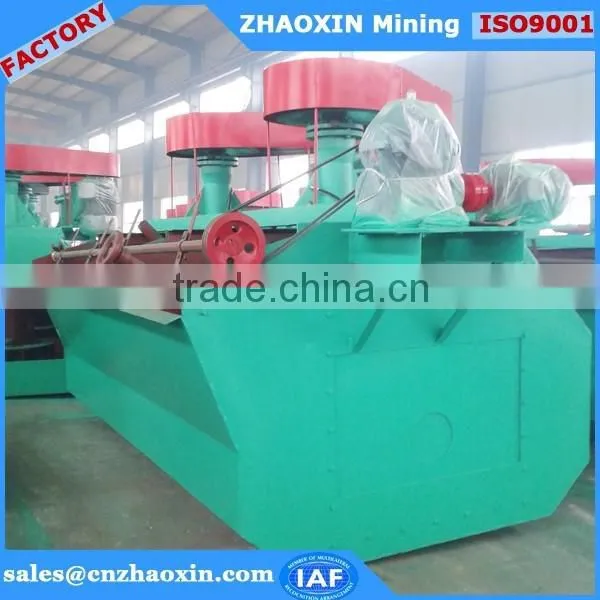

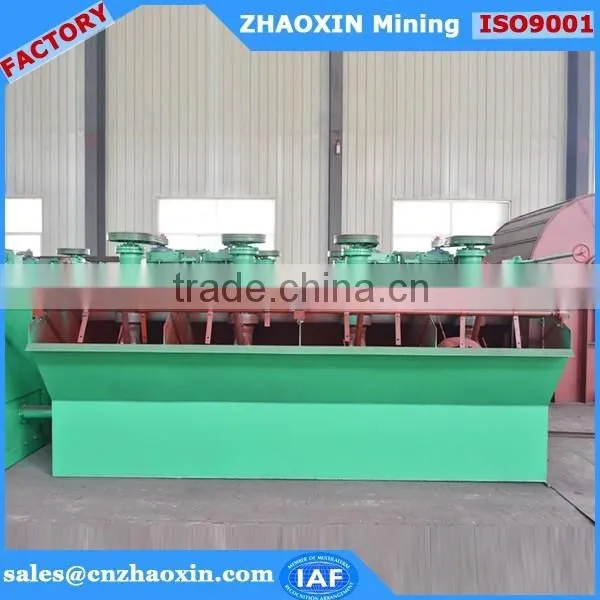

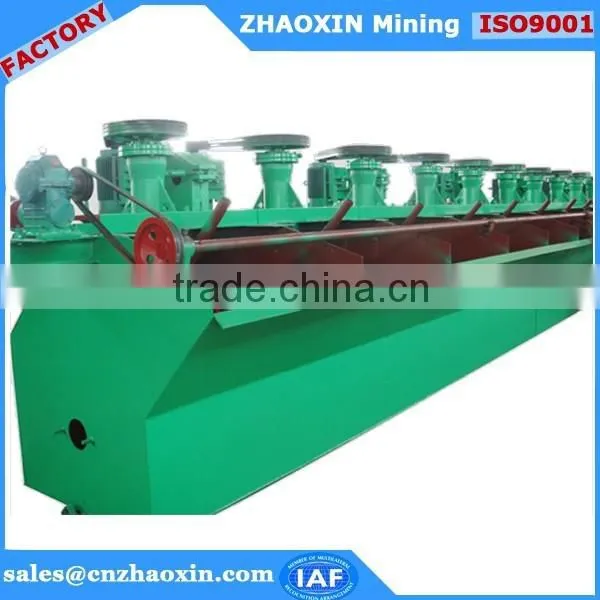

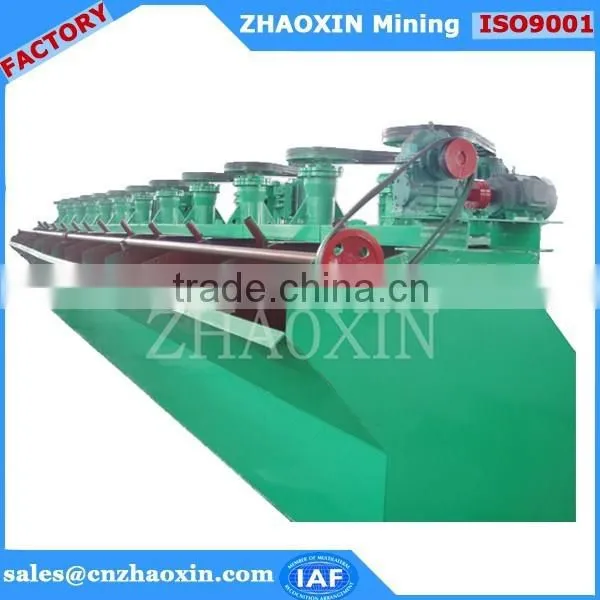

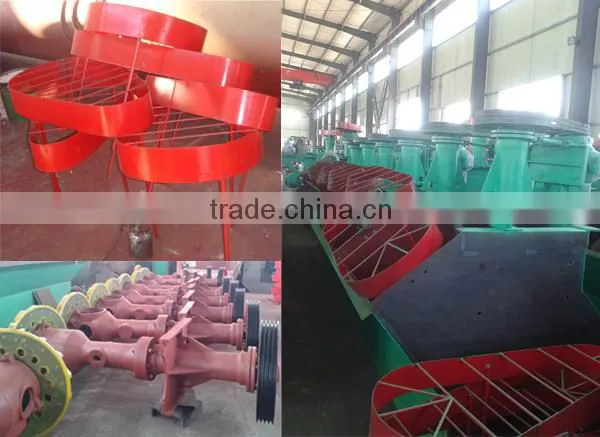

Detailed parts of flotation mineral separator

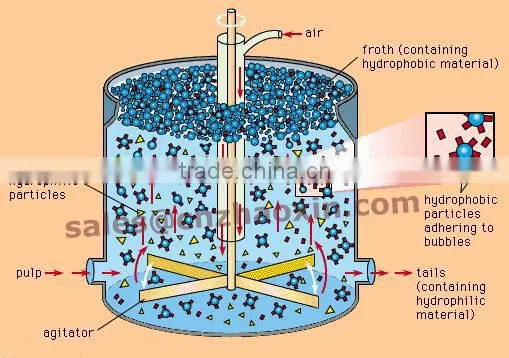

Working principle of flotation mineral separator
Flotation mineral separator takes advantage of the different physicochemical surface properties of minerals—in particular, their wettability, which can be a natural property or one artificially changed by chemical reagents. By altering thehydrophobic (water-repelling) or hydrophilic (water-attracting) conditions of their surfaces, mineral particles suspended in water can be induced to adhere to air bubbles passing through a flotation cell or to remain in the pulp. The air bubbles pass to the upper surface of the pulp and form a froth, which, together with the attached hydrophobic minerals, can be removed. The tailings, containing the hydrophilic minerals, can be removed from the bottom of the cell.
Safe shipment of flotation mineral separator
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. Depends on detailed product. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.
